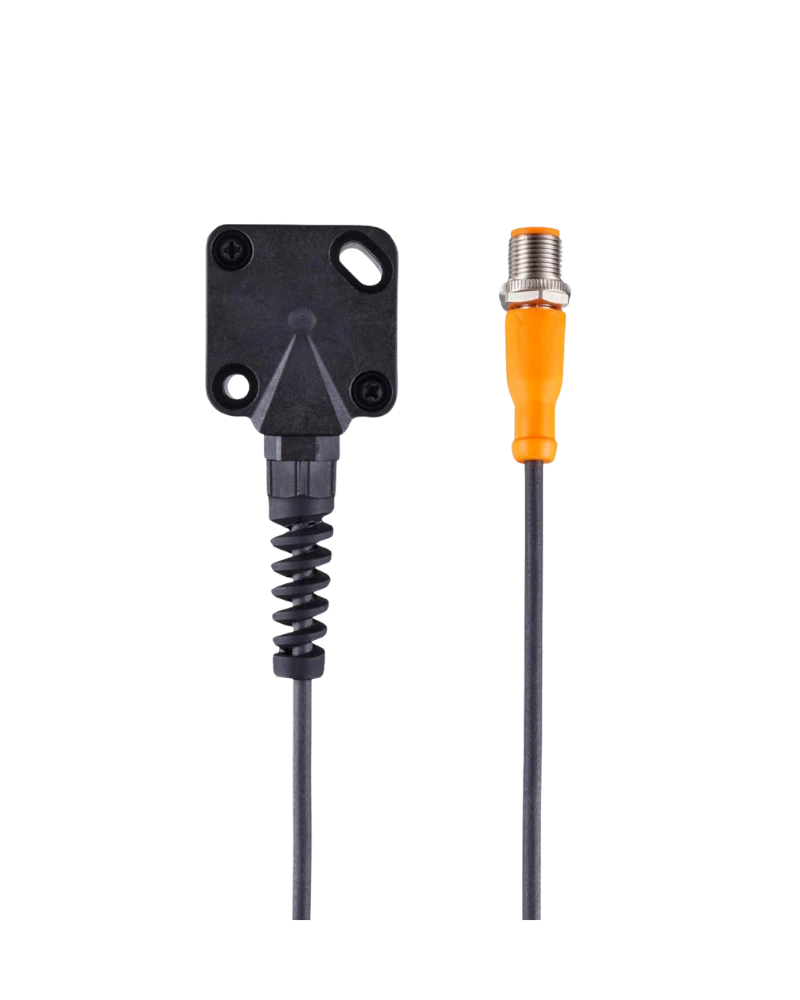

The EC2082 is an inclination sensor designed to measure angular position in industrial and mobile applications. It provides a 4–20 mA analogue output for convenient integration with control systems. The sensor offers single-axis measurement with an angular range of ±90°. It is suitable for monitoring inclination and position in mobile machinery and industrial automation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EC2082 is an R360 inclination sensor designed for accurate monitoring of angular position. It converts measured inclination into an analogue current signal for controller integration.
The sensor uses a single measurement axis with an angular range of ±90°. This makes it suitable for applications where machine or component inclination needs to be continuously monitored.
The 4–20 mA analogue output enables easy connection to compatible PLCs, controllers and automation systems. The output provides a standard signal for monitoring and control applications.
The EC2082 is designed for both static industrial applications and mobile applications, making it suitable for machinery where inclination feedback is important.
Single-axis inclination measurement
Angular range of ±90°
4–20 mA analogue output
20–30 V DC operating voltage
Maximum load up to 400 Ω
Suitable for static industrial applications
Suitable for mobile applications
Reliable inclination monitoring
Easy controller integration
Mobile machinery
Industrial automation systems
Machine inclination monitoring
Platform positioning
Vehicle control systems
Machine leveling applications
Angle monitoring systems
| Specification | Details |
|---|---|
| Product Code | EC2082 |
| Product Type | Inclination sensor |
| Model | R360/INCLINOMETER/4-20mA/II |
| Measurement Axes | 1 |
| Angular Range | ±90° |
| Output Signal | 4–20 mA |
| Analogue Outputs | 1 |
| Operating Voltage | 20–30 V DC |
| Maximum Load | 400 Ω |
| Application | Static industrial and mobile applications |
