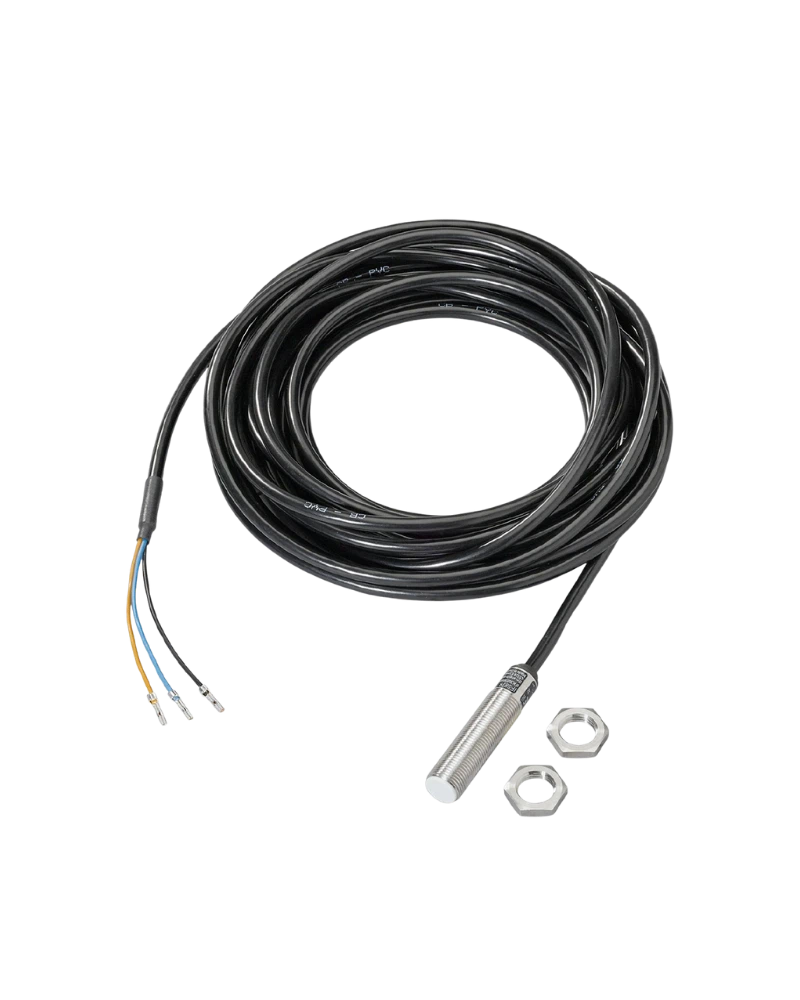

The IFM IF6041 is a compact inductive proximity sensor developed for reliable metallic object detection in industrial machinery and automation systems. Its threaded M12 × 1 housing provides straightforward installation, while the short housing design makes it suitable for applications with limited mounting space. The sensor combines a 2 mm sensing range with a high switching frequency of 1500 Hz for dependable and fast detection.

Key Features

• IFM IF6041 inductive proximity sensor
• Model: IFB3002-BPKG/0,8M/ZH
• 2 mm nominal sensing range
• Real sensing range: 2 ± 10%
• DC PNP electrical design
• Normally open (NO) output
• 10–36 V DC operating voltage
• 150 mA permanent switching current
• 1500 Hz switching frequency
• M12 × 1 threaded housing
• 38 mm housing length
• Flush-mountable installation
• 0.8 m PUR connection cable
• 3 × 0.34 mm² cable conductors
• Brass housing with white-bronze coating
• Polycarbonate active sensing face
• IP67 protection rating
• -25 °C to +80 °C ambient operating temperature
• Reverse-polarity protection
• Short-circuit protection
• Overload protection
• Yellow LED switching indication

Compact Housing for Industrial Installation

The IF6041 uses an M12 × 1 threaded housing with a length of approximately 38 mm. Its compact construction allows the sensor to be installed in machinery and automation equipment where available space is restricted.

Reliable Inductive Detection

The 2 mm sensing range allows the IF6041 to detect metallic targets without physical contact. This makes it suitable for machine position sensing, object presence detection, counting and automated equipment monitoring.

High-Speed Switching Performance

With a switching frequency of up to 1500 Hz, the sensor is suitable for applications requiring fast and repeatable detection. This high switching capability supports automated production equipment, conveyors and high-speed machine operations.

Robust Industrial Construction

The sensor features a durable metal housing with a white-bronze coating and a polycarbonate active face. Its IP67 protection rating helps protect the sensor against dust and water ingress, making it suitable for demanding industrial environments.

Electrical Performance

The IF6041 operates from 10–36 V DC and uses a PNP normally open output. It supports a permanent switching current of up to 150 mA and includes reverse-polarity, short-circuit and overload protection for reliable integration into industrial control systems.

0.8 m PUR Cable Connection

The integrated 0.8 m PUR cable provides a practical connection solution for industrial installations. The three-conductor cable supports straightforward integration with automation controllers, control panels and machine-control equipment.

Visual Switching Indication

A yellow LED provides clear visual indication of the switching status. This helps technicians during installation, commissioning, troubleshooting and routine machine maintenance.

Industrial Applications

The IF6041 is suitable for:

• Machine position detection
• Metallic object presence detection
• Automated assembly equipment
• Conveyor systems
• Material-handling machinery
• Machine-tool monitoring
• Object counting
• Factory automation equipment
• Industrial machinery
• Industrial Automation Components UAE

Why Choose IFM IF6041?

The IF6041 combines compact M12 construction, reliable 2 mm inductive sensing, high-speed 1500 Hz switching and robust IP67 protection. Its PNP normally open output and 0.8 m PUR cable make it a practical sensing solution for industrial automation, machine control and factory equipment.
