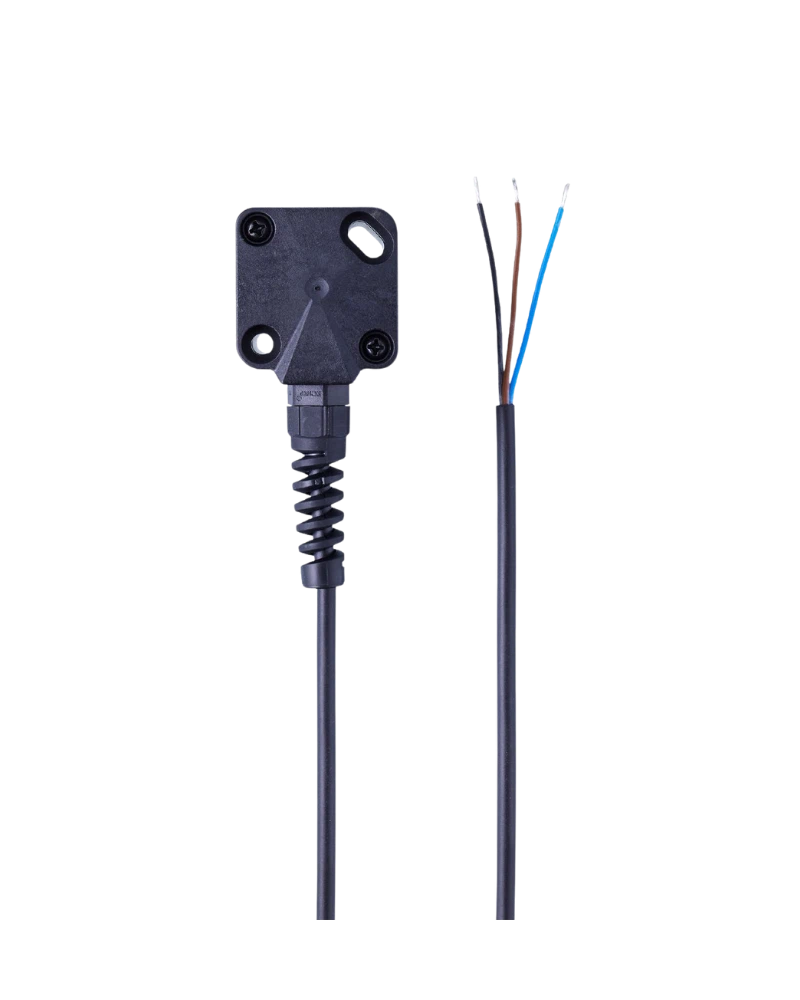

The IFM EC2045 inclination sensor is designed for measuring angular inclination in industrial and mobile applications. It provides a single-axis measurement with an angular range of ±90°. The sensor uses an analogue 0.5–4.5 V output and operates from an 8–30 V DC supply. Its robust construction and IP67 protection make it suitable for demanding machine environments
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EC2045 provides single-axis inclination measurement with an angular range of ±90°. It is suitable for monitoring machine orientation and angular position.
The sensor provides a 0.5–4.5 V analogue output signal, allowing the measured inclination value to be integrated into compatible control systems.
The sensor is designed for industrial and mobile applications and features IP67 protection. Its construction is suitable for environments exposed to vibration and mechanical shock.
The EC2045 can be used for machine position monitoring, mobile equipment inclination measurement and control-system applications where analogue angular feedback is required.
Single-axis inclination measurement
±90° angular range
0.5–4.5 V analogue output
8–30 V DC operating voltage
50000 Ω minimum load resistance
IP67 protection
Reverse polarity protection
Overload protection
Suitable for industrial applications
Suitable for mobile applications
Mobile machine inclination monitoring
Industrial equipment positioning
Machine orientation monitoring
Vehicle-mounted control systems
Automation control applications
Angular position measurement
| Specification | Details |
|---|---|
| Product Code | EC2045 |
| Product Type | Inclination Sensor |
| Model | R360/INCLINOMETER/0,5-4,5 |
| Measurement Axes | 1 |
| Angular Range | ±90° |
| Analogue Output | 0.5–4.5 V |
| Operating Voltage | 8–30 V DC |
| Minimum Load Resistance | 50 kΩ |
| Protection Rating | IP67 |
| Ambient Temperature | -30 to +85 °C |
| Cable | 3.5 m PUR |
| Manufacturer | IFM |
