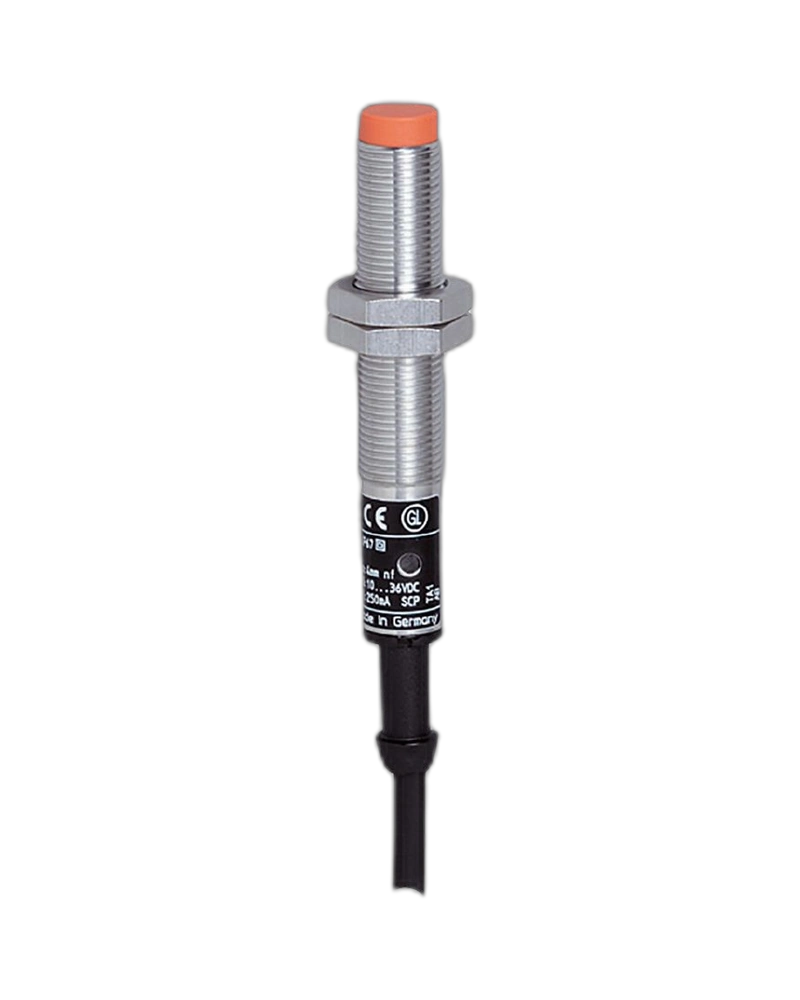

The IFM IF6036 is a compact inductive proximity sensor designed for precise non-contact detection of metallic objects in industrial automation applications. It offers a 2 mm sensing range, PNP normally-open output, V4A stainless-steel housing, 2 m PVC cable and IP67 protection for reliable machine and position monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IF6036 inductive sensor is engineered for accurate metallic object detection and position monitoring in industrial machinery and factory automation systems. Its robust V4A stainless-steel housing, flush-mounting design and high 1200 Hz switching frequency make it suitable for applications requiring fast and dependable sensing.
• IFM IF6036 inductive proximity sensor
• Model: IFK3002-BPKG/V4A
• 2 mm nominal sensing range
• Real sensing range: 2 ± 10% mm
• Guaranteed sensing range: 0–1.6 mm
• Non-contact metallic object detection
• DC PNP electrical design
• Normally-open output
• 10–36 V DC operating voltage
• 1200 Hz switching frequency
• 250 mA switching output current
• M12 × 1 threaded housing
• Flush-mounting construction
• V4A stainless-steel housing
• PBT sensing face material
• 2 m PVC connection cable
• 3 × 0.34 mm² cable conductors
• IP67 protection rating
• -25 °C to +80 °C ambient operating temperature
• Yellow LED switching-status indication
• Reverse-polarity protection
• Short-circuit protection
• Overload protection
The IF6036 uses inductive sensing technology to detect metallic objects without physical contact. Its 2 mm sensing range and flush-mounting configuration support reliable position and presence detection on automated machinery.
With a switching frequency of up to 1200 Hz, the IF6036 is suitable for fast-moving automation processes, counting applications and machine position monitoring where rapid sensor response is required.
The sensor features a durable V4A stainless-steel housing designed for demanding industrial environments. The M12 × 1 threaded construction provides secure installation, while the compact cylindrical form allows convenient integration into machinery.
The IF6036 uses a DC PNP normally-open output and operates from 10–36 V DC. It is supplied with a 2 m PVC cable containing three 0.34 mm² conductors, allowing straightforward connection to compatible PLCs and industrial control systems.
The sensor provides IP67 protection and includes reverse-polarity, short-circuit and overload protection. A yellow LED provides clear switching-status indication for installation, commissioning and troubleshooting.
The IF6036 is suitable for machine position detection, metallic object presence sensing, counting, production equipment, material handling and factory automation systems. It is a reliable choice for Industrial Sensors, Proximity Sensors and Industrial Automation Components UAE.
• Accurate 2 mm inductive sensing
• High 1200 Hz switching frequency
• Durable V4A stainless-steel construction
• Flush-mounting installation
• 2 m PVC connection cable
• IP67 protection for industrial environments
• Wide 10–36 V DC operating range
• Clear yellow LED switching indication
• Suitable for high-speed machine automation
| Specification | Details |
| Product | IF6036 |
| Manufacturer | IFM |
| Model | IFK3002-BPKG/V4A |
| Sensor Type | Inductive proximity sensor |
| Sensing Principle | Inductive |
| Nominal Sensing Range | 2 mm |
| Real Sensing Range | 2 ± 10% mm |
| Guaranteed Sensing Range | 0–1.6 mm |
| Electrical Design | DC PNP |
| Output Function | Normally open (NO) |
| Operating Voltage | 10–36 V DC |
| Current Consumption | <15 mA |
| Switching Frequency | 1200 Hz |
| Switching Output Current | 250 mA |
| Maximum Voltage Drop | <2.5 V |
| Housing Thread | M12 × 1 |
| Mounting | Flush |
| Housing Material | V4A stainless steel (1.4571 / 316Ti) |
