The IFM IF6038 inductive proximity sensor, model IFB3002-BPKG/V4A/0,4M/ZH, is a compact M12 sensor designed for reliable non-contact detection of metallic objects in industrial automation systems. With a 2 mm sensing range, PNP normally open output, stainless-steel housing, 0.4 m connection cable and IP67 protection, it is well suited for machine detection, positioning and factory automation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

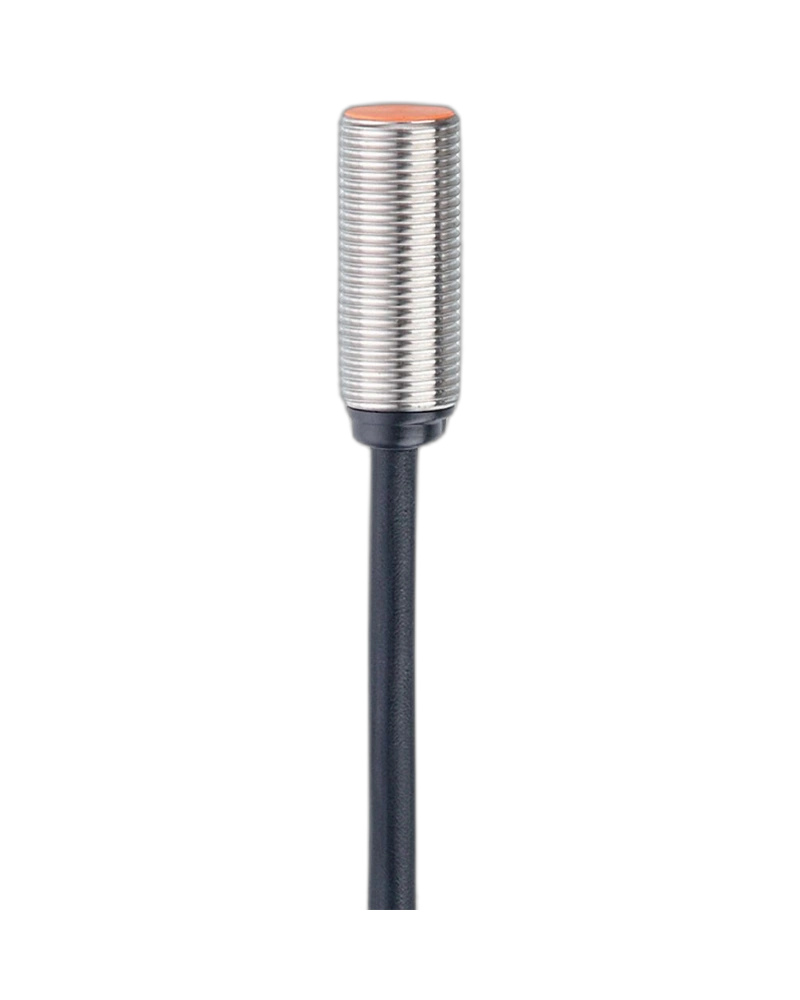

The IFM IF6038 is a compact inductive proximity sensor engineered for dependable detection of metallic objects without physical contact. Its M12 × 1 threaded design and short housing make it suitable for space-constrained machine installations, while its stainless-steel construction provides durability for demanding industrial environments.
• IFM IF6038 inductive proximity sensor
• Model: IFB3002-BPKG/V4A/0,4M/ZH
• 2 mm nominal sensing range
• Real sensing range: 2 ± 10%
• Guaranteed sensing range: 0–1.6 mm
• Non-contact detection of metallic objects
• DC PNP electrical design
• Normally open output function
• 10–30 V DC operating voltage
• 1200 Hz switching frequency
• 100 mA permanent switching current
• M12 × 1 threaded housing
• Approx. 31.5 mm housing length
• Flush mounting
• 0.4 m PUR connection cable
• 3 × 0.34 mm² cable conductors
• Stainless-steel housing
• PBT sensing face
• IP67 protection rating
• -20 °C to +70 °C ambient operating temperature
• Reverse-polarity protection
• Short-circuit protection
• Overload protection
• Yellow LED switching indication
The IF6038 features a compact M12 × 1 threaded housing that allows easy installation in machinery, automation equipment and areas where mounting space is limited. Its flush-mountable design supports clean and practical sensor integration.
With a nominal sensing range of 2 mm, the sensor provides consistent non-contact detection of metallic targets. The 1200 Hz switching frequency makes it suitable for fast machine-positioning, presence-detection and counting applications.
The stainless-steel housing is designed for demanding industrial applications. Combined with a PBT sensing face and IP67 protection, the IF6038 provides reliable resistance against dust and water exposure during normal industrial operation.
The sensor operates from 10–30 V DC and provides a PNP normally open switching output. Its 100 mA permanent switching current makes it suitable for integration with industrial control systems, automation controllers and machine-control applications.
Integrated reverse-polarity, short-circuit and overload protection helps protect the sensor and connected equipment. A yellow LED provides convenient visual confirmation of the sensor's switching status during commissioning and maintenance.
The 0.4 m PUR cable provides a compact connection solution for installations where a shorter cable length is preferred. The three-conductor cable design supports straightforward connection to industrial automation and control equipment.
The IF6038 can be used for:
• Machine position detection
• Metallic object presence detection
• Automated assembly systems
• Conveyor systems
• Machine-tool monitoring
• Factory automation equipment
• Object counting applications
• Industrial machinery
• Automated material-handling systems
• Industrial Automation Components UAE
The IF6038 combines compact M12 construction, reliable 2 mm inductive sensing, fast switching and robust stainless-steel construction. Its IP67 protection and integrated electrical protection features make it a practical choice for machine automation and industrial sensing applications in demanding operating environments.
| Specification | Details |
| Product Type | Inductive Proximity Sensor |
| Manufacturer | IFM |
| Part Number | IF6038 |
| Model | IFB3002-BPKG/V4A/0,4M/ZH |
| Sensor Type | Inductive |
| Sensing Range | 2 mm |
| Real Sensing Range (Sr) | 2 ± 10% mm |
| Guaranteed Sensing Range | 0–1.6 mm |
| Electrical Design | DC PNP |
| Output Function | Normally Open (NO) |
| Operating Voltage | 10–30 V DC |
| Permanent Switching Current | 100 mA |
| Switching Frequency | 1200 Hz |
| Housing Design | Threaded |
| Thread | M12 × 1 |
| Housing Length | Approx. 31.5 mm |
| Mounting | Flush |
