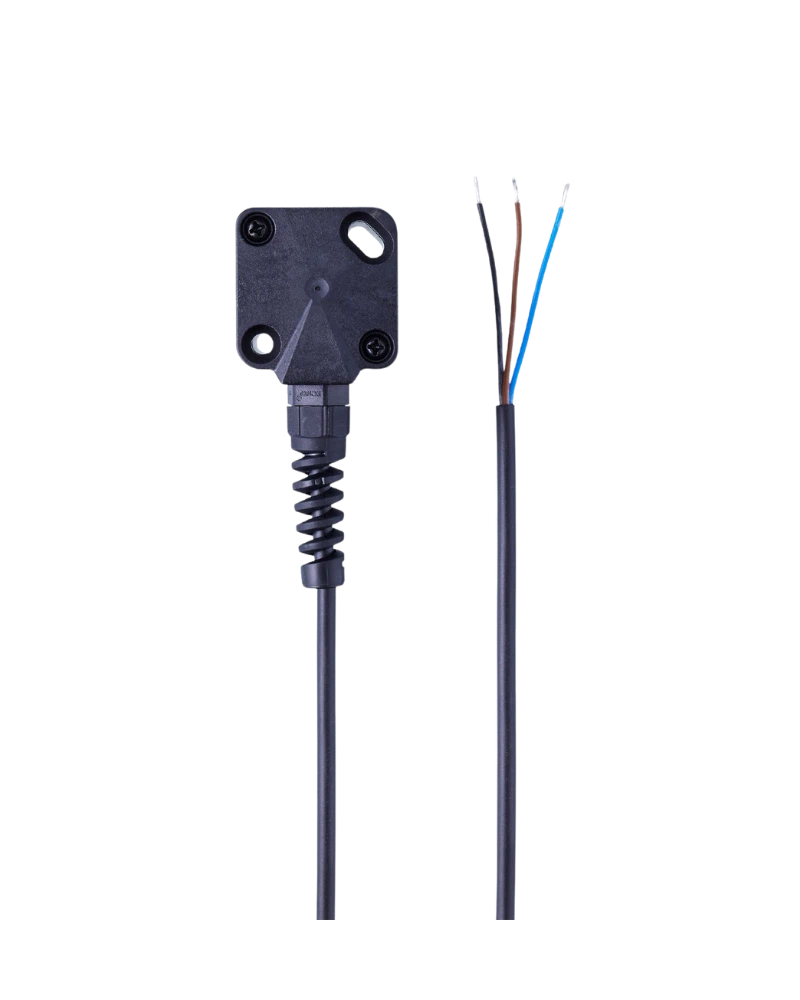

EC2019 is an IFM R360 inclination sensor designed to measure angular inclination in mobile machinery and industrial applications. It provides a 0–10 V analogue output and supports an angular range of ±90°. The sensor operates from 15–30 V DC and uses a PUR cable for electrical connection. Its robust design makes it suitable for machine-position and inclination monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
Product Overview
EC2019 is an inclination sensor designed for static and mobile applications where accurate angular position monitoring is required. It provides an analogue voltage signal proportional to the measured inclination.
Measurement Performance
The sensor provides single-axis inclination measurement over an angular range of ±90°. Its analogue output ranges from 0 to 10 V for convenient integration with compatible control systems.
Electrical Design
EC2019 operates from a 15–30 V DC supply and provides one analogue output. The sensor uses a PUR cable connection for reliable installation in machine environments.
Application Performance
The inclination sensor is suitable for mobile machinery, industrial equipment, machine-position monitoring and control systems requiring analogue inclination measurement.
Key Features
ifm R360 inclination sensor
Single-axis inclination measurement
Angular range of ±90°
0–10 V analogue output
15–30 V DC operating voltage
PUR cable connection
Static and mobile application capability
0.1° repeatability
Compact sensor design
Suitable for machine inclination monitoring
Applications
Mobile machinery
Industrial automation systems
Machine inclination monitoring
Vehicle control systems
Construction equipment
Agricultural machinery
Machine positioning
Industrial control systems
| Specification | Details |
|---|---|
| Product Code | EC2019 |
| Product Type | Inclination sensor |
| Series | R360 |
| Designation | R360/INCLINOMETER/0-10V |
| Measurement Axes | 1 |
| Angular Range | ±90° |
| Operating Voltage | 15–30 V DC |
| Output | Analogue |
| Analogue Output | 0–10 V |
| Repeatability | 0.1° |
| Cable | PUR cable |
| Cable Length | 3.5 m |
| Dimensions | Approx. 40.5 × 40.5 × 52.2 mm |
| Ambient Temperature | -30 °C to +85 °C |
| Mounting | M5 cylinder bolts |
| Manufacturer | IFM |
