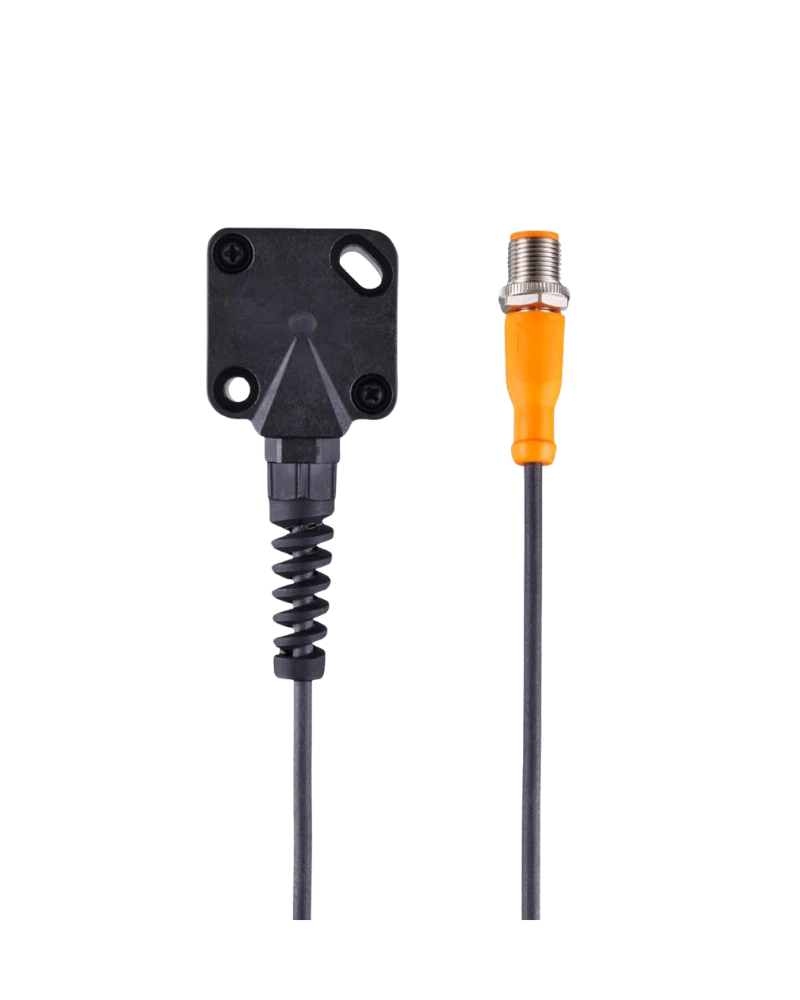

The IFM EC2060 inclination sensor provides single-axis angular measurement for industrial and mobile machine applications. It features a ±20° measuring range and provides a 4–20 mA analogue output signal. The sensor operates from an 11–15 V DC supply and supports integration with analogue control inputs. It is designed for reliable inclination monitoring in machine-control applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The EC2060 measures inclination along one measurement axis with an angular range of ±20°. This makes it suitable for monitoring machine position and orientation.
The sensor provides a 4–20 mA analogue output, allowing the inclination measurement to be transmitted to compatible PLCs, controllers and analogue input modules.
The EC2060 operates from an 11–15 V DC supply and provides overload protection for dependable operation in control-system environments.
The sensor is suitable for mobile machines, industrial equipment and automation applications where continuous analogue inclination feedback is required.
Single-axis inclination measurement
±20° angular range
4–20 mA analogue output
11–15 V DC operating voltage
400 Ω maximum load
Overload protection
Reverse polarity protection
Designed for mobile applications
Suitable for industrial applications
Continuous analogue measurement
Mobile machine inclination monitoring
Industrial machine positioning
Vehicle orientation monitoring
Hydraulic equipment
Machine automation
Analogue control systems
| Specification | Details |
|---|---|
| Product Code | EC2060 |
| Product Type | Inclination Sensor |
| Model | R360/INCLINOMETER/4-20mA |
| Measurement Axes | 1 |
| Angular Range | ±20° |
| Output Signal | 4–20 mA |
| Operating Voltage | 11–15 V DC |
| Maximum Load | 400 Ω |
| Protection | Reverse polarity and overload protection |
| Application | Industrial and mobile applications |
| Manufacturer | IFM |
