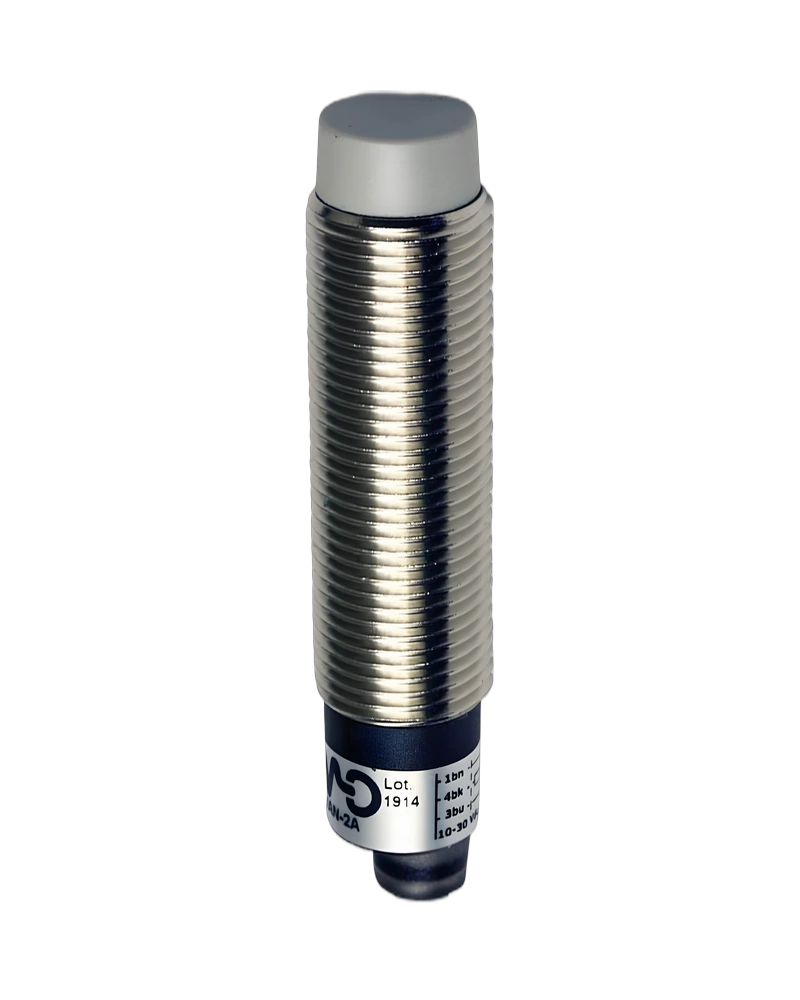

VT2/A0-2H is an m30 ac inductive proximity sensor for metal-target detection. The specified operating range or reference distance is 20 mm. The output is NO. The supply is 20…250 VAC, 50–60 Hz. The connection is M12 connector. The housing is Nickel-plated brass.
The sensing distance is 20 mm. Shielding is Unshielded.
The specified value of 20 mm gives the reference distance or measurement envelope for the device.
The supply is 20…250 VAC, 50–60 Hz. The supply is 2-wire AC. The output is NO. The maximum load current is 5…300 mA. The switching frequency is 25 Hz.
The supply of 20…250 VAC, 50–60 Hz defines the required operating voltage. The NO output defines the switching or signal arrangement. The switching frequency is 25 Hz.
The housing is Nickel-plated brass. The connection is M12 connector. Protection is rated IP67. The operating temperature range is -25…+70 °C.
The Nickel-plated brass housing provides the specified mechanical format. The M12 connector connection provides the stated physical interface. Protection is rated IP67. The ambient temperature range is -25…+70 °C.
The sensor type is M30 AC inductive proximity sensor. The target material is Ferrous metal / FE360 reference. The sensing distance is 20 mm. Shielding is Unshielded. The output is NO. The supply is 2-wire AC. The supply is 20…250 VAC, 50–60 Hz. The maximum load current is 5…300 mA. The switching frequency is 25 Hz. The led is Yellow.
VT2/A0-2H combines the m30 ac inductive proximity sensor characteristics given in the product specification. The sensor type is M30 AC inductive proximity sensor. The sensing distance is 20 mm. The connection is M12 connector. The housing is Nickel-plated brass. Protection is rated IP67. Shielding is Unshielded. These technical values describe the sensing, electrical and mechanical properties of VT2/A0-2H.
| Specification | Value |
|---|---|
| Model | VT2/A0-2H |
| Sensor type | M30 AC inductive proximity sensor |
| Target material | Ferrous metal / FE360 reference |
| Sensing distance | 20 mm |
| Shielding | Unshielded |
| Output logic | NO |
| Electrical system | 2-wire AC |
| Operating voltage | 20…250 VAC, 50–60 Hz |
| Load current | 5…300 mA |
| Switching frequency | 25 Hz |
| LED | Yellow |
| Protection | IP67 |
| Connection | M12 connector |
| Housing | Nickel-plated brass |
| Ambient temperature | -25…+70 °C |
