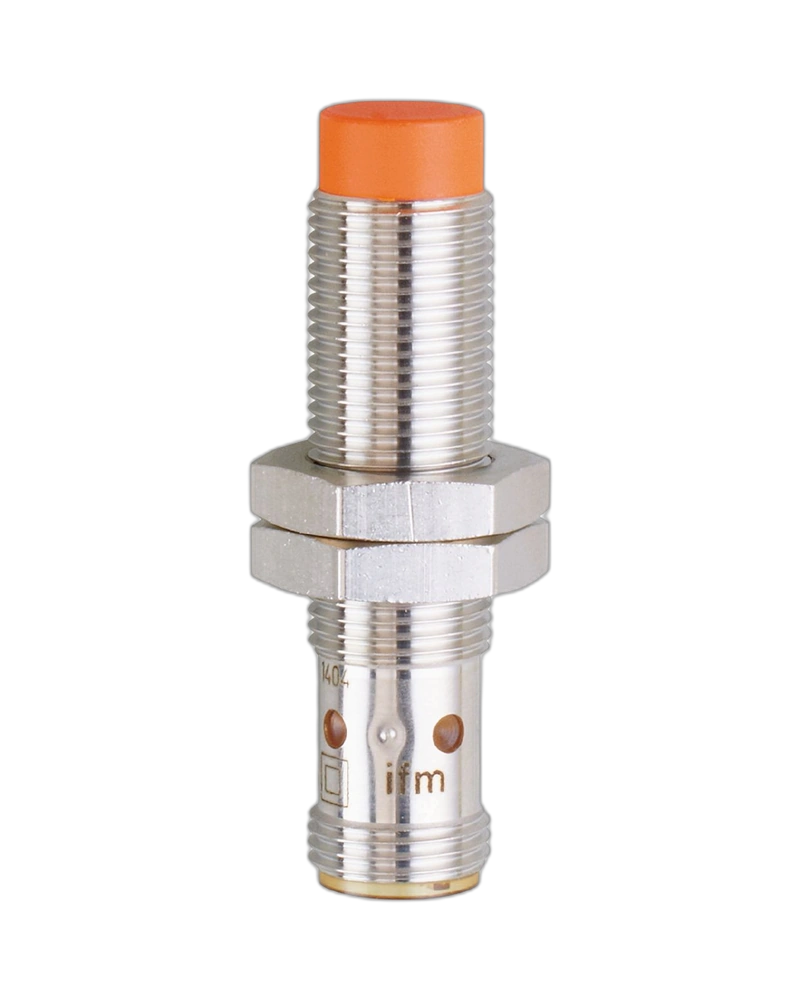

The IFM IF6033 is a compact M12 inductive proximity sensor designed for reliable non-contact detection of metallic objects in industrial automation applications. It features a 4 mm sensing range, DC PNP normally-open output, 2 kΩ internal pull-down resistor, and M12 connector for dependable machine and process monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM IF6033 inductive proximity sensor is designed for reliable metal detection and position sensing in demanding industrial automation environments. Its threaded M12 × 1 metal housing, 4 mm sensing range, and non-flush mounting design make it suitable for machine tools, material handling equipment, production lines, and factory automation systems.
• 4 mm inductive sensing range
• DC PNP electrical design
• Normally-open switching output
• 9–32 V DC operating voltage
• 2 kΩ internal pull-down resistor
• 200 Hz switching frequency
• M12 × 1 threaded metal housing
• M12 connector with gold-plated contacts
• Non-flush mounting
• IP67 protection rating
• Yellow LED switching-status indication
• Reverse-polarity protection
• Short-circuit protection
• Overload protection
• Oil-resistant potting for demanding applications
• 50 mm overall housing length
• Suitable for industrial automation and machine applications
The IF6033 provides a nominal sensing range of 4 mm, with a real sensing range of 4 ± 10% and a guaranteed operating distance of 0–3.25 mm. Its 200 Hz switching frequency supports dependable detection of metallic objects in automated machinery and production processes.
This sensor uses a DC PNP normally-open output and operates from 9–32 V DC. The integrated 2 kΩ pull-down resistor helps support reliable signal handling in compatible control circuits. The sensor also incorporates reverse-polarity, short-circuit, and overload protection.
The IF6033 features an M12 × 1 threaded metal housing with a 50 mm length and non-flush mounting configuration. Gold-plated contacts and oil-resistant construction make it suitable for demanding industrial environments, including machine tools and metalworking applications.
The sensor is suitable for metallic object detection, machine position monitoring, component presence detection, counting applications, and automated production equipment. It can be integrated with compatible PLCs, controllers, and other Industrial Automation Components UAE.
With IP67 protection and protective electrical functions, the IF6033 is designed for dependable operation in industrial environments. The yellow LED provides convenient switching-status indication for installation and troubleshooting.
| Specification | Details |
| Product | IF6033 |
| Manufacturer | IFM |
| Model | IFB3004-BPKG/US/PULLDOWN 2KOHM |
| Sensor Type | Inductive proximity sensor |
| Sensing Range | 4 mm |
| Real Sensing Range | 4 ± 10% mm |
| Guaranteed Sensing Range | 0–3.25 mm |
| Electrical Design | DC PNP |
| Output Function | Normally open (NO) |
| Operating Voltage | 9–32 V DC |
| Current Consumption | <15 mA |
| Internal Pull-Down Resistance | 2 kΩ |
| Switching Frequency | 200 Hz |
| Continuous Switching Current | 125 mA; 150 mA up to 50°C |
| Maximum Switching Current | 150 mA |
| Voltage Drop | <2.5 V |
| Housing Thread | M12 × 1 |
| Housing Length | 50 mm |
