The IFM IF6035 is a robust inductive proximity sensor designed for precise non-contact detection of metallic objects in industrial automation applications. It features a 5 mm sensing range, DC PNP normally-open output, V4A stainless-steel housing, M12 connection and IP67 protection for reliable machine and position monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

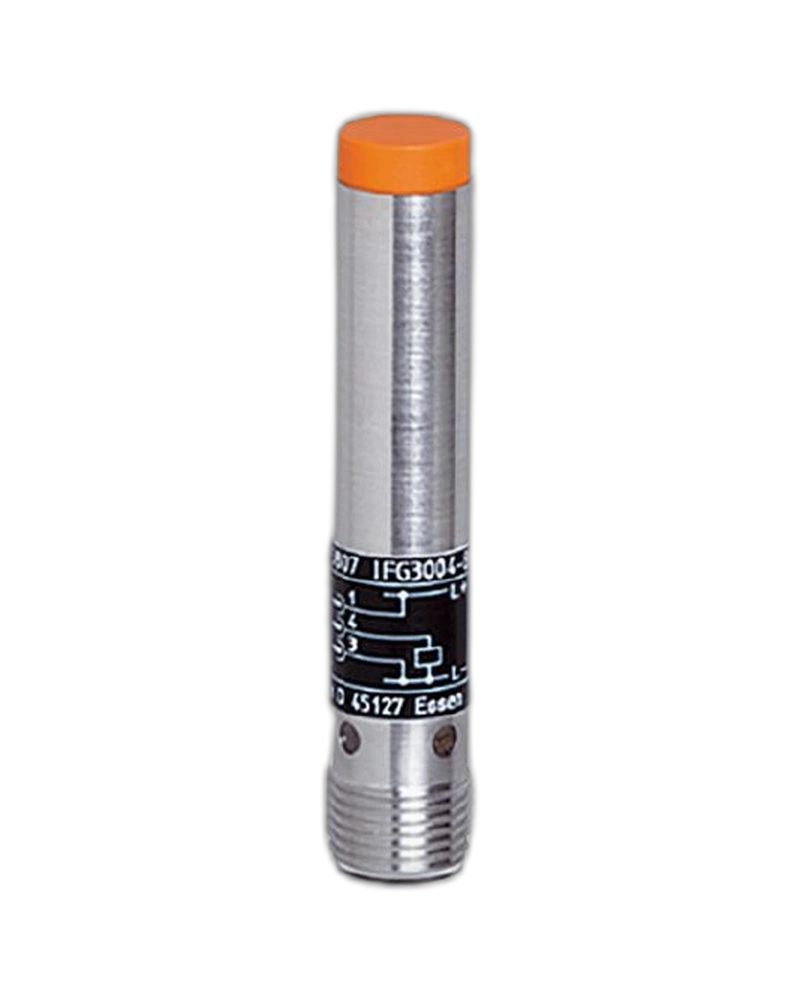

The IFM IF6035 inductive sensor is engineered for reliable metallic object detection and precise position monitoring on industrial machines. Its smooth V4A stainless-steel housing helps reduce the accumulation of deposits, while the compact cylindrical design provides dependable installation in demanding automation environments.
• IFM IF6035 inductive sensor
• Model: IFG3005-BPKG/V4A/US
• 5 mm nominal sensing range
• Real sensing range: 5 ± 10% mm
• Guaranteed sensing range: 0–4.05 mm
• Non-contact metallic object detection
• DC PNP electrical design
• Normally-open output
• 10–36 V DC operating voltage
• 800 Hz switching frequency
• 250 mA switching output current
• Ø11 mm cylindrical housing
• 60 mm housing length
• V4A stainless-steel housing
• Non-flush mounting
• M12 connector connection
• IP67 protection rating
• Yellow LED switching-status indication
• Reverse-polarity protection
• Short-circuit protection
• Overload protection
The IF6035 uses inductive sensing technology to detect metallic objects without physical contact. Its 5 mm sensing range makes it suitable for position detection, component presence monitoring and automated machine operations.
The sensor features a smooth stainless-steel V4A housing designed for demanding industrial environments. The smooth surface helps protect against deposits, while the robust metal construction provides durability for machine and factory automation applications.
The IF6035 uses a DC PNP normally-open output and operates from 10–36 V DC. With an 800 Hz switching frequency and up to 250 mA switching output current, it supports fast and dependable detection in automated machinery.
The cylindrical sensor has an Ø11 mm diameter and 60 mm length, with non-flush mounting and an M12 connector. This configuration allows straightforward integration into compatible industrial control and automation systems.
The IF6035 provides IP67 protection and incorporates reverse-polarity, short-circuit and overload protection. A clearly visible yellow LED provides switching-status indication, helping with installation, commissioning and troubleshooting.
The IF6035 is suitable for machine position detection, metallic object detection, component presence sensing, counting applications, production machinery and factory automation systems. It is a practical choice for Industrial Sensors, Proximity Sensors and Industrial Automation Components UAE.
• Precise non-contact metal detection
• Durable V4A stainless-steel construction
• Smooth housing helps reduce deposits
• High 800 Hz switching frequency
• Compact Ø11 mm cylindrical design
• M12 connector for convenient integration
• IP67 protection for industrial environments
• Clear LED switching indication
| Specification | Details |
|---|---|
| Product | IF6035 |
| Manufacturer | IFM |
| Model | IFG3005-BPKG/V4A/US |
| Sensor Type | Inductive proximity sensor |
| Sensing Principle | Inductive |
| Nominal Sensing Range | 5 mm |
| Real Sensing Range | 5 ± 10% mm |
| Guaranteed Sensing Range | 0–4.05 mm |
| Electrical Design | DC PNP |
| Output Function | Normally open (NO) |
| Operating Voltage | 10–36 V DC |
| Current Consumption | <15 mA |
| Switching Frequency | 800 Hz |
| Switching Output Current | 250 mA |
| Maximum Voltage Drop | 2.5 V |
| Housing Type | Cylindrical |
| Housing Diameter | 11 mm |
| Housing Length | 60 mm |
| Housing Material | V4A stainless steel (1.4571/316Ti) |
| Mounting | Non-flush |
| Connection | M12 connector |
