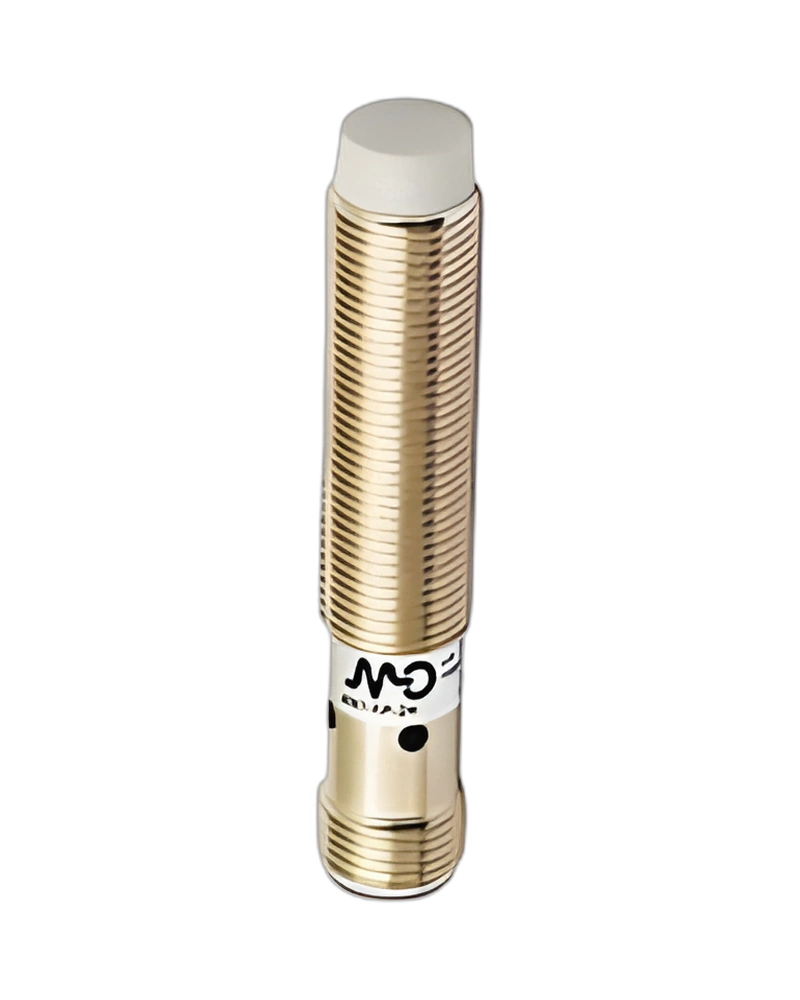

VM2/C0-1B is an m12 ac inductive proximity sensor for metal-target detection. The specified operating range or reference distance is 2 mm. The output is NC. The supply is 20…250 VAC, 50–60 Hz. The connection is 2 m cable. The housing is Nickel-plated brass.
The sensing distance is 2 mm. Shielding is Shielded.
The specified value of 2 mm gives the reference distance or measurement envelope for the device.
The supply is 20…250 VAC, 50–60 Hz. The supply is 2-wire AC. The output is NC. The maximum load current is 5…300 mA. The switching frequency is 25 Hz.
The supply of 20…250 VAC, 50–60 Hz defines the required operating voltage. The NC output defines the switching or signal arrangement. The switching frequency is 25 Hz.
The housing is Nickel-plated brass. The connection is 2 m cable. Protection is rated IP67. The operating temperature range is -25…+70 °C.
The Nickel-plated brass housing provides the specified mechanical format. The 2 m cable connection provides the stated physical interface. Protection is rated IP67. The ambient temperature range is -25…+70 °C.
The sensor type is M12 AC inductive proximity sensor. The target material is Ferrous metal / FE360 reference. The sensing distance is 2 mm. Shielding is Shielded. The output is NC. The supply is 2-wire AC. The supply is 20…250 VAC, 50–60 Hz. The maximum load current is 5…300 mA. The switching frequency is 25 Hz. The led is Yellow.
VM2/C0-1B combines the m12 ac inductive proximity sensor characteristics given in the product specification. The sensor type is M12 AC inductive proximity sensor. The sensing distance is 2 mm. The connection is 2 m cable. The housing is Nickel-plated brass. Protection is rated IP67. Shielding is Shielded. These technical values describe the sensing, electrical and mechanical properties of VM2/C0-1B.
| Specification | Value |
|---|---|
| Model | VM2/C0-1B |
| Sensor type | M12 AC inductive proximity sensor |
| Target material | Ferrous metal / FE360 reference |
| Sensing distance | 2 mm |
| Shielding | Shielded |
| Output logic | NC |
| Electrical system | 2-wire AC |
| Operating voltage | 20…250 VAC, 50–60 Hz |
| Load current | 5…300 mA |
| Switching frequency | 25 Hz |
| LED | Yellow |
| Protection | IP67 |
| Connection | 2 m cable |
| Housing | Nickel-plated brass |
| Ambient temperature | -25…+70 °C |
