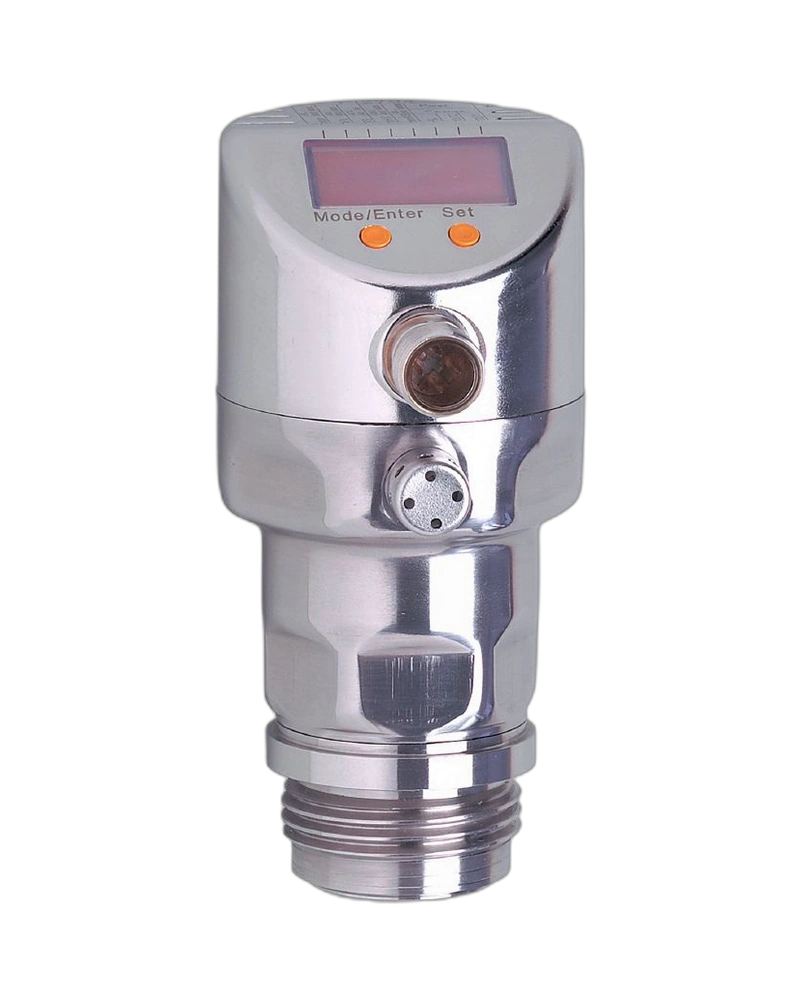

PY2795 is a hygienic pressure sensor with integrated display designed for lower-pressure process applications. It provides a −1…5 bar measuring range and programmable switching and analogue outputs. The flush hygienic construction supports food, beverage and sanitary processes. Its four-digit display gives operators direct access to process pressure information. IO-Link enables digital configuration and diagnostic functions. PY2795 is suitable for tanks, process piping, pumps and hygienic production equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PY2795 combines local pressure indication with flexible electronic process control. Its −1…5 bar range is suited to low-pressure and vacuum-related applications. The sensor provides two switching outputs and one scalable analogue output. IO-Link enables digital parameterisation and process-data communication. The flush process connection supports hygienic installation. The stainless-steel housing provides durability in cleaning-intensive environments.
−1…5 bar range
Integrated four-digit display
Two digital outputs
One analogue output
4–20 mA
IO-Link
Flush process connection
Aseptoflex Vario
Stainless-steel construction
PNP/NPN outputs
Scalable analogue output
Local parameterisation
Digital diagnostics
Hygienic construction
Food-industry suitability
Food processing
Dairy applications
Beverage production
Breweries
Vacuum monitoring
Low-pressure systems
Process tanks
Hygienic piping
CIP systems
SIP systems
Pump monitoring
Pressure control
Filling equipment
Quality control
Process automation
| Specification | Details |
|---|---|
| Product model | PY2795 |
| Order code | PI-005-REA01-MFRKG/US/ /P |
| Measuring range | −1…5 bar |
| Pressure type | Relative |
| Digital outputs | 2 |
| Analogue output | 1 |
| Analogue output | 4–20 mA |
| Analogue scaling | Configurable |
| Switching logic | PNP/NPN |
| Display | 4-digit red/green |
| Display units | bar / psi / MPa / %FS |
| IO-Link | Yes |
| Process connection | G 1 / Aseptoflex Vario |
| Housing | Stainless steel |
| Sensing cell | Ceramic |
| Wetted parts | Stainless steel / ceramic / PTFE |
| Supply | 18–32 V DC |
| Protection | IP67/IP68/IP69K |
| Switching frequency | Up to 125 Hz |
| Switching current | Up to 250 mA |
| Accuracy | <±0.2% span |
| Repeatability | <±0.1% span |
| Long-term stability | <±0.1% span/year |
| Parameterisation | Buttons / IO-Link |
| Application | Hygienic pressure measurement |
