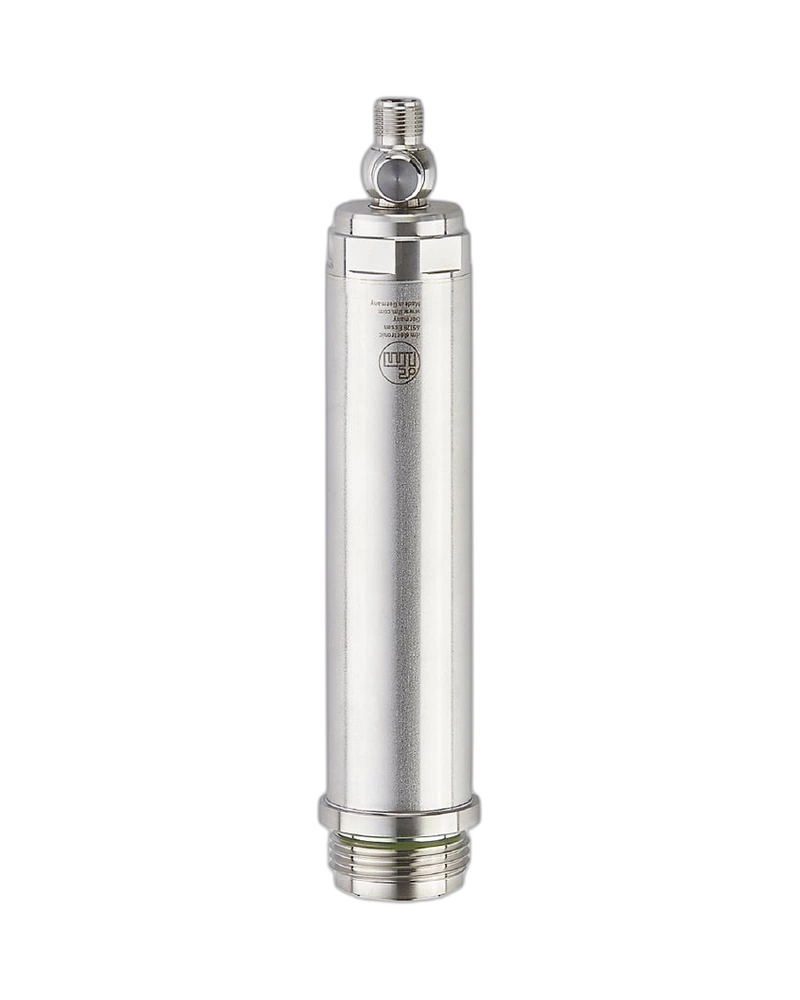

PY2007 is a flush pressure sensor designed for hygienic measurement of liquids, gases and viscous media. It provides a −50…1000 mbar measuring range with a scalable 4–20 mA output. The flush process connection minimizes dead space and supports hygienic installation. Stainless-steel construction and high protection ratings make it suitable for demanding food-processing environments. The sensor can operate with IO-Link for advanced configuration and diagnostics. PY2007 is ideal for sanitary tanks, piping and process equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PY2007 provides reliable low-pressure measurement for hygienic industrial processes. Its flush sensing surface is suitable for viscous media and suspended particles. The −50…1000 mbar range supports a wide variety of low-pressure applications. The 4–20 mA output can be scaled to match process requirements. IO-Link enables digital configuration and process-data access. The sensor is designed for continuous operation in food and beverage production.
The pressure medium acts on a ceramic-capacitive sensing cell. The sensor converts pressure into an electrical measurement signal. Electronics generate a scalable 4–20 mA output. IO-Link provides additional digital process information. The flush diaphragm supports measurement without a large product trap. The system provides continuous and repeatable pressure monitoring.
PY2007 is built for hygienic process environments. Its stainless-steel housing supports demanding cleaning conditions. The flush process interface minimizes dead space. It can handle viscous media and liquids containing suspended particles. The device has a 10 bar pressure rating and 30 bar minimum burst pressure. High protection supports wet and washdown environments.
Flush pressure measurement
−50…1000 mbar range
4–20 mA output
Scalable analogue output
Ceramic-capacitive cell
Aseptoflex Vario connection
Stainless-steel housing
Hygienic design
Low dead space
Viscous-media suitability
IO-Link
Watchdog function
High-pressure cleaning suitability
Continuous measurement
Food-industry compatible
Food processing
Dairy processing
Beverage production
Breweries
Viscous products
Liquid process systems
Tanks
Pipelines
Filling equipment
CIP systems
SIP systems
Process pressure monitoring
Pump systems
Hygienic automation
Quality control
| Specification | Details |
|---|---|
| Product model | PY2007 |
| Order code | PM-001BREA01-E-ZVG/US |
| Product type | Flush pressure sensor |
| Measuring range | −50…1000 mbar |
| Pressure type | Relative |
| Output | 4–20 mA |
| Output scaling | Configurable |
| Supply | 18–30 V DC |
| Measuring principle | Ceramic-capacitive |
| Process connection | G 1 external / Aseptoflex Vario |
| Medium | Liquids and gases |
| Viscous media | Supported |
| Medium temperature | −25…85 °C |
| Short-duration medium temperature | 125 °C <1 h |
| Pressure rating | 10 bar |
| Burst pressure | 30 bar |
| Vacuum resistance | −1000 mbar |
| Max. load | 700 Ω at 24 V |
| Protection | IP67/IP68/IP69K |
| Communication | IO-Link |
| Electrical connection | M12 |
| Dead-space design | Flush |
| Watchdog | Integrated |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Application | Hygienic process |
