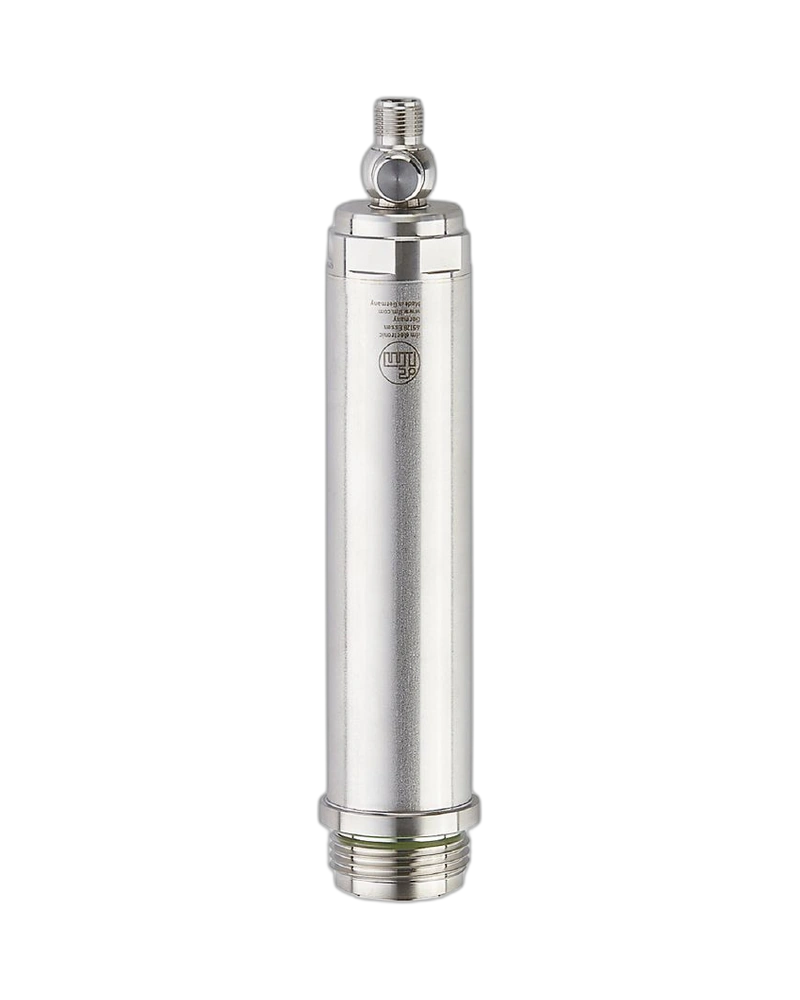

PY2006 is a flush-mounted pressure sensor designed for hygienic process applications. Its flush diaphragm construction minimizes dead space and supports hygienic process requirements. The sensor is suitable for liquids and gases and provides a configurable analogue pressure signal. Its stainless-steel construction is designed for food and beverage applications. The device supports IO-Link communication for configuration and digital process information. PY2006 is suitable for tanks, pipes, pumps and hygienic processing equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PY2006 is designed for pressure measurement where hygienic installation and cleanability are important. The flush-mounted sensing face helps reduce product accumulation around the measuring point. Its ceramic-capacitive measuring cell provides stable pressure measurement. The analogue output can be scaled according to process requirements. IO-Link enables digital parameterisation and diagnostics. The sensor is suitable for food, beverage and sanitary process systems.
Process pressure acts on the flush-mounted ceramic-capacitive sensing cell. The cell converts pressure changes into an electrical signal. Electronics process the signal and provide a scalable 4–20 mA output. IO-Link enables digital access to process values and parameters. The flush design allows the sensor to measure without creating a significant product trap. This supports hygienic pressure measurement.
The sensor uses a stainless-steel hygienic housing. The flush diaphragm provides a low-dead-space process interface. Materials are selected for food and beverage applications. High protection ratings support washdown operations. The sensor can be installed in tanks and process piping. Its design supports hygienic cleaning procedures.
Flush-mounted pressure cell
Hygienic construction
Ceramic-capacitive measuring cell
4–20 mA output
IO-Link
Scalable analogue output
Stainless-steel construction
Aseptoflex Vario process connection
Low dead space
Food-industry suitability
High-pressure cleaning resistance
High protection rating
Digital parameterisation
Continuous pressure measurement
Process diagnostics
Food processing
Dairy plants
Beverage production
Breweries
Hygienic tanks
Process piping
Filling systems
CIP processes
SIP processes
Pump monitoring
Process pressure control
Sanitary machinery
Product-pressure monitoring
Quality control
Industrial automation
| Specification | Details |
|---|---|
| Product model | PY2006 |
| Order code | PM-2,5-REA01-E-ZVG/US |
| Product type | Flush pressure sensor |
| Measuring principle | Ceramic-capacitive |
| Pressure type | Relative |
| Measuring range | −125…2500 mbar |
| Equivalent range | −12.5…250 kPa |
| Output | 4–20 mA |
| Output | Scalable |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Supply | 18–30 V DC |
| Process connection | Hygienic Aseptoflex Vario |
| Wetted design | Flush |
| Housing | Stainless steel |
| Medium | Liquids and gases |
| Application | Food and beverage |
| Dead space | Minimized |
| Protection | IP67/IP68/IP69K |
| Electrical connection | M12 |
| Pressure monitoring | Continuous |
| Digital parameterisation | Yes |
| Diagnostics | Yes |
| Installation | Tank/pipe/process |
| Hygiene suitability | Yes |
