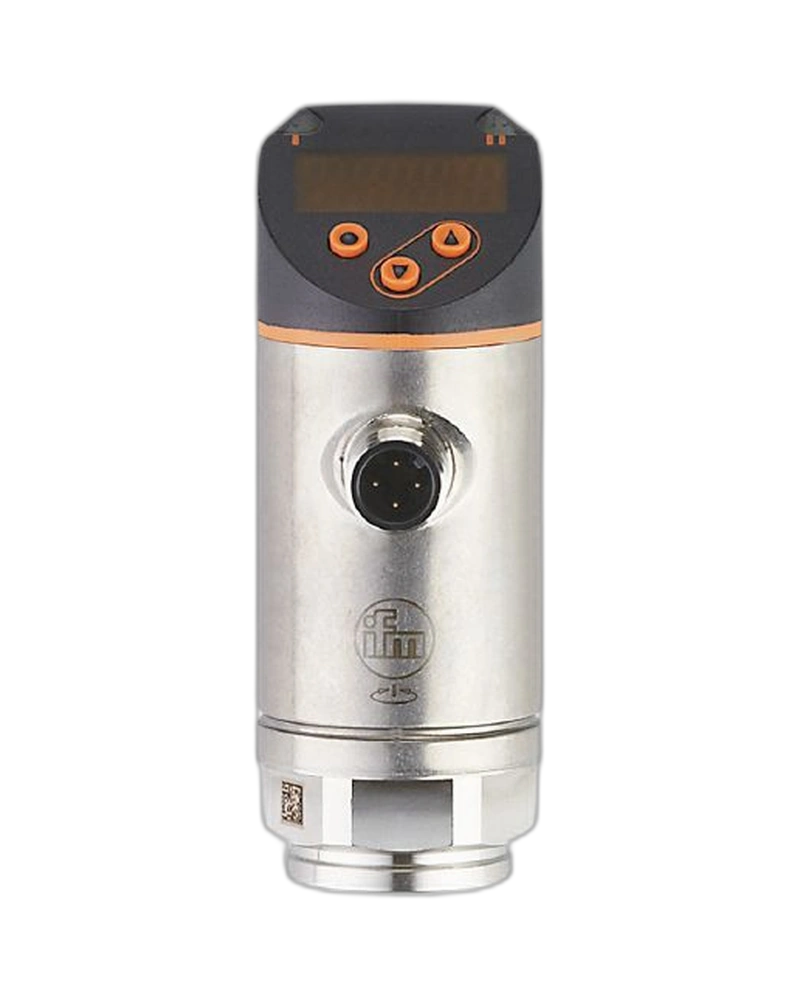

PY2094 is a pressure sensor with integrated four-digit display for industrial pressure monitoring. It provides local pressure indication together with switching and analogue outputs. The display can show process pressure in commonly used engineering units. Its programmable switching outputs can be used for pressure-limit control and machine protection. The analogue output provides proportional process information for PLC systems. PY2094 is suitable for hydraulic, pneumatic and general industrial applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PY2094 combines a pressure sensor, digital display and electronic switching functions in one device. The integrated display improves operator visibility at the machine. Two switching outputs can be configured for independent pressure thresholds. An analogue output allows continuous pressure monitoring by a PLC. The display head can be oriented for improved readability. Its robust housing supports industrial machine applications.
The four-digit display provides direct pressure information. Green and yellow indicators provide unit and switching-status information. Programming buttons allow local parameter adjustment. The upper housing can be rotated for convenient installation. Switching outputs support alarm and control functions. The sensor can also be integrated into automated pressure-control loops.
Four-digit pressure display
Two switching outputs
One analogue output
Programmable pressure thresholds
Rotatable display head
Local parameter setting
Multiple pressure units
M12 connection
Stainless-steel housing
Ceramic sensing cell
Pressure memory functions
PLC integration
Machine protection
Industrial automation
Continuous monitoring
Hydraulic systems
Pneumatic systems
Machine tools
Pressure control
Pump monitoring
Compressor systems
Industrial machinery
Process equipment
Machine protection
Pressure alarms
PLC automation
OEM equipment
Maintenance monitoring
Equipment diagnostics
Plant engineering
| Specification | Details |
|---|---|
| Product model | PY2094 |
| Order code | PN-010-RER14-MFRKG/US/ /V |
| Product type | Pressure sensor with display |
| Measuring range | 0…10 bar class |
| Pressure type | Relative |
| Display | 4-digit red/green |
| Unit indicators | bar / psi / MPa |
| Switching outputs | 2 |
| Analogue output | 1 |
| Output signal | Configurable |
| Switching type | PNP/NPN |
| Switching function | NO/NC |
| Analogue output | 4–20 mA / configurable |
| Process connection | G 1/4 internal thread |
| Electrical connection | M12 |
| Display rotation | 345° |
| Housing | Stainless steel |
| Wetted material | Stainless steel / ceramic / FKM |
| Minimum pressure cycles | 100 million |
| Parameter setting | Pushbutton |
| Diagnostic functions | Yes |
| Pressure memory | Yes |
| Application | Industrial automation |
| Installation | Machine/process |
| Protection | Industrial IP rating |
