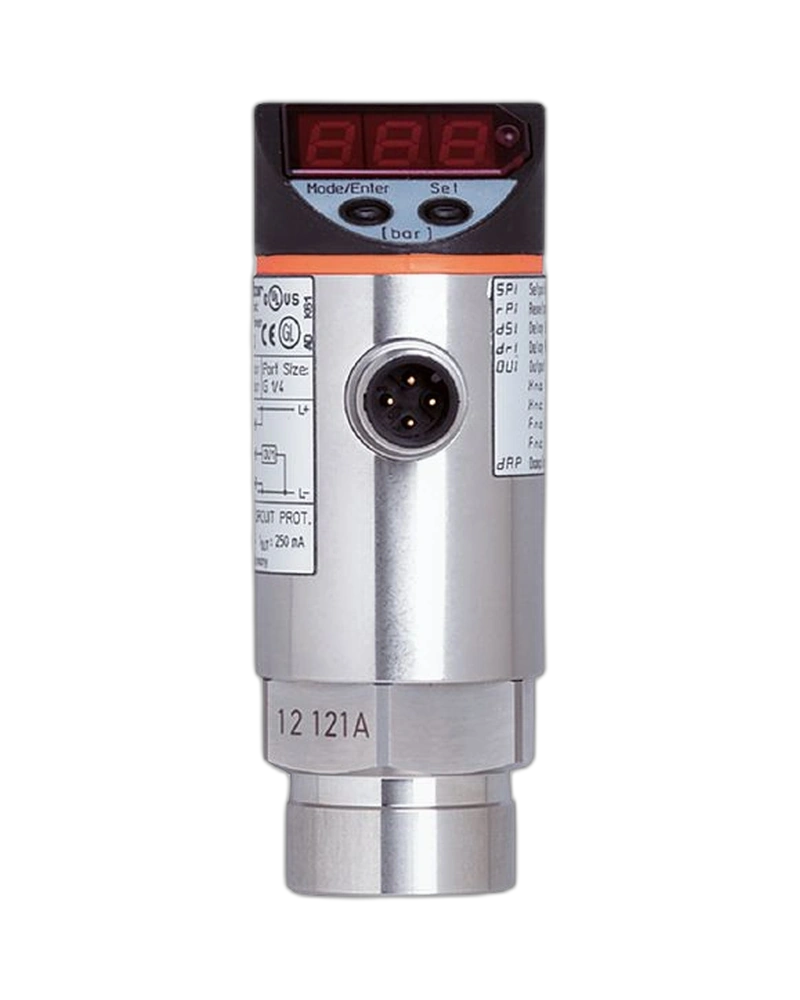

PY2209 is a combined pressure sensor and display designed for machine and plant pressure monitoring. It provides local digital indication together with configurable switching and analogue outputs. The display allows operators to monitor process pressure directly at the sensor. Pressure thresholds can be programmed for automatic control and alarm functions. The analogue output can transmit pressure information to a PLC or control system. PY2209 is suitable for hydraulic, pneumatic and industrial process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PY2209 combines pressure sensing and local process indication in a compact industrial device. The sensor provides continuous pressure information and programmable switching functions. Operators can configure units, display settings and pressure thresholds. The device can transmit analogue pressure information to automation systems. Minimum and maximum pressure values can assist troubleshooting. Its compact design makes it useful in machinery and process installations.
The pressure sensing element detects the process pressure. Electronics convert the pressure into an analogue process value. Switching outputs respond when programmed pressure thresholds are reached. The display provides local pressure information. Internal memory can retain minimum and maximum values. This provides pressure monitoring, control and diagnostic functionality in one device.
Integrated pressure display
Analogue pressure output
Two switching outputs
Programmable pressure thresholds
Minimum/maximum memory
Digital parameterisation
Local pressure indication
Multiple pressure units
M12 connection
Compact housing
Industrial construction
PLC integration
Pressure alarm function
Machine protection
Continuous monitoring
Hydraulic machinery
Pneumatic equipment
Machine tools
Pump systems
Compressor systems
Pressure-control loops
Process machinery
Industrial automation
Pressure alarms
Equipment protection
PLC monitoring
OEM equipment
Plant engineering
Maintenance diagnostics
Machine condition monitoring
| Specification | Details |
|---|---|
| Product model | PY2209 |
| Order code | PN-1IBRBN14-MFRKG/US/ /V |
| Product type | Pressure sensor with display |
| Pressure type | Relative |
| Measuring range | Model-dependent pressure range |
| Display | Digital multi-digit |
| Display function | Process pressure |
| Switching outputs | 2 |
| Analogue output | 1 |
| Output signal | 4–20 mA / 0–10 V configurable by variant |
| Switching logic | PNP/NPN |
| Switching function | NO/NC |
| Set points | Programmable |
| Reset points | Programmable |
| Pressure memory | Min./max. |
| Units | bar / psi / MPa |
| Electrical connection | M12 |
| Process connection | 1/4 in pressure connection |
| Housing | Industrial stainless steel |
| Sensing element | Ceramic |
| Parameterisation | Local |
| Diagnostics | Yes |
| Application | Machine automation |
| Installation | Process/machine |
| Protection | Industrial IP rating |
| Control integration | PLC/DCS |
