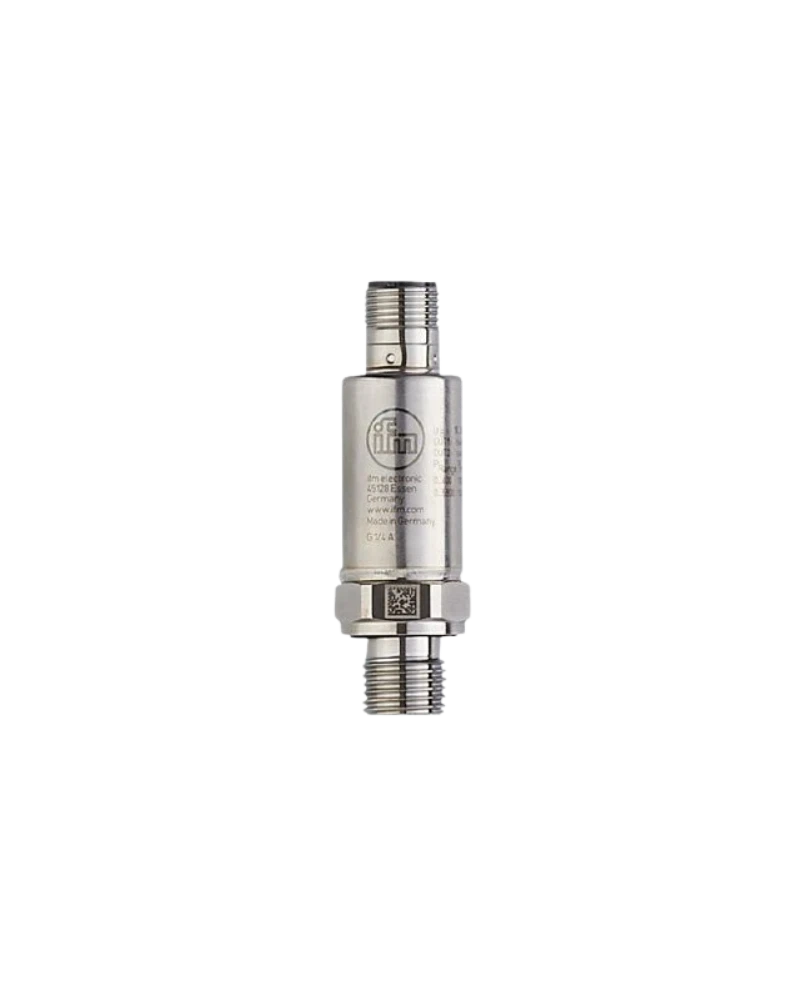

PV8060 is a high-pressure intelligent pressure switch designed for demanding industrial hydraulic applications. It provides a 0–600 bar measuring range. The device combines programmable switching functions with IO-Link communication. It also supports temperature monitoring for additional process information. Its robust stainless-steel construction provides reliable performance in high-pressure environments. The 600 bar range is the highest pressure version shown in this product family.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PV8060 provides continuous pressure monitoring up to 600 bar. It can provide temperature information through the IO-Link interface. Programmable switching points allow pressure limits to control machine functions. Digital process data supports integration with PLC and automation systems. The sensor is suitable for applications where pressure and temperature must be monitored together.
The sensor uses a metallic thin-film measuring cell. Stainless-steel pressure-contact materials provide strong mechanical durability. Its robust construction is designed for demanding industrial hydraulic systems. IP67/IP69K protection supports harsh installation environments. High shock and vibration resistance help maintain reliable operation.
PV8060 is suitable for hydraulic pumps, power units and high-pressure machinery. It can be used for machine protection and pressure alarms. Temperature information can assist condition monitoring and maintenance. IO-Link enables remote parameterisation and diagnostic data access. The high-pressure measuring range makes it suitable for heavy-duty hydraulic systems.
0…600 bar range
High-pressure measurement
Temperature monitoring
Two digital outputs
IO-Link communication
Programmable switching points
Programmable reset points
Pressure process data
Temperature process data
Hysteresis mode
Window mode
Adjustable damping
Switching delays
Metallic thin-film cell
G1/4 process connection
M5 internal thread
Stainless-steel construction
IP67/IP69K
Shock and vibration resistance
High-pressure capability
High-pressure hydraulics
Hydraulic pumps
Hydraulic power units
Construction machinery
Industrial machinery
Pressure monitoring
Temperature monitoring
Machine protection
Pressure alarms
Condition monitoring
Predictive maintenance
Machine diagnostics
PLC automation
Process monitoring
Equipment protection
| Specification | Details |
|---|---|
| Model | PV8060 |
| Order code | PV-600-SEG14-UFRVG/US |
| Pressure type | Relative |
| Pressure range | 0…600 bar |
| Equivalent | 0…8700 psi |
| Temperature monitoring | Yes |
| Temperature range | −40…90 °C family |
| Measuring element | Metallic thin-film |
| Digital outputs | 2 |
| Communication | IO-Link |
| Output function | Configurable |
| Process connection | G1/4 |
| Auxiliary thread | M5 |
| Supply voltage | 18…30 V DC |
| Current consumption | <15 mA |
| Switching current | 100 mA |
| Response | <3 ms family |
| Pressure resolution | 0.2 bar class |
| Temperature resolution | 0.2 K class |
| Repeatability | < ±0.05 % span family |
| Linearity | < ±0.1 % BFSL / < ±0.2 % LS family |
| Hysteresis | < ±0.2 % span family |
| Protection | IP67/IP69K |
| Application | High-pressure hydraulic monitoring |
