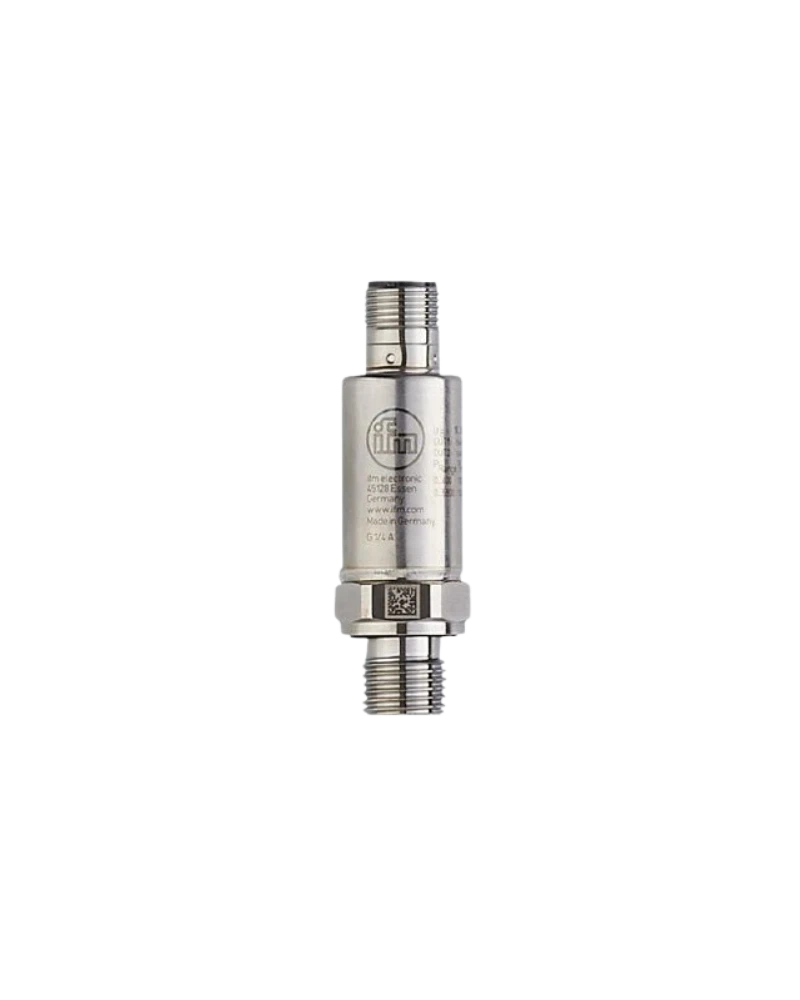

PV8023 is an intelligent pressure switch designed for 0–60 bar pressure monitoring. It provides programmable switching functions and IO-Link communication. The device can also provide temperature information through its intelligent sensor interface. Its G1/4 connection supports industrial pressure-system integration. The stainless-steel construction provides reliable operation under demanding conditions.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PV8023 provides continuous pressure monitoring up to 60 bar. Configurable switching points allow pressure limits to be used for machine protection. IO-Link provides digital process information and diagnostic functions. Temperature monitoring provides additional information about the operating environment. The device can therefore support both process control and condition monitoring.
The sensor uses metallic thin-film pressure measuring technology. Stainless-steel construction supports durability in industrial applications. Its compact body allows installation near pressure sources. Electrical protection functions support reliable machine operation. IP67/IP69K protection provides strong environmental resistance.
PV8023 is suitable for hydraulic systems, pumps and industrial machinery. It can monitor pressure and temperature conditions simultaneously. Programmable outputs can activate alarms and protective functions. IO-Link enables integration with PLC and automation systems. Its compact design simplifies installation and maintenance.
0…60 bar range
Temperature monitoring
Two digital outputs
IO-Link
Programmable switching points
Programmable reset points
Pressure process data
Temperature process data
Hysteresis mode
Window mode
Adjustable damping
Switching delays
Metallic thin-film cell
G1/4 connection
M5 internal thread
Stainless-steel housing
Fast response
IP67/IP69K
Shock resistance
Diagnostic functionality
Hydraulic systems
Pump monitoring
Pressure control
Temperature monitoring
Machine protection
Industrial automation
PLC systems
Process monitoring
Condition monitoring
Predictive maintenance
Machine diagnostics
Pressure alarms
Temperature alarms
Equipment protection
Preventive maintenance
| Specification | Details |
|---|---|
| Model | PV8023 |
| Order code | PV-060-REG14-UFRVG/US |
| Pressure type | Relative |
| Pressure range | 0…60 bar |
| Equivalent | 0…870 psi |
| Temperature monitoring | Yes |
| Temperature range | −40…90 °C family |
| Measuring element | Metallic thin-film |
| Digital outputs | 2 |
| Communication | IO-Link |
| Output logic | Configurable |
| Process connection | G1/4 |
| Auxiliary thread | M5 |
| Supply | 18…30 V DC |
| Current consumption | <15 mA |
| Switching current | 100 mA |
| Response | <3 ms |
| Pressure resolution | 0.2 bar class |
| Temperature resolution | 0.2 K class |
| Repeatability | < ±0.05 % span |
| Linearity | < ±0.1 % BFSL / < ±0.2 % LS |
| Hysteresis | < ±0.2 % span |
| Protection | IP67/IP69K |
| Application | Pressure/temperature monitoring |
