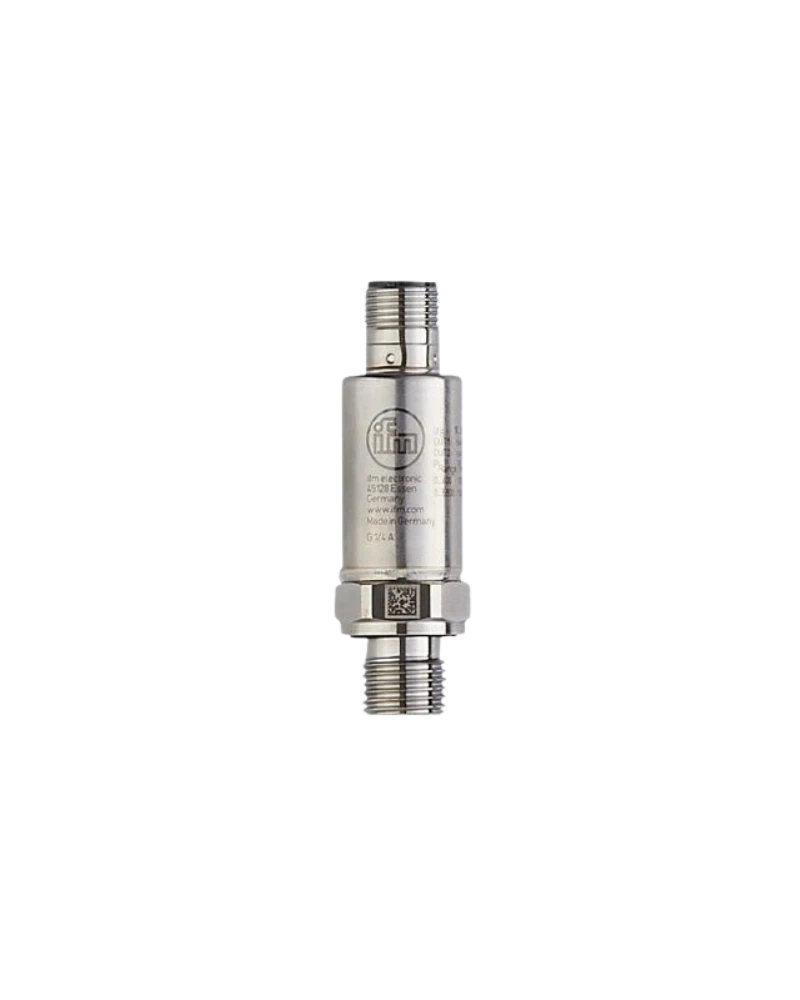

PV8004 is a compact intelligent pressure switch for low-pressure and vacuum applications. It provides a −1 to 10 bar measuring range. The device combines configurable switching outputs with IO-Link communication. Integrated temperature monitoring provides additional process information. Its stainless-steel construction supports reliable operation in industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PV8004 monitors both vacuum and low positive pressure. Programmable switching points allow accurate machine-control functions. IO-Link provides digital pressure, temperature and diagnostic information. Hysteresis, window mode and damping can be configured. The sensor is suitable for applications requiring compact multi-parameter monitoring.
The sensor uses a metallic thin-film measuring element. Its G1/4 process connection supports secure industrial installation. Stainless-steel construction provides mechanical durability. Electrical protection helps prevent damage from overload and short circuits. IP67/IP69K protection supports demanding environmental conditions.
PV8004 is suitable for vacuum systems, pneumatic machinery and low-pressure circuits. It can monitor compressors and suction systems. The programmable outputs can control alarms and machine-protection functions. IO-Link supports PLC integration and remote configuration. Temperature information can add value for condition monitoring.
−1…10 bar range
Pressure and vacuum measurement
Temperature monitoring
Two digital outputs
IO-Link
Programmable switching points
Programmable reset points
Hysteresis function
Window function
Adjustable damping
Switching delays
Metallic thin-film cell
G1/4 connection
M5 internal thread
Stainless-steel housing
Fast response
IP67/IP69K
Short-circuit protection
Overload protection
Diagnostic data
Vacuum systems
Pneumatic equipment
Low-pressure hydraulics
Compressors
Suction systems
Pressure monitoring
Temperature monitoring
Machine protection
Pressure alarms
Vacuum alarms
Industrial automation
PLC systems
Process monitoring
Condition monitoring
Preventive maintenance
| Specification | Details |
|---|---|
| Model | PV8004 |
| Order code | PV-010-REG14-UFRVG/US |
| Pressure type | Relative / vacuum |
| Pressure range | −1…10 bar |
| Equivalent | −14.5…145 psi |
| Temperature monitoring | Yes |
| Temperature range | −40…90 °C family |
| Measuring element | Metallic thin-film |
| Digital outputs | 2 |
| Communication | IO-Link |
| Electrical design | PNP/NPN |
| Process connection | G1/4 |
| Auxiliary thread | M5 |
| Supply | 18…30 V DC |
| Current consumption | <15 mA |
| Switching current | 100 mA |
| Response | <3 ms |
| Pressure resolution | 0.2 bar class |
| Temperature resolution | 0.2 K class |
| Repeatability | < ±0.05 % span |
| Linearity | < ±0.1 % BFSL / < ±0.2 % LS |
| Hysteresis | < ±0.2 % span |
| Protection | IP67/IP69K |
| Communication | IO-Link 1.1 |
