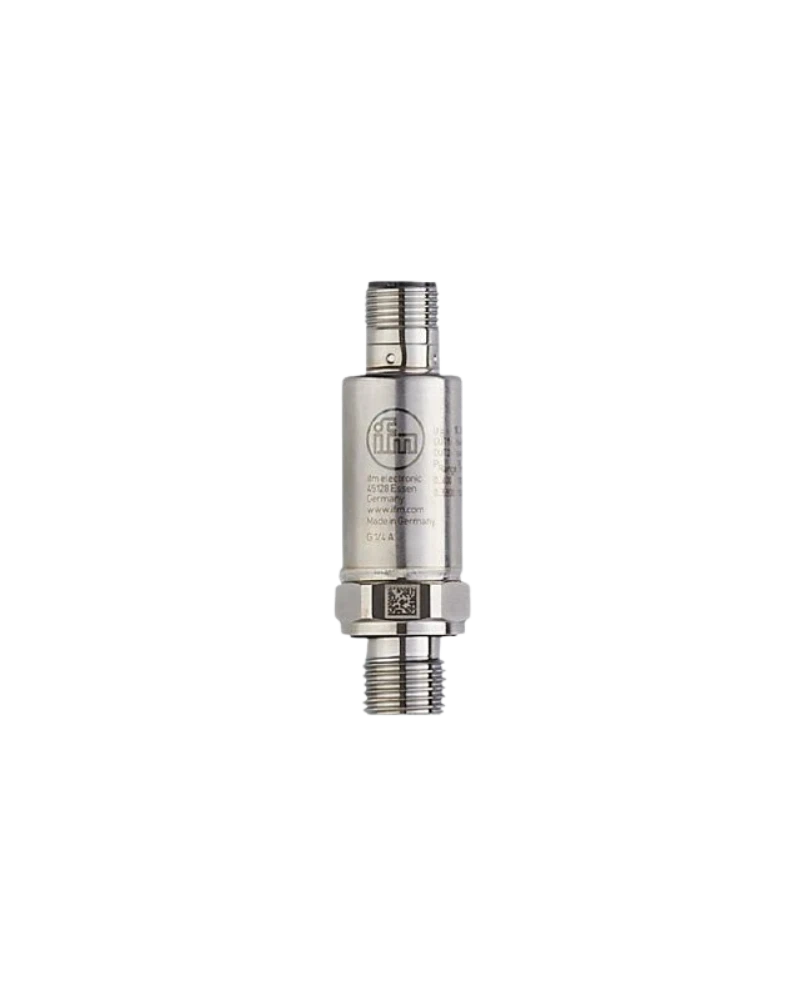

PV8003 is a compact pressure switch designed for pressure and vacuum monitoring. It provides a −1 to 25 bar measuring range. Two programmable switching outputs provide flexible machine-control functionality. IO-Link enables digital parameterisation and diagnostic communication. The robust construction makes the sensor suitable for industrial applications involving liquids and gases.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PV8003 provides relative pressure and vacuum measurement across its operating range. Programmable set points allow pressure conditions to trigger machine functions. Hysteresis and window modes provide flexible switching behaviour. IO-Link provides digital access to pressure and diagnostic data. The device can be used for both pressure protection and process monitoring.
The sensor uses a metallic thin-film measuring element. Its G1/4 process connection provides secure installation. Stainless-steel construction supports mechanical durability. Integrated electrical protection helps protect the sensor against common faults. IP67/IP69K protection supports industrial environments.
PV8003 is suitable for pneumatic systems, vacuum equipment and low-pressure hydraulics. It can monitor pumps, compressors and suction circuits. The programmable outputs can activate alarms and protective functions. IO-Link enables integration with PLC and automation systems. Its compact form factor simplifies installation.
−1…25 bar range
Pressure and vacuum measurement
Two digital outputs
IO-Link communication
PNP/NPN design
NO/NC programmable
Configurable set points
Configurable reset points
Hysteresis mode
Window mode
Adjustable damping
Switching delays
Metallic thin-film cell
G1/4 connection
M5 internal thread
Stainless-steel housing
Fast response
IP67/IP69K
Short-circuit protection
Overload protection
Vacuum systems
Pneumatic systems
Low-pressure hydraulics
Compressors
Pumps
Suction equipment
Pressure alarms
Vacuum alarms
Machine protection
Industrial automation
Process monitoring
Machine diagnostics
PLC systems
Condition monitoring
Preventive maintenance
| Specification | Details |
|---|---|
| Model | PV8003 |
| Order code | PV-025-SEG14-UFRVG/US |
| Pressure type | Relative / vacuum |
| Measuring range | −1…25 bar |
| Equivalent | −14.5…362.6 psi |
| Temperature monitoring | Yes |
| Temperature range | −40…90 °C family |
| Measuring element | Metallic thin-film |
| Digital outputs | 2 |
| Output | Switching + IO-Link |
| Electrical design | PNP/NPN |
| Process connection | G1/4 |
| Auxiliary thread | M5 |
| Supply | 18…30 V DC |
| Current consumption | <15 mA |
| Switching current | 100 mA |
| Response | <3 ms |
| Pressure resolution | 0.2 bar class |
| Temperature resolution | 0.2 K class |
| Repeatability | < ±0.05 % span |
| Linearity | < ±0.1 % BFSL / < ±0.2 % LS |
| Hysteresis | < ±0.2 % span |
| Protection | IP67/IP69K |
| Communication | IO-Link 1.1 |
