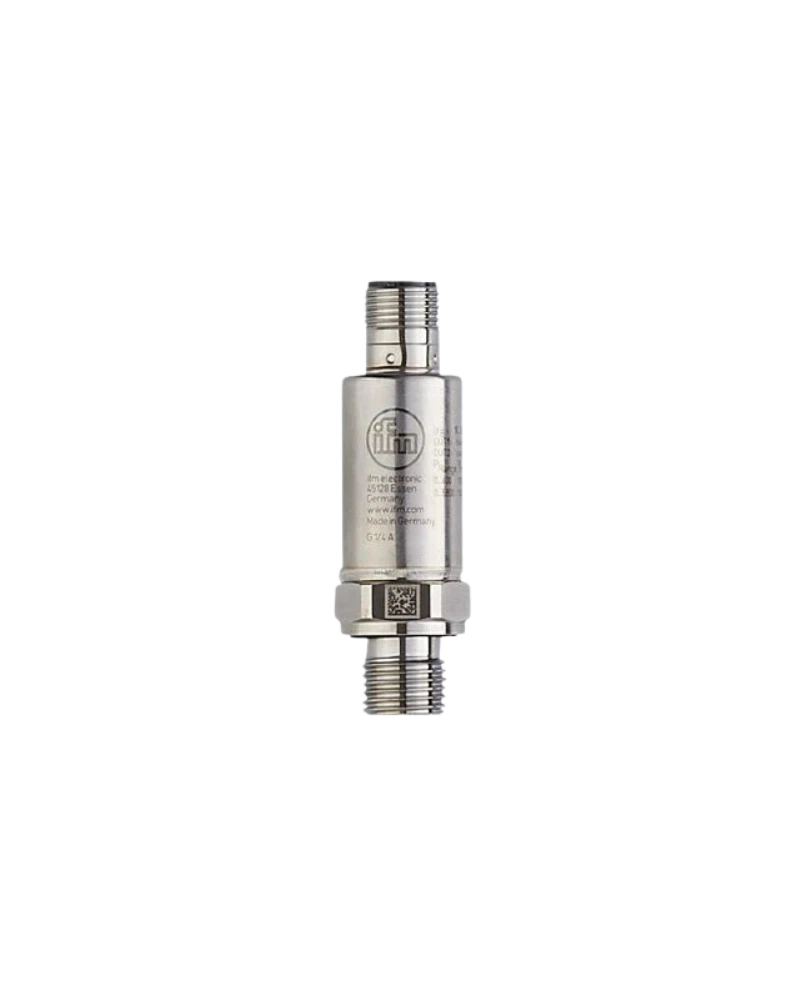

PV8002 is a compact intelligent pressure switch for industrial pressure and temperature monitoring. It provides a 0–100 bar measuring range. Two configurable outputs provide pressure-based machine-control functions. IO-Link provides digital pressure, temperature and diagnostic information. The robust stainless-steel construction supports reliable operation in demanding machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PV8002 provides continuous pressure measurement up to 100 bar. Integrated temperature monitoring adds useful process information through IO-Link. Pressure switching thresholds can be configured according to machine requirements. Hysteresis, window mode, damping and switching delays provide control flexibility. The device can support both real-time control and condition monitoring.
The sensor uses a metallic thin-film measuring cell. Its G1/4 process connection provides reliable mechanical installation. Stainless-steel wetted components support long-term durability. IP67/IP69K protection supports industrial environmental conditions. Shock and vibration resistance allow installation on machinery and equipment.
PV8002 is suitable for pumps, hydraulic circuits and industrial machinery. It can monitor pressure and temperature simultaneously. IO-Link enables connection to PLCs and automation systems. Diagnostic counters can support preventive maintenance. The device is suitable where compact intelligent sensing is required.
0…100 bar pressure range
Temperature monitoring
Two digital outputs
IO-Link
Pressure process data
Temperature process data
Configurable switching points
Configurable reset points
Hysteresis mode
Window mode
Damping adjustment
Switching delays
Metallic thin-film cell
G1/4 connection
M5 internal thread
Stainless-steel construction
Fast response
IP67/IP69K
Shock resistance
Diagnostic functionality
Hydraulic systems
Pneumatic systems
Pump monitoring
Pressure control
Temperature monitoring
Machine protection
Industrial automation
PLC systems
Process monitoring
Condition monitoring
Predictive maintenance
Machine diagnostics
Pressure alarms
Temperature alarms
Equipment protection
| Specification | Details |
|---|---|
| Model | PV8002 |
| Order code | PV-100-SEG14-UFRVG/US |
| Pressure type | Relative |
| Pressure range | 0…100 bar |
| Equivalent | 0…1450 psi |
| Temperature monitoring | Yes |
| Temperature range | −40…90 °C family |
| Measuring element | Metallic thin-film |
| Digital outputs | 2 |
| Output | Switching + IO-Link |
| Electrical design | PNP/NPN |
| Process connection | G1/4 |
| Auxiliary thread | M5 |
| Supply voltage | 18…30 V DC |
| Current consumption | <15 mA |
| Switching current | 100 mA |
| Response time | <3 ms |
| Pressure resolution | 0.2 bar class |
| Temperature resolution | 0.2 K class |
| Repeatability | < ±0.05 % span |
| Linearity | < ±0.1 % BFSL / < ±0.2 % LS |
| Hysteresis | < ±0.2 % span |
| Protection | IP67/IP69K |
| Communication | IO-Link 1.1 |
