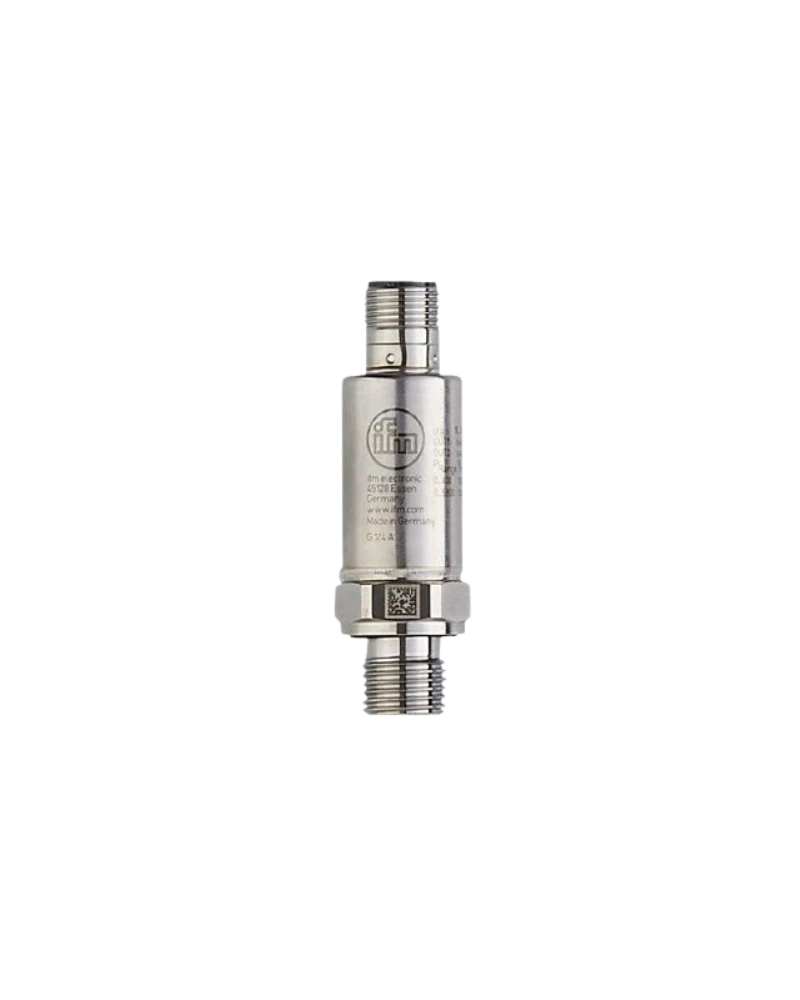

PV8000 is an intelligent pressure switch designed for advanced industrial pressure and temperature monitoring. It provides a 0–400 bar pressure measuring range and integrated temperature monitoring. Two digital outputs provide configurable pressure-related switching functions. IO-Link transmits pressure, temperature, diagnostics and additional device information. Its robust stainless-steel construction provides high resistance to shock, vibration and repeated pressure cycles.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PV8000 measures pressure from 0 to 400 bar and temperature from −40 to 90 °C. Pressure and temperature data can be communicated through IO-Link. The sensor supports configurable switching points for pressure and temperature monitoring. IO-Link provides pressure resolution of 0.2 bar and temperature resolution of 0.2 K. Temperature peak counters and pressure peak counters provide additional diagnostic information.
The sensor uses a metallic thin-film pressure measuring cell. Its G1/4 process connection includes an internal M5 thread. Stainless-steel wetted materials provide strong mechanical durability. The sensor supports 60 million pressure cycles at specified conditions. IP67/IP69K protection and high shock and vibration resistance make it suitable for demanding industrial installations.
PV8000 is suitable for hydraulic systems where pressure and temperature need to be monitored together. It can provide machine-protection functions based on both variables. IO-Link enables integration with PLCs and intelligent automation systems. Operating-hours and switching-cycle counters can assist predictive maintenance. The sensor is useful where a single device can replace separate pressure and temperature monitoring components.
0…400 bar pressure range
−40…90 °C temperature range
Integrated temperature monitoring
Two digital outputs
IO-Link 1.1
Pressure resolution 0.2 bar
Temperature resolution 0.2 K
Configurable switching points
Pressure peak counter
Temperature peak counter
Operating-hours counter
Switching-cycle counter
Metallic thin-film cell
G1/4 process connection
M5 internal thread
Fast response
IP67/IP69K
500 g shock resistance
20 g vibration resistance
60 million pressure cycles
Hydraulic systems
Hydraulic pumps
Power units
Pressure and temperature monitoring
Machine protection
Thermal monitoring
Process monitoring
Industrial automation
PLC systems
Condition monitoring
Predictive maintenance
Machine diagnostics
Pressure alarms
Temperature alarms
Equipment protection
| Specification | Details |
|---|---|
| Model | PV8000 |
| Product type | Pressure switch with IO-Link |
| Order code | PV-400-SEG14-UFRVG/US |
| Pressure type | Relative |
| Pressure range | 0…400 bar |
| Temperature range | −40…90 °C |
| Pressure resolution | 0.2 bar |
| Temperature resolution | 0.2 K |
| Measuring element | Metallic thin-film |
| Digital outputs | 2 |
| Output | Switching + IO-Link |
| Electrical design | PNP/NPN |
| Process connection | G1/4 |
| Auxiliary thread | M5 |
| Supply | 18…30 V DC |
| Current consumption | <15 mA |
| Switching current | 100 mA |
| Switching frequency | <130 Hz |
| Response time | <3 ms |
| Pressure accuracy | < ±0.5 % span |
| Repeatability | < ±0.05 % span |
| Linearity | < ±0.1 % BFSL / < ±0.2 % LS |
| Hysteresis | < ±0.2 % span |
| Temperature accuracy | ±2 K + temperature-dependent component |
| Protection | IP67/IP69K |
