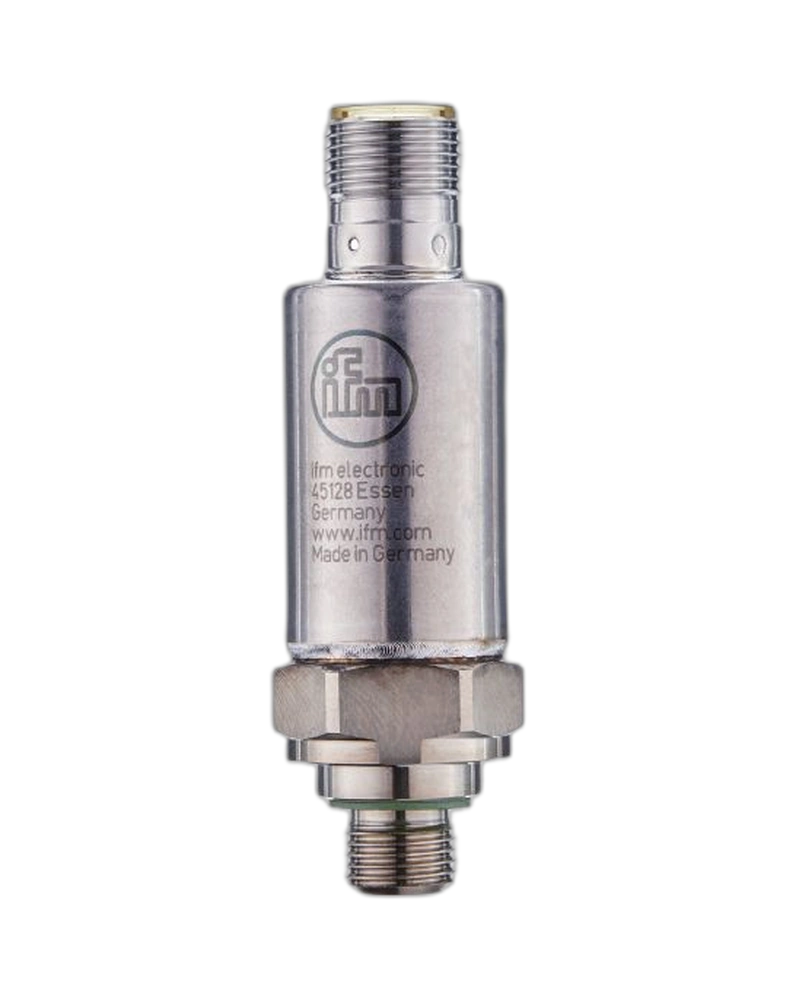

PV7704 is a compact pressure switch designed for low-pressure and vacuum monitoring. It provides a −1 to 10 bar measuring range. Two programmable digital outputs provide flexible machine-control functionality. IO-Link enables digital configuration, diagnostics and process-data communication. The robust construction supports operation with industrial liquids and gases.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PV7704 measures relative pressure and vacuum across its operating range. The set point can be configured from approximately −0.09 to 1 MPa. The reset point is also programmable for precise switching behaviour. Hysteresis, window mode, damping and switching delays can be configured. The sensor provides a response time below 3 ms.
The sensor uses a metallic thin-film measuring cell. It has an R1/4 external process connection and M5 internal thread. The sensor is suitable for liquids and gases with medium temperatures from −40 to 90 °C. Reverse-polarity, short-circuit and overload protection improve electrical reliability. IP67/IP69K protection supports demanding industrial applications.
PV7704 is suitable for pneumatic systems and vacuum equipment. It can monitor compressors, suction circuits and low-pressure hydraulic systems. Programmable outputs can control alarms and machine-protection functions. IO-Link provides convenient integration into PLC automation. Its compact housing makes it suitable for restricted installation spaces.
−1…10 bar range
Vacuum measurement
R1/4 process connection
Two digital outputs
IO-Link
PNP/NPN
NO/NC programmable
Adjustable set points
Adjustable reset points
Hysteresis mode
Window mode
Damping adjustment
Switching delays
Metallic thin-film cell
Stainless-steel construction
Fast response
Short-circuit protection
Overload protection
IP67/IP69K
Industrial application design
Vacuum systems
Pneumatic systems
Low-pressure hydraulics
Compressors
Suction equipment
Pressure alarms
Vacuum alarms
Machine protection
Industrial automation
Packaging machinery
Material handling
Process monitoring
Machine diagnostics
PLC systems
Preventive maintenance
| Specification | Details |
|---|---|
| Model | PV7704 |
| Order code | PV-010MSER14-UFRVG/US |
| Pressure type | Relative / vacuum |
| Measuring range | −1…10 bar |
| Equivalent | −0.1…1 MPa |
| Measuring element | Metallic thin-film |
| Digital outputs | 2 |
| Output | Switching + IO-Link |
| Electrical design | PNP/NPN |
| Output logic | NO/NC programmable |
| Process connection | R1/4 |
| Auxiliary thread | M5 |
| Supply | 18…30 V DC |
| Current consumption | <15 mA |
| Switching current | 100 mA |
| Switching frequency | <170 Hz |
| Response | <3 ms |
| Medium temperature | −40…90 °C |
| Pressure rating | 2.5 MPa |
| Burst pressure | 30 MPa minimum |
| Vacuum resistance | −1000 mbar |
| Protection | IP67/IP69K |
| Communication | IO-Link 1.1 |
| Application | Industrial pressure/vacuum monitoring |
