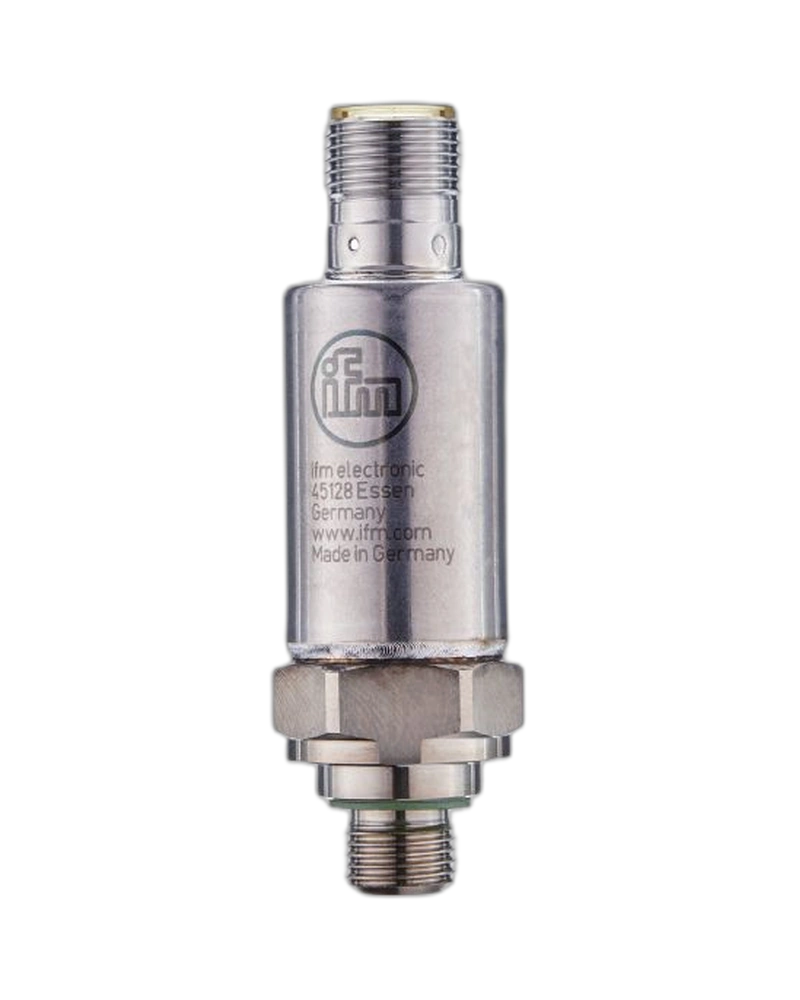

PV7703 is a compact pressure switch designed for low-pressure industrial applications. It provides a 0–25 bar measuring range with programmable switching outputs. The R1/4 process connection provides secure installation in compatible pressure systems. IO-Link supports digital parameterisation and diagnostics. Its stainless-steel construction provides durability in automated industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PV7703 continuously monitors relative pressure up to 25 bar. Programmable switching points allow the sensor to be matched to different process requirements. Hysteresis and window functions support flexible pressure control. Damping and switching delays can be adjusted through configuration. The sensor provides fast response for automated pressure monitoring.
The metallic thin-film measuring element supports dependable measurement. The stainless-steel housing provides mechanical durability. Integrated electrical protection improves reliability during machine operation. The compact body is suitable for installations with limited space. High shock and vibration resistance support industrial applications.
PV7703 is suitable for low-pressure hydraulics and pneumatic systems. It can monitor compressors, pumps and pressure circuits. Programmable outputs can trigger alarms and protective machine functions. IO-Link allows integration with PLC-based systems. Its compact construction supports flexible machine installation.
0…25 bar range
R1/4 process connection
Two digital outputs
IO-Link communication
PNP/NPN operation
NO/NC programmable
Adjustable switching points
Adjustable reset points
Hysteresis function
Window function
Adjustable damping
Switching delays
Metallic thin-film cell
Stainless-steel housing
Fast response
Short-circuit protection
Overload protection
Reverse-polarity protection
IP67/IP69K
Compact industrial design
Low-pressure hydraulics
Pneumatic systems
Compressors
Pumps
Pressure alarms
Machine protection
Industrial automation
Process monitoring
Machine diagnostics
Condition monitoring
PLC systems
Equipment protection
Preventive maintenance
Packaging equipment
IO-Link systems
| Specification | Details |
|---|---|
| Model | PV7703 |
| Order code | PV-025MSER14-UFRVG/US |
| Pressure type | Relative |
| Measuring range | 0…25 bar |
| Equivalent | 0…362 psi |
| Measuring element | Metallic thin-film |
| Digital outputs | 2 |
| Communication | IO-Link |
| Electrical design | PNP/NPN |
| Output function | NO/NC programmable |
| Process connection | R1/4 |
| Auxiliary thread | M5 |
| Supply | 18…30 V DC |
| Current consumption | <15 mA |
| Switching current | 100 mA |
| Switching frequency | <170 Hz |
| Response | <3 ms |
| Accuracy | < ±0.5 % span |
| Repeatability | < ±0.05 % span |
| Linearity | < ±0.1 % BFSL / < ±0.2 % LS |
| Hysteresis | < ±0.2 % span |
| Long-term stability | < ±0.1 % span |
| Protection | IP67/IP69K |
| Application | Low-pressure monitoring |
