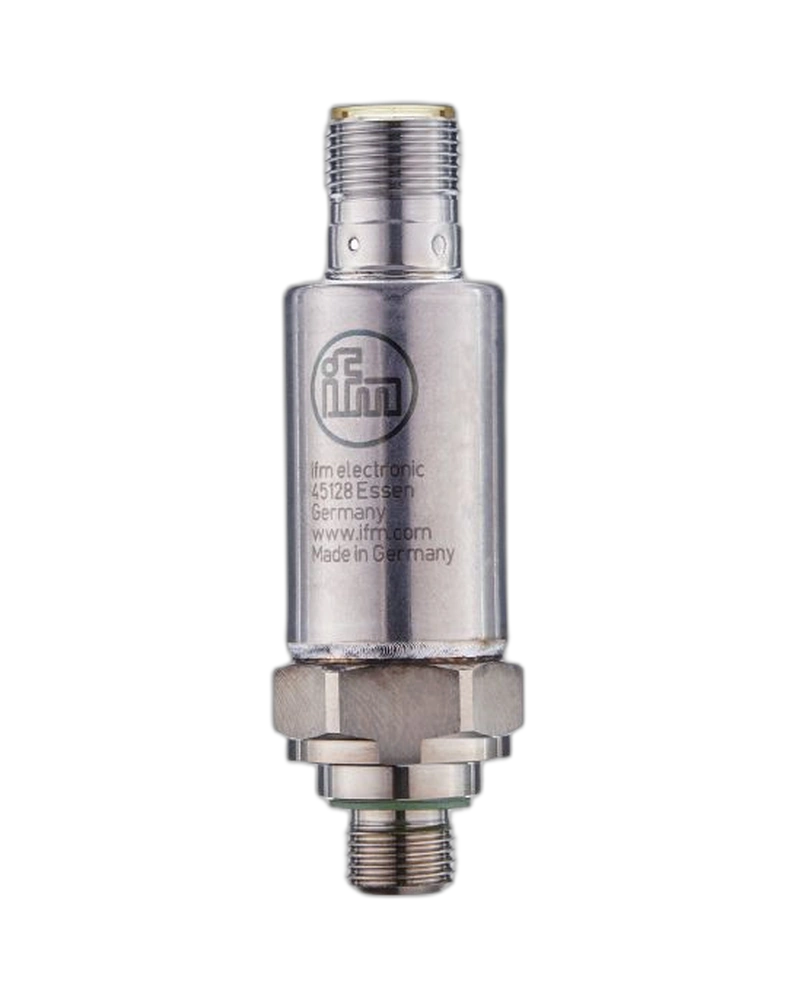

PV7702 is a compact pressure switch for reliable industrial pressure monitoring. It provides a 0–100 bar measuring range and two programmable switching outputs. The R1/4 process connection supports compatible industrial pressure installations. IO-Link enables digital configuration, diagnostics and process-data communication. Its robust metallic construction provides reliable performance under demanding conditions.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PV7702 continuously measures relative pressure up to 100 bar. Users can configure the switching and reset points for specific applications. Hysteresis and window functions allow different control strategies. Adjustable damping and switching delays help stabilise pressure switching. The fast electronic response supports automated machine control.
The sensor uses a metallic thin-film measuring element. Stainless-steel construction provides strong mechanical resistance. Integrated electrical protection supports dependable operation. Its compact cylindrical construction is suitable for restricted installation spaces. High shock and vibration resistance support demanding machinery.
PV7702 is suitable for hydraulic and pneumatic systems. It can monitor pumps, compressors and industrial pressure circuits. Programmable outputs can trigger alarms and machine-protection functions. IO-Link supports modern PLC and automation integration. The sensor is suitable for continuous industrial pressure monitoring.
0…100 bar range
R1/4 connection
Two digital outputs
IO-Link
PNP/NPN design
Programmable NO/NC
Configurable set points
Configurable reset points
Hysteresis mode
Window mode
Adjustable damping
Switching delays
Metallic thin-film cell
Stainless-steel construction
Fast response
Short-circuit protection
Overload protection
Reverse-polarity protection
IP67/IP69K
Industrial-grade reliability
Hydraulic systems
Pneumatic systems
Pump monitoring
Compressor monitoring
Pressure alarms
Machine protection
Industrial automation
PLC systems
Process monitoring
Machine diagnostics
Condition monitoring
Hydraulic power units
Preventive maintenance
Equipment protection
IO-Link systems
| Specification | Details |
|---|---|
| Model | PV7702 |
| Order code | PV-100MSER14-UFRVG/US |
| Pressure type | Relative |
| Measuring range | 0…100 bar |
| Equivalent | 0…1450 psi |
| Measuring element | Metallic thin-film |
| Digital outputs | 2 |
| Output | Switching + IO-Link |
| Electrical design | PNP/NPN |
| Output logic | NO/NC programmable |
| Process connection | R1/4 |
| Auxiliary thread | M5 |
| Supply voltage | 18…30 V DC |
| Current consumption | <15 mA |
| Switching current | 100 mA |
| Switching frequency | <170 Hz |
| Response | <3 ms |
| Switch-point accuracy | < ±0.5 % span |
| Repeatability | < ±0.05 % span |
| Linearity | < ±0.1 % BFSL / < ±0.2 % LS |
| Hysteresis | < ±0.2 % span |
| Long-term stability | < ±0.1 % span |
| Protection | IP67/IP69K |
| Communication | IO-Link 1.1 |
