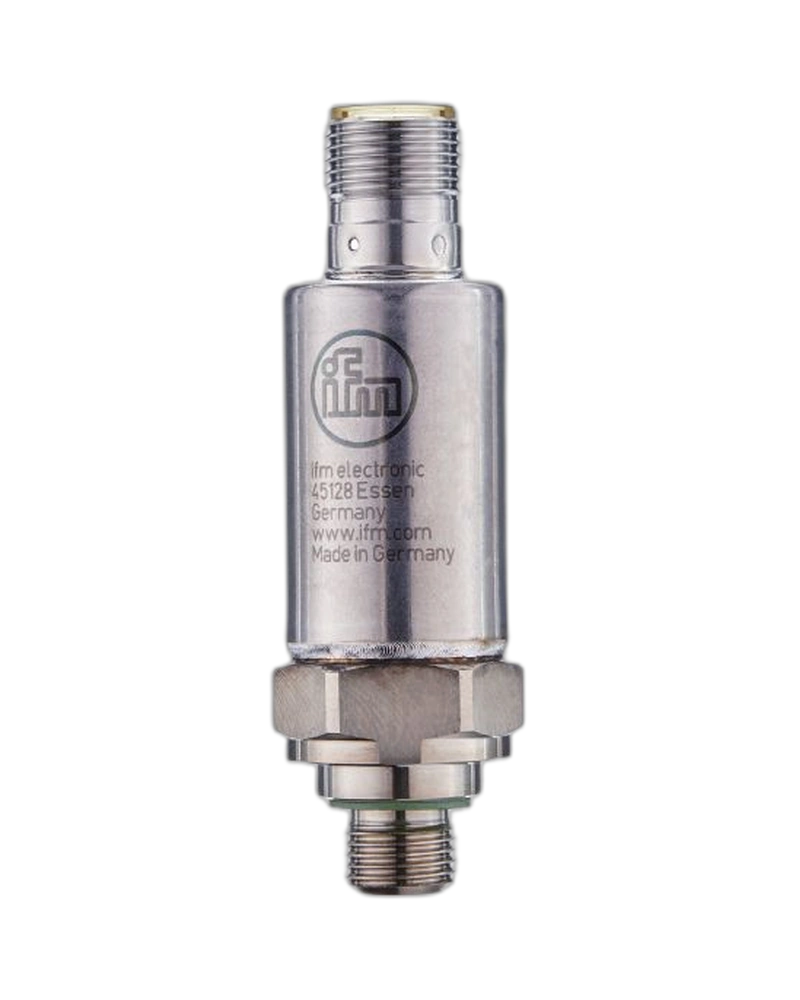

PV7623 is a robust pressure switch designed for industrial pressure monitoring up to 60 bar. It provides two programmable digital outputs and IO-Link communication. The 1/4-inch NPT process connection supports compatible industrial installations. Its metallic thin-film measuring cell provides stable pressure measurement. The stainless-steel housing supports reliable performance under shock and vibration.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PV7623 provides continuous relative pressure monitoring from 0 to 60 bar. The switching points can be configured for different pressure-control requirements. Hysteresis and window functions provide flexible switching behaviour. Adjustable damping helps improve stability in dynamic systems. IO-Link provides digital access to configuration and diagnostics.
The sensor is built around a metallic thin-film measuring cell. Stainless-steel construction provides excellent mechanical durability. Integrated overload and short-circuit protection improve electrical reliability. The sensor is designed for repeated pressure cycles. Its compact housing supports flexible installation on industrial machinery.
PV7623 is suitable for hydraulic and pneumatic pressure systems. It can monitor pumps, power units and machine pressure circuits. The outputs can activate alarms and protective functions. IO-Link enables integration with PLCs and industrial networks. It is suitable for applications requiring reliable programmable pressure switching.
0…60 bar range
1/4" NPT connection
Two digital outputs
IO-Link
PNP/NPN design
NO/NC configuration
Programmable set points
Programmable reset points
Hysteresis mode
Window mode
Adjustable damping
Switching delays
Metallic thin-film cell
Stainless-steel housing
Fast response
Short-circuit protection
Overload protection
Reverse-polarity protection
IP67/IP69K
High shock resistance
Hydraulic systems
Pneumatic systems
Pump monitoring
Power units
Pressure control
Machine protection
Pressure alarms
Industrial automation
PLC systems
Process monitoring
Condition monitoring
Machine diagnostics
Preventive maintenance
Equipment protection
IO-Link automation
| Specification | Details |
|---|---|
| Model | PV7623 |
| Order code | PV-060-SEN14-UFRVG/US |
| Pressure type | Relative |
| Measuring range | 0…60 bar |
| Equivalent | 0…870 psi |
| Measuring element | Metallic thin-film |
| Digital outputs | 2 |
| Communication | IO-Link |
| Electrical design | PNP/NPN |
| Output function | NO/NC programmable |
| Process connection | 1/4" NPT |
| Auxiliary thread | M5 |
| Supply | 18…30 V DC |
| Current consumption | <15 mA |
| Switching current | 100 mA |
| Switching frequency | <170 Hz |
| Response | <3 ms |
| Accuracy | < ±0.5 % span |
| Repeatability | < ±0.05 % span |
| Linearity | < ±0.1 % BFSL / < ±0.2 % LS |
| Hysteresis | < ±0.2 % span |
| Long-term stability | < ±0.1 % span |
| Protection | IP67/IP69K |
| Communication | IO-Link 1.1 |
