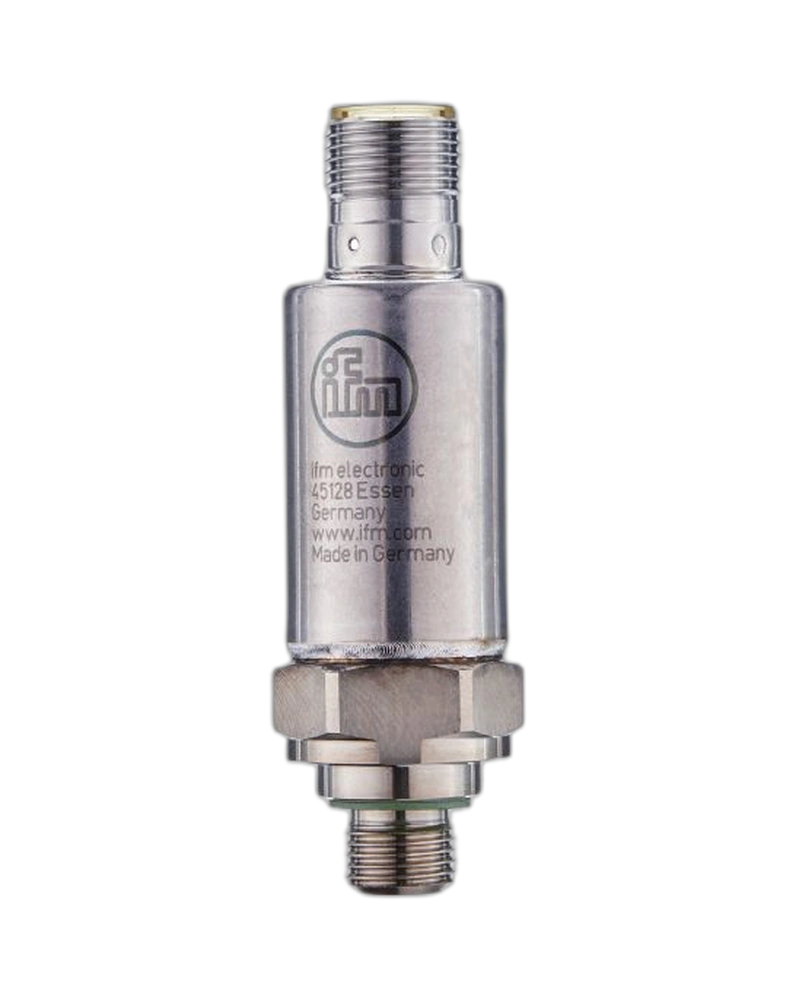

PV7604 is a compact pressure switch designed for low-pressure and vacuum monitoring. It provides a −1 to 10 bar measuring range for pneumatic and hydraulic applications. Two programmable outputs provide flexible switching functions. IO-Link enables digital parameterisation and diagnostic communication. The robust stainless-steel housing provides reliable operation in industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PV7604 can monitor both vacuum and low positive pressure. The switching thresholds can be programmed to suit individual machine requirements. Hysteresis and window modes allow flexible switching control. Damping and switching delays can be configured for stable operation. The fast response supports reliable pressure-based automation.
The sensor uses a metallic thin-film measuring element. Its stainless-steel construction supports mechanical durability and long service life. Electrical protection helps prevent damage from overload and short-circuit conditions. High shock and vibration resistance supports industrial applications. IP67/IP69K protection helps protect the sensor against environmental exposure.
PV7604 is suitable for pneumatic systems and vacuum applications. It can monitor compressors, suction systems and low-pressure circuits. The switching outputs can be used for machine alarms and protective functions. IO-Link supports integration into PLC-based automation systems. Its compact design is useful where installation space is limited.
−1…10 bar range
Vacuum measurement
Two digital outputs
IO-Link
PNP/NPN
NO/NC programmable
Configurable switching points
Configurable reset points
Hysteresis mode
Window mode
Adjustable damping
Switching delays
Metallic thin-film cell
Stainless-steel construction
Fast response
Short-circuit protection
Overload protection
Reverse-polarity protection
IP67/IP69K
Compact housing
Vacuum systems
Pneumatic systems
Low-pressure hydraulics
Compressors
Suction systems
Pressure alarms
Vacuum alarms
Machine protection
Industrial automation
Packaging equipment
Material handling
Machine diagnostics
Process monitoring
PLC systems
Preventive maintenance
| Specification | Details |
|---|---|
| Model | PV7604 |
| Order code | PV-010-SEN14-UFRVG/US |
| Pressure type | Relative / vacuum |
| Measuring range | −1…10 bar |
| Equivalent | −14.5…145 psi |
| Measuring element | Metallic thin-film |
| Digital outputs | 2 |
| Output | Switching + IO-Link |
| Electrical design | PNP/NPN |
| Output logic | NO/NC programmable |
| Process connection | 1/4" NPT |
| Auxiliary thread | M5 |
| Supply | 18…30 V DC |
| Current consumption | <15 mA |
| Switching current | 100 mA |
| Switching frequency | <170 Hz |
| Response | <3 ms |
| Switch-point accuracy | < ±0.5 % span |
| Repeatability | < ±0.05 % span |
| Linearity | < ±0.1 % BFSL / < ±0.2 % LS |
| Hysteresis | < ±0.2 % span |
| Long-term stability | < ±0.1 % span |
| Protection | IP67/IP69K |
| Communication | IO-Link 1.1 |
