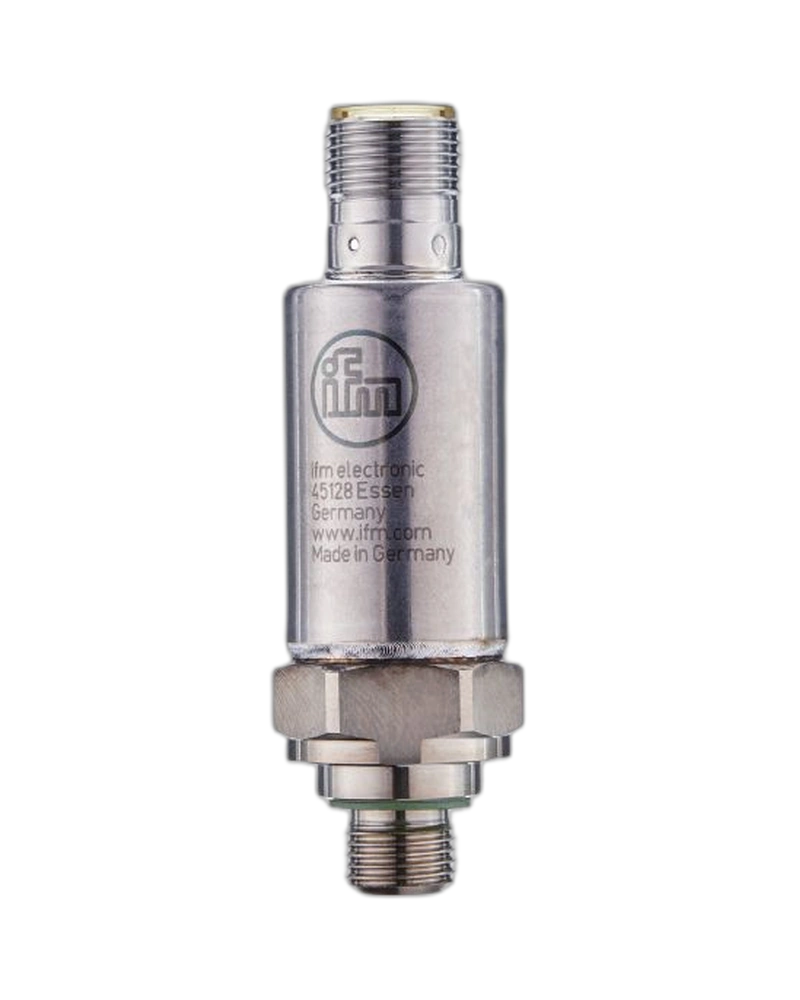

PV7602 is an electronic pressure switch designed for industrial systems requiring reliable pressure monitoring. It provides a 0–100 bar measuring range and two programmable outputs. Its 1/4-inch NPT connection supports compatible industrial pressure installations. IO-Link provides digital parameterisation and diagnostics. The compact stainless-steel construction offers dependable operation in demanding environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PV7602 measures relative pressure across a 0–100 bar range. Pressure set points and reset points can be configured to suit different processes. Hysteresis and window functions provide flexible switching behaviour. Damping and switching delays can reduce unwanted switching. The sensor provides fast electronic response for automated pressure control.
The metallic thin-film measuring cell supports stable pressure measurement. Stainless-steel construction provides durability and mechanical resistance. The sensor is suitable for liquids and gases. Integrated electrical protection helps protect the electronics. High shock and vibration resistance supports use on industrial machinery.
PV7602 can be used in hydraulic and pneumatic pressure circuits. It is suitable for pumps, compressors and machine-control systems. The switching outputs can be used for alarms and machine protection. IO-Link enables connection to modern PLC architectures. The sensor is suitable for automated pressure-monitoring systems.
0…100 bar range
1/4" NPT process connection
Two digital outputs
IO-Link
PNP/NPN design
Programmable NO/NC outputs
Adjustable set points
Adjustable reset points
Hysteresis function
Window function
Damping adjustment
Switching delay
Metallic thin-film cell
Stainless-steel construction
Fast response
Short-circuit protection
Overload protection
Reverse-polarity protection
IP67/IP69K
High vibration resistance
Hydraulic systems
Pneumatic systems
Pump monitoring
Compressor monitoring
Pressure alarms
Machine protection
Industrial automation
PLC systems
Process monitoring
Machine diagnostics
Condition monitoring
Hydraulic power units
Preventive maintenance
Equipment protection
IO-Link automation
| Specification | Details |
|---|---|
| Model | PV7602 |
| Order code | PV-100-SEN14-UFRVG/US |
| Pressure type | Relative |
| Measuring range | 0…100 bar |
| Equivalent | 0…1450 psi |
| Measuring element | Metallic thin-film |
| Digital outputs | 2 |
| Output | Switching + IO-Link |
| Electrical design | PNP/NPN |
| Output logic | NO/NC programmable |
| Process connection | 1/4" NPT |
| Auxiliary thread | M5 |
| Supply | 18…30 V DC |
| Current consumption | <15 mA |
| Switching current | 100 mA |
| Switching frequency | <170 Hz |
| Response | <3 ms |
| Accuracy | < ±0.5 % span |
| Repeatability | < ±0.05 % span |
| Linearity | < ±0.1 % BFSL / < ±0.2 % LS |
| Hysteresis | < ±0.2 % span |
| Long-term stability | < ±0.1 % span |
| Protection | IP67/IP69K |
| Communication | IO-Link 1.1 |
