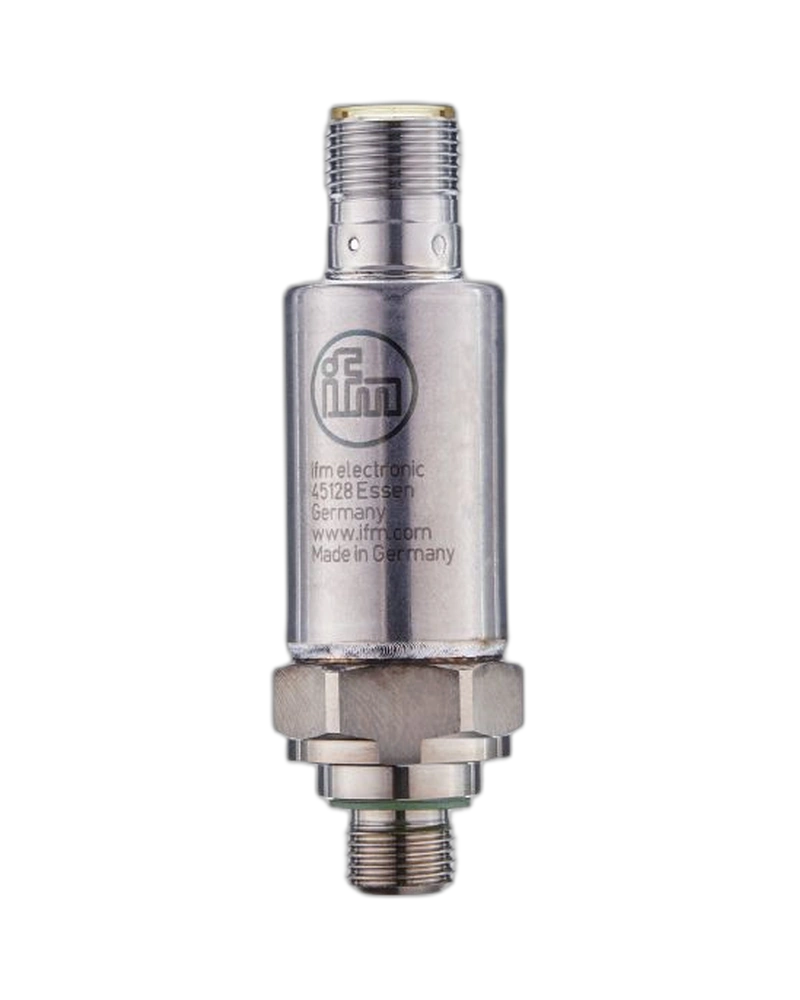

PV7600 is a robust pressure switch designed for industrial pressure monitoring. It provides a 0–400 bar measuring range with two programmable digital outputs. The 1/4-inch NPT process connection makes it suitable for installations using NPT pipe systems. IO-Link provides digital parameterisation, diagnostics and process data. Its stainless-steel housing offers high resistance to shock, vibration and repeated pressure cycles.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PV7600 provides continuous relative pressure measurement up to 400 bar. Switching points can be configured according to the pressure requirements of the application. The sensor supports normally open and normally closed output functions. Damping, switching delays and switching logic can be adjusted. A response time below 3 ms supports fast machine-control applications.
The device uses a metallic thin-film measuring cell for pressure measurement. Its 1/4-inch NPT connection supports industrial piping systems. The stainless-steel construction provides strong mechanical durability. Shock and vibration resistance support operation on demanding machinery. IP67/IP69K protection helps protect the device from environmental exposure.
PV7600 is suitable for hydraulic systems, pumps and industrial pressure-control equipment. It can provide pressure alarms and machine-protection signals. Two outputs can be configured for independent pressure conditions. IO-Link enables integration with PLCs and intelligent automation networks. Its robust construction makes it appropriate for demanding industrial installations.
0…400 bar range
1/4" NPT connection
Two digital outputs
IO-Link communication
PNP/NPN design
Programmable NO/NC outputs
Configurable set points
Configurable reset points
Hysteresis mode
Window mode
Adjustable damping
Switching delays
Metallic thin-film cell
Stainless-steel housing
Fast response
Short-circuit protection
Overload protection
Reverse-polarity protection
IP67/IP69K
High shock and vibration resistance
Hydraulic machinery
Hydraulic pumps
Pressure-control systems
Industrial automation
Machine protection
Pressure alarms
Power units
Process monitoring
Machine diagnostics
Condition monitoring
PLC systems
Equipment protection
Preventive maintenance
Hydraulic presses
IO-Link systems
| Specification | Details |
|---|---|
| Model | PV7600 |
| Order code | PV-400-SEN14-UFRVG/US |
| Pressure type | Relative |
| Measuring range | 0…400 bar |
| Equivalent | 0…5800 psi |
| Measuring cell | Metallic thin-film |
| Digital outputs | 2 |
| Output | Switching + IO-Link |
| Electrical design | PNP/NPN |
| Process connection | 1/4" NPT |
| Auxiliary thread | M5 |
| Supply voltage | 18…30 V DC |
| Current consumption | <15 mA |
| Switching current | 100 mA |
| Switching frequency | <170 Hz |
| Response time | <3 ms |
| Switch-point accuracy | < ±0.5 % span |
| Repeatability | < ±0.05 % span |
| Linearity | < ±0.1 % BFSL / < ±0.2 % LS |
| Hysteresis | < ±0.2 % span |
| Long-term stability | < ±0.1 % span |
| Protection | IP67/IP69K |
| Shock resistance | 500 g |
| Vibration resistance | 20 g |
