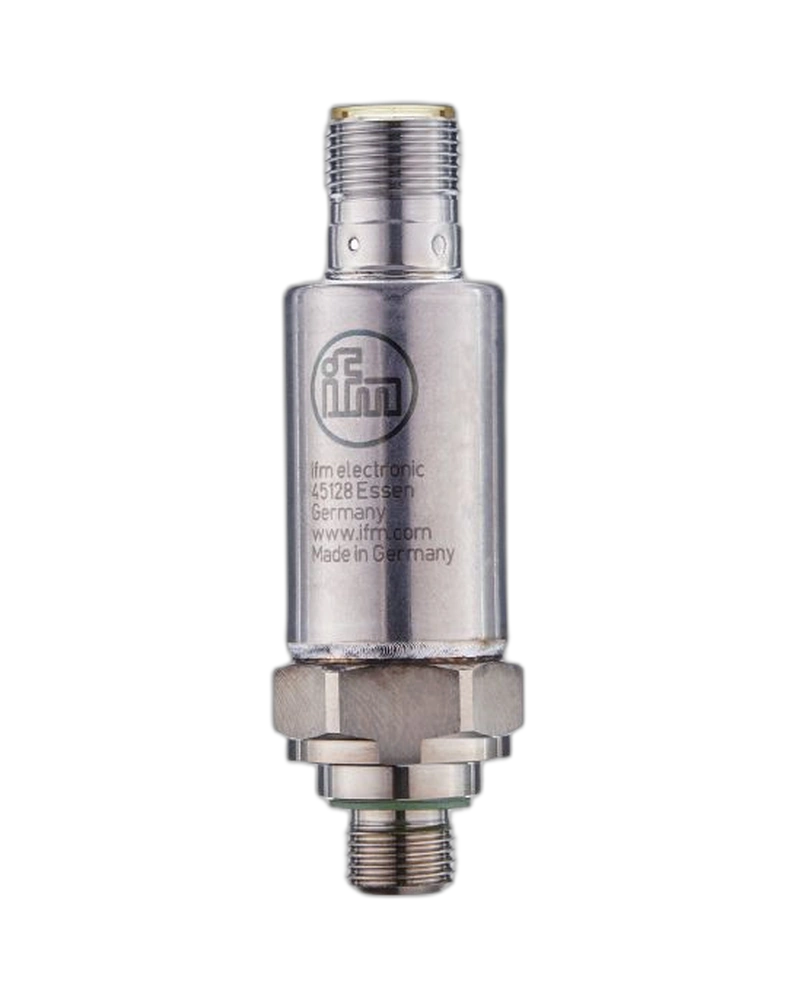

PV7023 is a programmable electronic pressure switch for medium-pressure monitoring. It provides a 0–60 bar measuring range for hydraulic and pneumatic systems. Two digital outputs provide flexible switching and machine-control functions. IO-Link enables remote parameterisation and diagnostics. Its robust stainless-steel construction makes it suitable for industrial automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PV7023 continuously monitors pressure up to 60 bar. Switching points and reset points can be programmed to match individual process requirements. Hysteresis and window functions provide flexible control options. Adjustable damping helps prevent unwanted switching caused by pressure fluctuations. The fast response supports reliable machine protection and process control.
The sensor uses a metallic thin-film measuring element for stable measurement. Its stainless-steel housing provides strong mechanical durability. Integrated overload and short-circuit protection supports reliable electrical operation. The sensor is designed for high vibration and shock resistance. IP-rated protection supports use in demanding industrial environments.
PV7023 is suitable for hydraulic machinery and pneumatic pressure systems. It can monitor pumps, power units and pressure-control circuits. The outputs can activate alarms or protective machine functions. IO-Link provides diagnostics and configuration capabilities for modern automation systems. The sensor is suitable for continuous industrial pressure monitoring.
0…60 bar measuring range
Two digital outputs
IO-Link communication
PNP/NPN electrical design
Programmable NO/NC
Adjustable switching points
Adjustable reset points
Hysteresis mode
Window mode
Adjustable damping
Switch-on delay
Switch-off delay
Metallic thin-film cell
Stainless-steel housing
Fast response
Short-circuit protection
Overload protection
Reverse-polarity protection
IP67/IP69K
Long pressure-cycle life
Hydraulic systems
Pneumatic systems
Pump monitoring
Hydraulic power units
Pressure control
Machine protection
Pressure alarms
Industrial automation
PLC systems
Process monitoring
Condition monitoring
Machine diagnostics
Preventive maintenance
Equipment protection
IO-Link automation
| Specification | Details |
|---|---|
| Model | PV7023 |
| Product type | Pressure switch with IO-Link |
| Order code | PV-060-SEG14-UFRVG/US |
| Pressure type | Relative |
| Measuring range | 0…60 bar |
| Equivalent | 0…870 psi |
| Measuring element | Metallic thin-film |
| Digital outputs | 2 |
| Communication | IO-Link |
| Electrical design | PNP/NPN |
| Output function | NO/NC programmable |
| Process connection | G 1/4 |
| Auxiliary thread | M5 |
| Supply | 18…30 V DC |
| Current consumption | <15 mA |
| Switching current | 100 mA |
| Switching frequency | <170 Hz |
| Response time | <3 ms |
| Switch-point accuracy | < ±0.5 % span |
| Repeatability | < ±0.05 % span |
| Linearity | < ±0.1 % BFSL / < ±0.2 % LS |
| Hysteresis | < ±0.2 % span |
| Protection | IP67/IP69K |
| Communication revision | IO-Link 1.1 |
