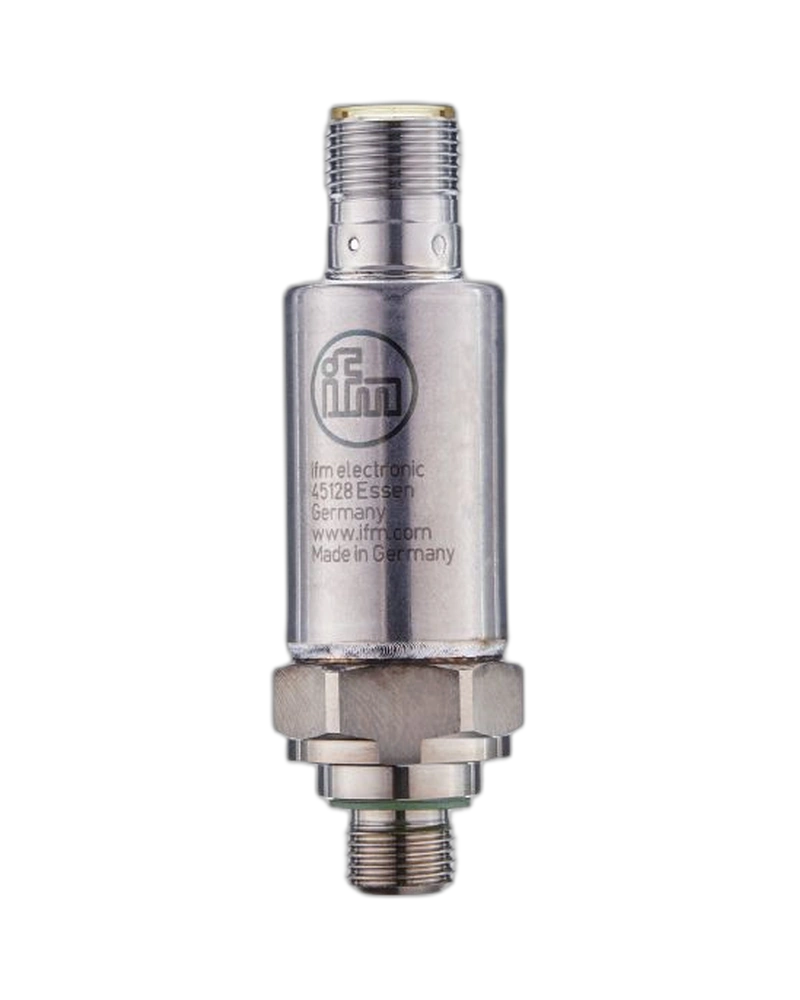

PV7004 is a compact pressure switch designed for low-pressure monitoring applications. It provides a −1 to 10 bar measuring range for hydraulic, pneumatic and vacuum systems. The device offers two programmable digital outputs with IO-Link communication. Its stainless-steel construction supports reliable performance in industrial environments. The compact sensor design allows convenient installation in space-limited machinery.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PV7004 provides reliable monitoring of low positive pressure and vacuum conditions. Its programmable switching points allow the sensor to be adapted to different machine requirements. Users can configure hysteresis or window switching modes. Switching delays and damping can also be adjusted through the sensor interface. IO-Link provides digital configuration and diagnostic capabilities.
The sensor uses a metallic thin-film pressure measuring element. Its robust construction is designed for industrial liquids and gases. Electrical protection helps protect the device from overload and short-circuit conditions. The compact housing allows easy integration into automated equipment. Its environmental protection makes it suitable for demanding machine installations.
PV7004 is suitable for pneumatic control, vacuum monitoring and low-pressure hydraulics. It can be installed in compressors, pumps and automated production equipment. The switching outputs can be used for alarms and machine protection. IO-Link enables integration with PLCs and intelligent automation networks. Its programmable functions reduce the need for additional external switching devices.
−1…10 bar range
Pressure and vacuum monitoring
Two digital outputs
IO-Link communication
PNP/NPN design
NO/NC programmable
Configurable switching thresholds
Configurable reset thresholds
Hysteresis mode
Window mode
Adjustable damping
Switching delays
Metallic thin-film cell
Stainless-steel housing
Fast response
Short-circuit protection
Overload protection
Reverse-polarity protection
IP67/IP69K
Compact industrial design
Pneumatic control
Vacuum systems
Low-pressure hydraulics
Compressors
Pumps
Machine protection
Pressure alarms
Vacuum alarms
Industrial automation
Process monitoring
Packaging machinery
Material handling
Machine diagnostics
PLC control
Preventive maintenance
| Specification | Details |
|---|---|
| Model | PV7004 |
| Product type | Pressure switch with IO-Link |
| Order code | PV-010-REG14-UFRVG/US |
| Pressure type | Relative / vacuum |
| Measuring range | −1…10 bar |
| Equivalent | −14.5…145 psi |
| Measuring element | Metallic thin-film |
| Digital outputs | 2 |
| Output | Switching + IO-Link |
| Electrical design | PNP/NPN |
| Output function | NO/NC programmable |
| Process connection | G 1/4 |
| Auxiliary thread | M5 |
| Supply | 18…30 V DC |
| Current consumption | <15 mA |
| Switching current | 100 mA |
| Switching frequency | <170 Hz |
| Response | <3 ms |
| Accuracy | < ±0.5 % span |
| Repeatability | < ±0.05 % span |
| Linearity | < ±0.1 % BFSL / < ±0.2 % LS |
| Hysteresis | < ±0.2 % span |
| Protection | IP67/IP69K |
| Communication | IO-Link 1.1 |
