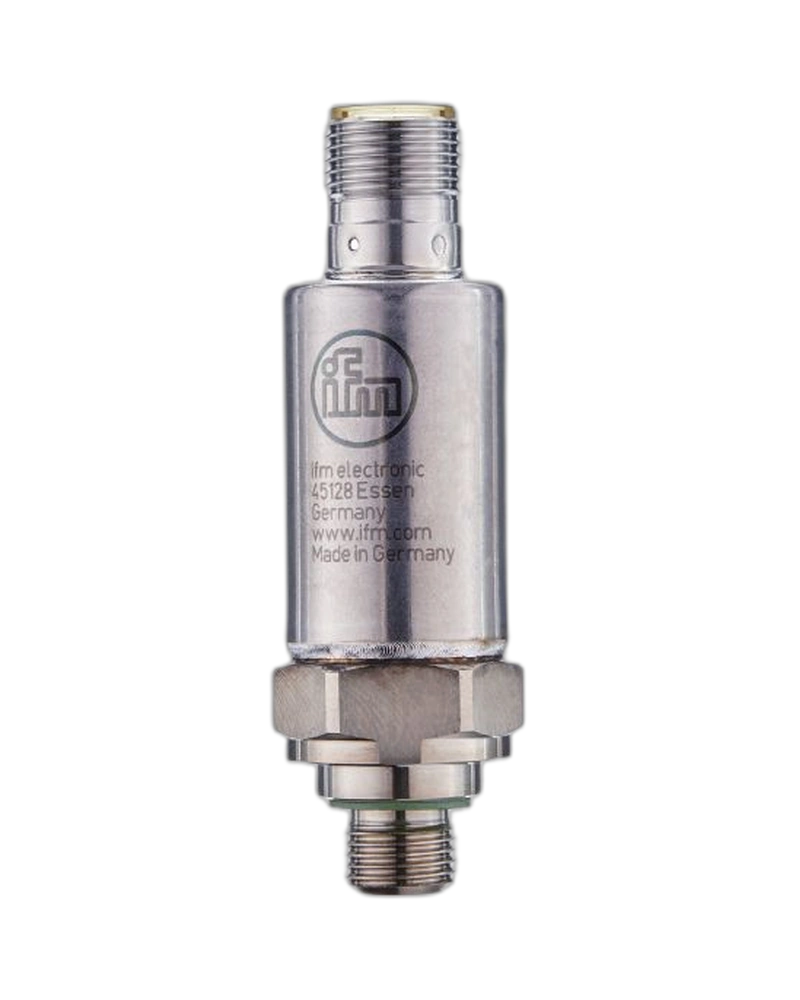

PV7002 is a compact electronic pressure switch designed for accurate monitoring of hydraulic and pneumatic pressure. It provides a 0–100 bar measuring range with programmable switching functions. The sensor features two digital outputs and IO-Link communication for intelligent machine integration. Its stainless-steel construction provides excellent resistance to shock, vibration and pressure cycling. The compact design makes PV7002 suitable for industrial automation and machine-control applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PV7002 continuously measures relative pressure across a 0–100 bar range. The switching points and reset points can be configured according to individual machine requirements. The sensor supports normally open and normally closed output functions. IO-Link enables convenient parameterisation, diagnostics and process-data communication. Fast electronic response supports reliable pressure-based machine control.
The sensor uses a metallic thin-film measuring cell for dependable pressure measurement. Its stainless-steel construction provides strong resistance to mechanical stress and demanding operating environments. Integrated protection functions help protect the electronics against overload and short circuits. The sensor is designed for long service life under repeated pressure cycles. Its compact cylindrical housing simplifies installation in restricted machine spaces.
PV7002 is suitable for hydraulic systems, pneumatic equipment and industrial automation. It can monitor pump pressure, system pressure and machine operating conditions. Programmable outputs can be used for alarms, machine protection and process control. IO-Link allows integration with modern PLC and automation architectures. The sensor is particularly useful where digital diagnostics and configurable pressure thresholds are required.
0–100 bar measuring range
Two programmable digital outputs
IO-Link communication
PNP/NPN electrical design
Normally open/closed configuration
Programmable switching points
Programmable reset points
Hysteresis and window functions
Adjustable switching delays
Adjustable damping
Metallic thin-film measuring cell
Relative pressure measurement
Fast response
High repeatability
Short-circuit protection
Overload protection
Reverse-polarity protection
IP67/IP69K protection
Shock and vibration resistance
Long pressure-cycle life
Hydraulic pressure monitoring
Pneumatic systems
Pump protection
Pressure alarms
Machine protection
Industrial automation
PLC control systems
Machine diagnostics
Process monitoring
Condition monitoring
Pressure-control systems
Compressor systems
Hydraulic power units
Preventive maintenance
IO-Link automation
| Specification | Details |
|---|---|
| Model | PV7002 |
| Product type | Pressure switch with IO-Link |
| Order code | PV-100-SEG14-UFRVG/US |
| Pressure type | Relative |
| Measuring range | 0…100 bar |
| Equivalent range | 0…1450 psi |
| Measuring technology | Metallic thin-film |
| Number of outputs | 2 digital outputs |
| Output signal | Switching signal + IO-Link |
| Electrical design | PNP/NPN |
| Output logic | NO/NC programmable |
| Process connection | G 1/4 external thread |
| Auxiliary thread | M5 internal thread |
| Supply voltage | 18…30 V DC |
| Current consumption | <15 mA |
| Switching current | 100 mA |
| Switching frequency | <170 Hz |
| Response time | <3 ms |
| Switch-point accuracy | < ±0.5 % span |
| Repeatability | < ±0.05 % span |
| Linearity | < ±0.1 % BFSL / < ±0.2 % LS |
| Hysteresis | < ±0.2 % span |
| Protection | IP67/IP69K |
| Communication | IO-Link 1.1 |
