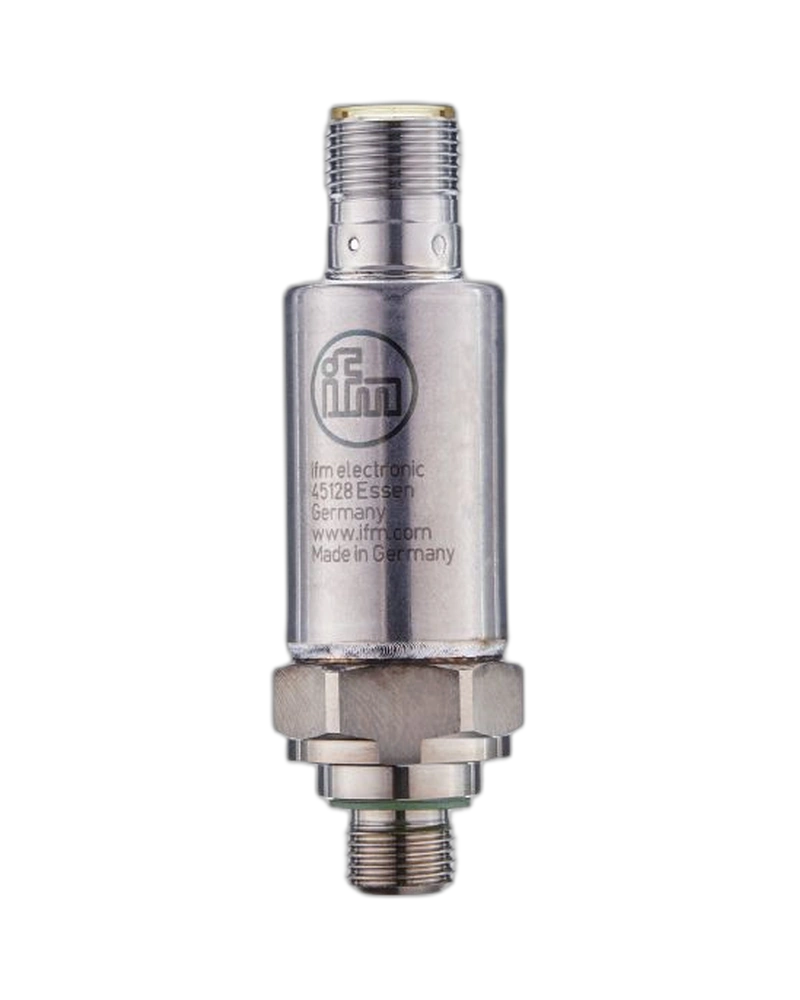

PV7001 is an intelligent pressure switch designed for industrial hydraulic pressure monitoring. It provides a 0–250 bar measuring range with programmable switching functions. The device features two digital outputs and IO-Link communication. Its robust construction supports demanding industrial pressure applications. Digital parameterisation makes it suitable for modern automated machine systems.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PV7001 provides configurable pressure set and reset points for machine-control applications. The switching thresholds can be adapted to different hydraulic system requirements. Two outputs allow multiple pressure-related control functions. IO-Link enables remote configuration and diagnostic communication. Programmable switching logic provides flexibility for different machine sequences.
The compact pressure switch is designed for reliable industrial installation. Its G 1/4 process connection supports secure pressure-system integration. Short-circuit and overload protection help protect the electronics. The device supports pressure cycling during normal machine operation. Its robust construction makes it suitable for hydraulic machinery.
PV7001 is suitable for pump monitoring and hydraulic pressure control. It can provide machine alarms when configured pressure limits are reached. IO-Link allows integration into PLC and automation architectures. The two outputs can support machine protection and process-control functions. Its programmable operation reduces the need for additional switching hardware.
0–250 bar range
Two digital outputs
IO-Link communication
Configurable switching points
Configurable reset points
Normally open/closed operation
Hysteresis mode
Window mode
Adjustable damping
Switch-on delay
Switch-off delay
Pressure diagnostics
Digital parameterisation
G 1/4 process connection
Short-circuit protection
Overload protection
Reverse-polarity protection
PLC integration
Machine protection
Industrial automation
Hydraulic systems
Hydraulic pumps
Power units
Machine protection
Pressure monitoring
Pressure alarms
Pressure control
Process monitoring
Machine diagnostics
Condition monitoring
Preventive maintenance
PLC automation
IO-Link systems
Industrial machinery
Automation equipment
| Specification | Details |
|---|---|
| Model | PV7001 |
| Product type | Pressure switch with IO-Link |
| Order code | PV-250-SEG14-UFRVG/US |
| Pressure type | Relative |
| Measuring range | 0…250 bar |
| Equivalent | Approx. 0…3625 psi |
| Digital outputs | 2 |
| Output function | NO/NC programmable |
| Communication | IO-Link |
| Set point | Configurable |
| Reset point | Configurable |
| Setting resolution | Programmable |
| Hysteresis mode | Yes |
| Window mode | Yes |
| Switching logic | Configurable |
| Switch-on delay | Configurable |
| Switch-off delay | Configurable |
| Damping | Configurable |
| Response | Approx. <3 ms family |
| Repeatability | < ±0.05 % span family |
| Hysteresis | < ±0.2 % span family |
| Long-term stability | < ±0.1 % span family |
| Process connection | G 1/4 |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Application | Industrial pressure control |
