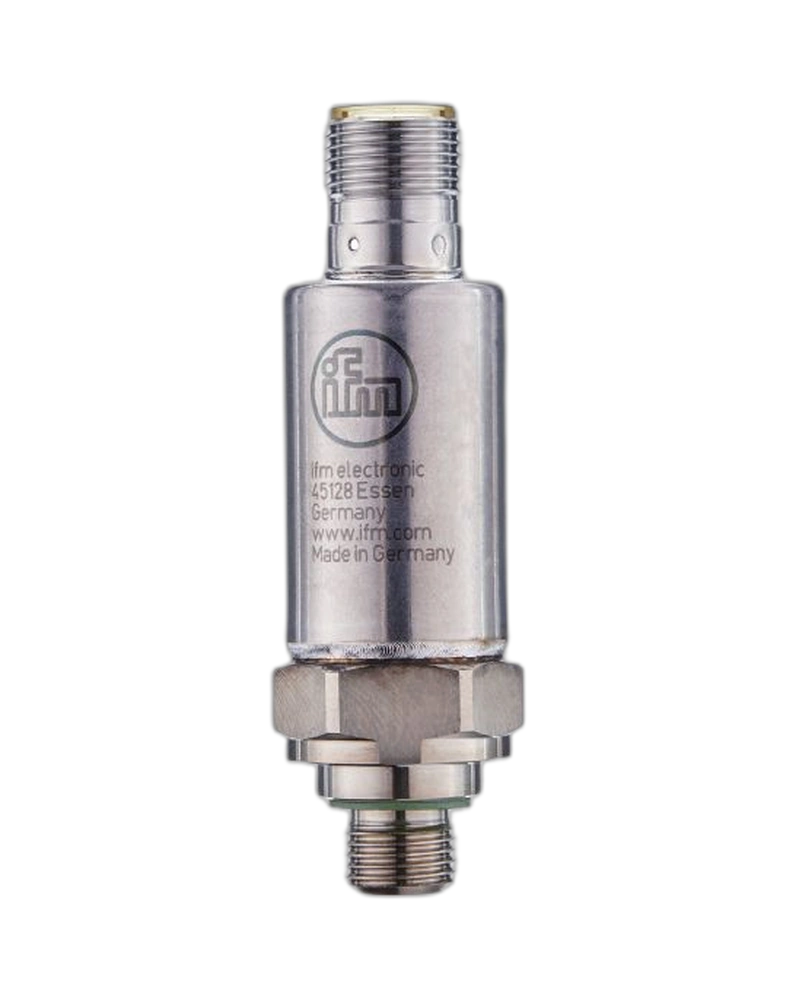

PV7000 is an intelligent pressure switch with IO-Link communication designed for industrial pressure monitoring. It provides a 0–400 bar measuring range for demanding hydraulic applications. The device provides two configurable digital outputs for machine-control functions. Its robust construction supports reliable operation in demanding environments. IO-Link provides digital parameterisation, diagnostics and process-data communication.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PV7000 provides programmable switching points across its pressure range. The set point can be configured from 4 to 400 bar, while the reset point can be configured from 2 to 398 bar. The switching resolution is 0.2 bar. Two digital outputs can be configured for different pressure-control functions. IO-Link supports remote configuration and diagnostics.
The pressure switch is designed for industrial hydraulic applications. Its G 1/4 process connection provides secure installation. Short-circuit and overload protection improve electrical reliability. The device supports configurable damping and switching delays. Its robust construction makes it suitable for demanding machinery.
PV7000 can be used for pump protection and hydraulic pressure monitoring. It can generate alarms when pressure crosses programmed limits. IO-Link enables integration with PLCs and industrial automation systems. The two outputs can support independent machine-control functions. Its programmable operation makes it suitable for flexible pressure-control applications.
0–400 bar measuring range
Two digital outputs
IO-Link communication
Configurable switching points
Configurable reset points
0.2 bar setting resolution
Normally open/closed operation
Hysteresis function
Window function
Switching delays
Adjustable damping
Short-circuit protection
Overload protection
Reverse-polarity protection
Fast response
Pressure diagnostics
Digital parameterisation
PLC integration
Industrial automation
Machine protection
Hydraulic systems
Hydraulic pumps
Power units
Pressure monitoring
Pressure alarms
Machine protection
Industrial automation
Process monitoring
Machine diagnostics
Condition monitoring
Preventive maintenance
PLC automation
IO-Link systems
Pressure control
Industrial machinery
| Specification | Details |
|---|---|
| Model | PV7000 |
| Product type | Pressure switch with IO-Link |
| Order code | PV-400-SEG14-UFRVG/US |
| Pressure type | Relative |
| Measuring range | 0…400 bar |
| Equivalent | 0…5800 psi / 0…40 MPa |
| Digital outputs | 2 |
| Output function | NO/NC programmable |
| Communication | IO-Link |
| Set point range | 4…400 bar |
| Reset point range | 2…398 bar |
| Setting increment | 0.2 bar |
| Factory SP1 | 100 bar |
| Factory rP1 | 92 bar |
| Factory SP2 | 300 bar |
| Factory rP2 | 292 bar |
| Response time | <3 ms |
| Switch-point accuracy | < ±0.5 % span |
| Repeatability | < ±0.05 % span |
| Linearity | < ±0.1 % BFSL / < ±0.2 % LS |
| Hysteresis | < ±0.2 % span |
| Long-term stability | < ±0.1 % span |
| Process connection | G 1/4 |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Application | Industrial hydraulics |
