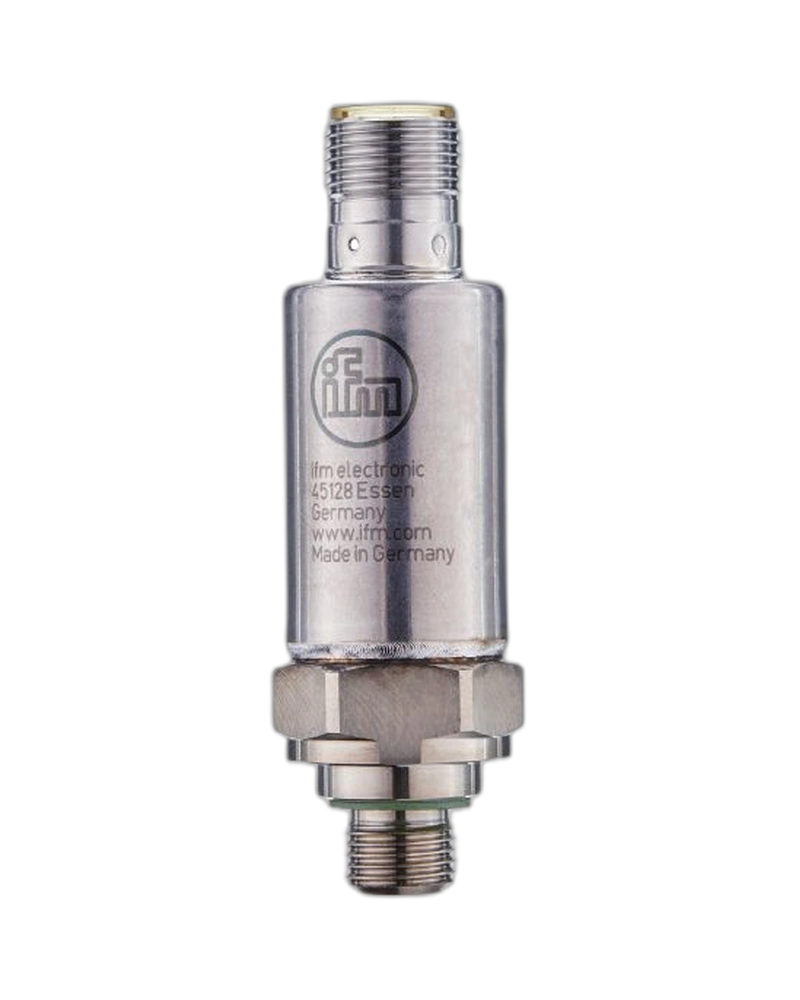

PV2804 is a compact IO-Link pressure switch designed for low-pressure applications. It provides a 0–10 bar measuring range for hydraulic and pneumatic systems. The device provides programmable switching functions for machine-control applications. Its stainless-steel housing provides reliable operation in demanding environments. IO-Link communication allows digital parameterisation and diagnostics.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PV2804 continuously monitors low system pressure and controls connected functions. Set and reset points can be configured for specific machine requirements. IO-Link provides digital access to configuration and diagnostic information. Switching logic and timing functions can be adapted to different processes. The device provides a flexible alternative to conventional pressure switches.
The compact housing is designed for installation in restricted spaces. Its G 1/8 process connection supports secure pressure-system installation. Stainless-steel construction provides mechanical durability. Electrical protection supports reliable operation. The device is suitable for repeated pressure cycles.
PV2804 is suitable for low-pressure hydraulic and pneumatic applications. It can monitor pump pressure, air pressure and machine operating conditions. IO-Link enables integration with modern PLC and automation systems. The programmable switching outputs support machine alarms and protection. The compact design allows flexible installation in industrial equipment.
0–10 bar
IO-Link pressure switch
Two digital outputs
Programmable set points
Programmable reset points
Hysteresis function
Window function
Switching delays
Adjustable damping
Digital diagnostics
G 1/8 process connection
Compact housing
Stainless-steel measuring element
Short-circuit protection
Overload protection
Reverse-polarity protection
PLC integration
IO-Link communication
Machine protection
Industrial automation
Pneumatic systems
Low-pressure hydraulics
Pump monitoring
Compressor systems
Machine protection
Pressure alarms
Industrial automation
Process monitoring
Machine diagnostics
Pressure control
Condition monitoring
Preventive maintenance
PLC automation
IO-Link systems
Industrial machinery
| Specification | Details |
|---|---|
| Model | PV2804 |
| Product type | Pressure switch with IO-Link |
| Order code | PV-010-REG18-UFRVG/US |
| Pressure type | Relative |
| Measuring range | 0…10 bar |
| Equivalent | Approx. 0…145 psi |
| Output | Switching + IO-Link |
| Digital outputs | 2 |
| Communication | IO-Link |
| Process connection | G 1/8 |
| Measuring element | Metal thin-film |
| Switching logic | Programmable |
| Set point | Configurable |
| Reset point | Configurable |
| Hysteresis | Configurable |
| Window mode | Configurable |
| Switch-on delay | Configurable |
| Switch-off delay | Configurable |
| Damping | Configurable |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Reverse-polarity protection | Yes |
| Housing | Compact stainless-steel design |
| Installation | Industrial pressure systems |
| Application | Low-pressure monitoring |
