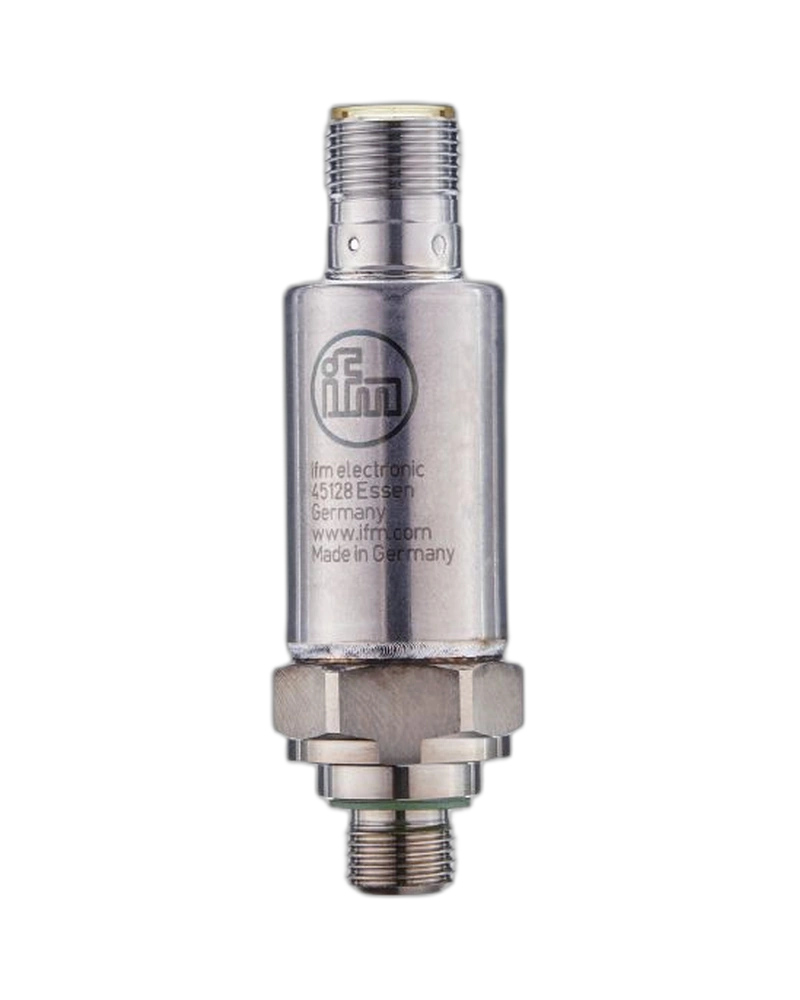

PV2802 is a compact IO-Link pressure switch designed for intelligent pressure monitoring. It provides a 0–100 bar measuring range for industrial hydraulic and pneumatic systems. The device provides configurable switching outputs for machine-control applications. Its stainless-steel construction supports reliable operation. Digital IO-Link communication enables convenient parameterisation and diagnostics.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PV2802 provides continuous pressure monitoring with programmable switching functions. Users can configure set points and reset points according to system requirements. IO-Link enables digital configuration and communication with automation systems. Switching logic and timing functions can be adapted to different applications. The device supports reliable pressure-based machine control.
The compact construction is suitable for space-limited industrial equipment. A G 1/8 process connection provides secure installation into compatible pressure ports. Stainless-steel pressure-contact construction supports mechanical durability. Electrical protection functions support reliable operation. The sensor is designed for repeated industrial pressure cycles.
PV2802 can be used for hydraulic pressure monitoring and pneumatic systems. It is suitable for pumps, compressors and machine-control applications. IO-Link allows remote parameterisation and diagnostic monitoring. The two digital outputs can be used for separate pressure-control functions. Its compact design supports integration into modern automation equipment.
0–100 bar
Pressure switch
IO-Link communication
Two digital outputs
Configurable switching points
Configurable reset points
Normally open/closed logic
Window/hysteresis functions
Switching delay
Adjustable damping
Digital diagnostics
G 1/8 process connection
M5 internal thread
Compact design
Stainless-steel measuring element
Short-circuit protection
Overload protection
Reverse-polarity protection
PLC integration
IO-Link automation
Hydraulic systems
Pneumatic systems
Pump monitoring
Compressor monitoring
Machine protection
Pressure alarms
Industrial automation
Process monitoring
Machine diagnostics
Pressure control
Condition monitoring
Preventive maintenance
PLC automation
IO-Link systems
Industrial machinery
| Specification | Details |
|---|---|
| Model | PV2802 |
| Product type | Pressure switch with IO-Link |
| Order code | PV-100-SEG18-UFRVG/US |
| Pressure type | Relative |
| Measuring range | 0…100 bar |
| Equivalent | 0…1450 psi |
| Output | Switching + IO-Link |
| Digital outputs | 2 |
| Communication | IO-Link |
| Process connection | G 1/8 male |
| Auxiliary connection | M5 internal thread |
| Switching logic | Parameterisable |
| Set point | Configurable |
| Reset point | Configurable |
| Hysteresis | Configurable |
| Window function | Configurable |
| Switch-on delay | Configurable |
| Switch-off delay | Configurable |
| Damping | Configurable |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Measuring element | Metal thin-film |
| Housing | Compact |
| Wetted material | Stainless steel family |
| Application | Industrial pressure switching |
