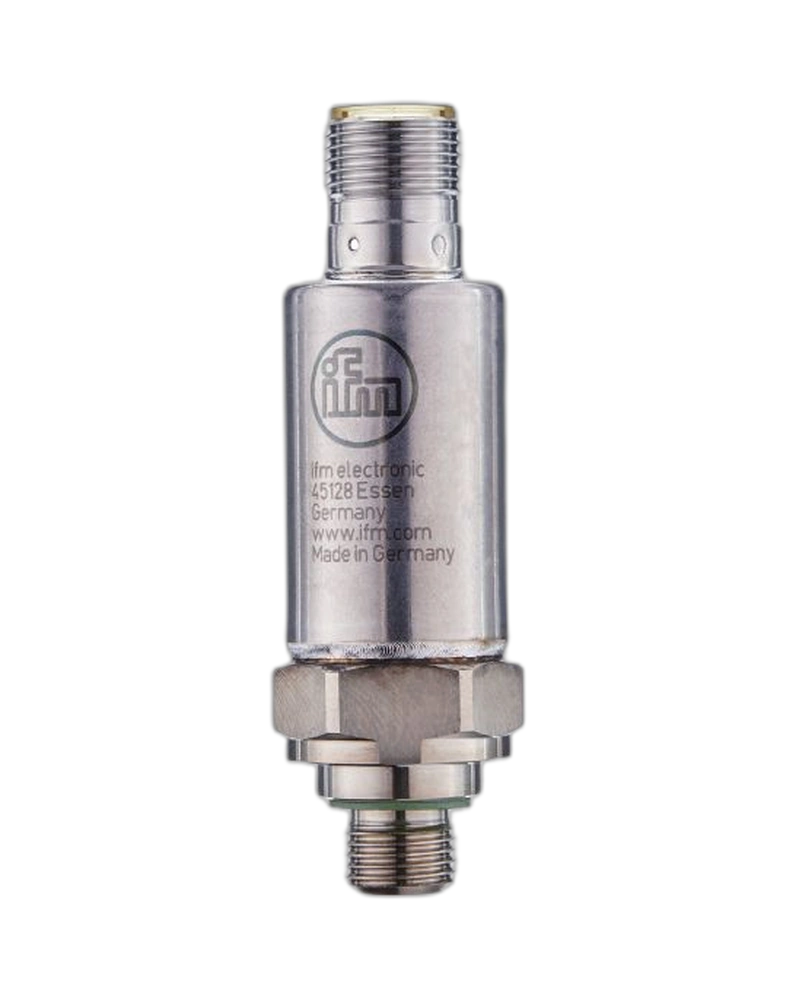

PV2801 is a compact pressure switch with IO-Link communication for intelligent pressure monitoring. It provides a 0–250 bar measuring range for demanding industrial applications. The device provides configurable switching functions for machine-control requirements. Its compact stainless-steel construction supports reliable operation. IO-Link enables convenient parameterisation, diagnostics and process-data communication.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PV2801 continuously monitors pressure and provides configurable switching outputs. Switching points can be adjusted according to machine requirements. IO-Link enables digital parameterisation without manual adjustment at the sensor. The device supports programmable switching logic and timing functions. This makes it suitable for automated pressure-control applications.
The pressure switch uses a compact stainless-steel construction. Its G 1/8 process connection is suitable for compatible pressure systems. Protection functions help safeguard the electronic circuitry. The design supports repeated pressure cycles and demanding industrial operation. Its small housing allows installation in space-restricted machinery.
PV2801 is suitable for hydraulic systems, machine tools and pressure-control equipment. It can monitor pump pressure and trigger protective machine functions. IO-Link supports remote parameter configuration and diagnostic information. The sensor can be integrated into modern PLC and automation systems. It is suitable for applications requiring intelligent pressure switching.
0–250 bar
Pressure switch
IO-Link communication
Configurable switching outputs
Programmable switching points
Programmable reset points
Normally open/closed logic
Switching delay functions
Damping adjustment
Digital parameterisation
Pressure diagnostics
G 1/8 process connection
Compact stainless-steel construction
Overload protection
Short-circuit protection
Reverse-polarity protection
Machine-control integration
PLC compatible
IO-Link master compatible
Industrial automation
Hydraulic machinery
Pressure-control systems
Pump monitoring
Machine tools
Industrial automation
Pneumatic equipment
Pressure alarms
Machine protection
Condition monitoring
Process monitoring
Equipment protection
Preventive maintenance
PLC automation
IO-Link systems
Industrial machinery
| Specification | Details |
|---|---|
| Model | PV2801 |
| Product type | Pressure switch with IO-Link |
| Order code | PV-250-SEG18-UFRVG/US |
| Pressure type | Relative |
| Measuring range | 0…250 bar |
| Equivalent | Approx. 0…3625 psi |
| Output type | Switching + IO-Link |
| Digital outputs | 2 |
| Communication | IO-Link |
| Process connection | G 1/8 male |
| Additional connection | M5 internal thread |
| Switching logic | Parameterisable |
| Set point | Configurable |
| Reset point | Configurable |
| Hysteresis mode | Configurable |
| Window mode | Configurable |
| Switch-on delay | Configurable |
| Switch-off delay | Configurable |
| Damping | Configurable |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Housing | Compact |
| Measuring element | Thin-film |
| Wetted material | Stainless steel family |
| Application | Industrial pressure switching |
