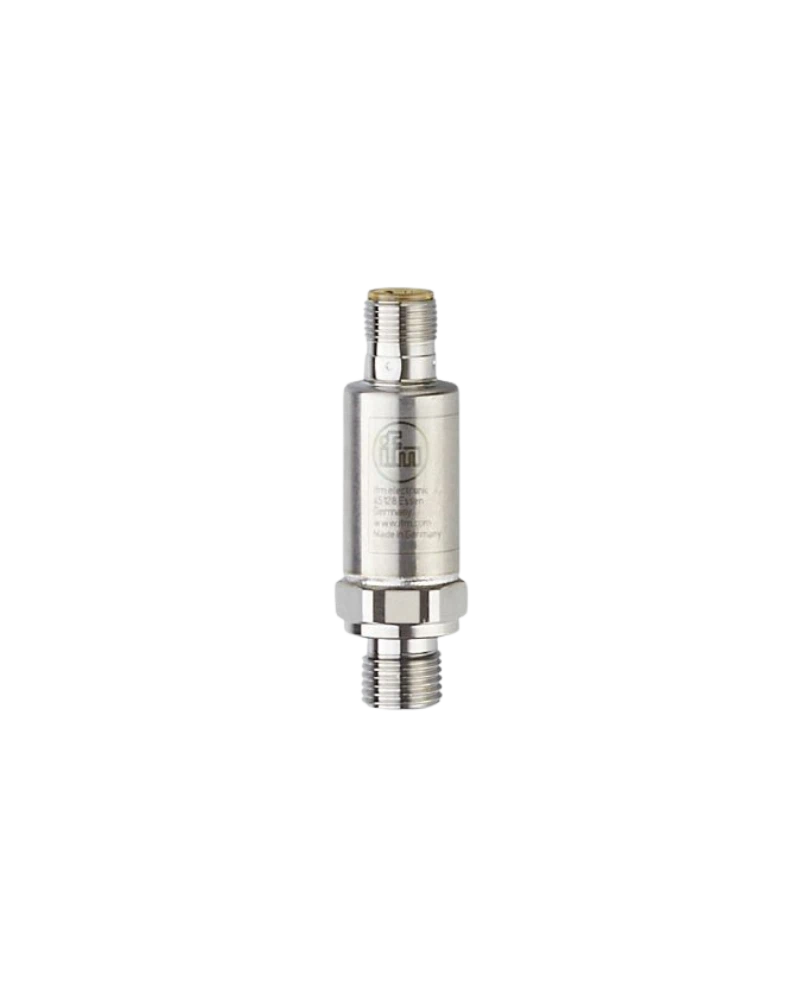

PV2123 is a compact electronic pressure switch designed for intelligent pressure monitoring. It provides a fixed 0–60 bar measuring range for industrial pressure applications. The device combines configurable switching outputs with IO-Link communication. Its compact stainless-steel construction supports reliable operation in demanding environments. The sensor allows pressure thresholds and operating parameters to be configured for specific applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PV2123 provides pressure monitoring with programmable switching functions. Switching points can be configured according to the requirements of the connected system. IO-Link provides digital communication for parameterisation and diagnostic information. The device can support normally open and normally closed switching logic. Its fast electronic response helps support reliable machine-control functions.
The compact stainless-steel construction is designed for industrial pressure applications. Its threaded process connection provides secure installation in compatible pressure circuits. Protection against overload and short circuits supports dependable operation. The sensor is designed for repeated pressure cycles. Its compact body makes it suitable for machines with limited installation space.
PV2123 can be used for pump monitoring, pressure alarms and machine protection. IO-Link enables parameterisation and diagnostic communication through compatible masters. It can support automated pressure-control processes and condition monitoring. The device is suitable for hydraulic and pneumatic systems. Its programmable functionality reduces the need for separate switching hardware.
0–60 bar measuring range
Pressure switch
IO-Link communication
Two configurable switching outputs
Programmable switching points
Normally open/closed operation
Configurable switching logic
Switch-on/off delay
Adjustable damping
Relative pressure measurement
G 1/4 process connection
Compact construction
Stainless-steel pressure interface
Short-circuit protection
Overload protection
Reverse-polarity protection
Digital parameterisation
Diagnostic data
Machine-control integration
Industrial automation
Hydraulic systems
Pneumatic systems
Pump monitoring
Pressure alarms
Machine protection
Industrial automation
Pressure control
Machine diagnostics
Condition monitoring
Process monitoring
Equipment protection
Preventive maintenance
PLC automation
IO-Link automation
Machine tools
| Specification | Details |
|---|---|
| Model | PV2123 |
| Product type | Pressure switch with IO-Link |
| Order code | PV-060-SEG14-UFRVG/US |
| Pressure type | Relative |
| Measuring range | 0…60 bar |
| Equivalent | Approx. 0…870 psi |
| Output type | Switching + IO-Link |
| Digital outputs | 2 |
| Switching logic | Parameterisable |
| Process connection | G 1/4 |
| Electrical connection | M12 family |
| Communication | IO-Link |
| IO-Link mode | Parameterisation/diagnostics |
| Switching points | Configurable |
| Reset points | Configurable |
| Damping | Configurable |
| Switch-on delay | Configurable |
| Switch-off delay | Configurable |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Pressure measurement | Electronic |
| Housing | Compact |
| Wetted material | Stainless steel family |
| Application | Industrial pressure monitoring |
| Control integration | PLC / IO-Link master |
