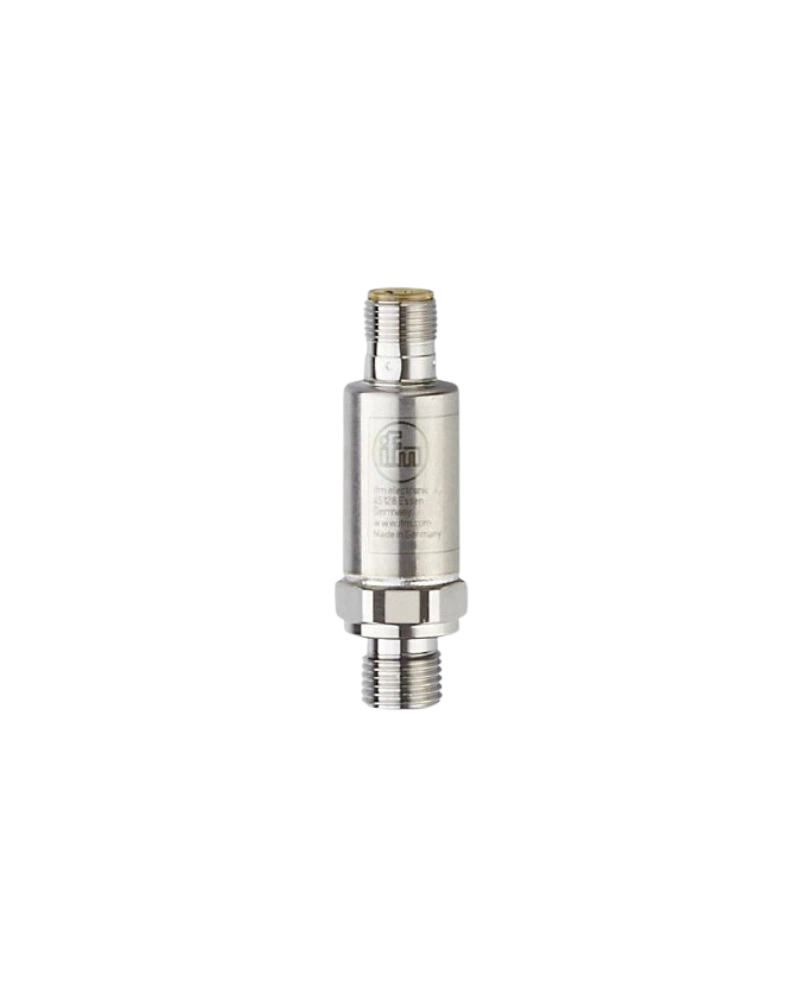

PU8560 is a high-pressure transmitter designed for mobile hydraulic systems. It provides a fixed 0–600 bar measuring range. The transmitter delivers a 0.5–4.5 V analogue output for machine-control applications. Its stainless-steel construction supports demanding hydraulic environments. The compact design provides reliable pressure monitoring without requiring a display.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PU8560 provides continuous relative pressure measurement up to 600 bar. Its proportional output provides pressure information to compatible controllers. Fast response supports dynamic hydraulic pressure monitoring. High repeatability supports consistent machine-control signals. The fixed range simplifies pressure sensor selection.
The transmitter uses a compact stainless-steel measuring construction. It is designed for strong resistance to shock and vibration. IP67/IP69K protection supports demanding mobile applications. Electrical protection helps maintain dependable operation. Its compact form factor allows flexible installation.
PU8560 is suitable for high-pressure hydraulic machinery and mobile equipment. It can be used on hydraulic pumps and power units. Pressure information can support diagnostics, alarms and equipment protection. It is suitable for construction, agricultural and off-highway machinery. The analogue output supports conventional machine-control systems.
0–600 bar
0.5–4.5 V output
Relative pressure
G 1/4 connection
M12 connector
High-pressure measurement
Stainless-steel construction
Fast response
High repeatability
Low hysteresis
Long-term stability
IP67/IP69K
Shock resistance
Vibration resistance
Overload protection
Short-circuit protection
Reverse-polarity protection
Mobile application
PLC/controller integration
Pressure monitoring
High-pressure hydraulics
Construction machinery
Agricultural equipment
Off-highway vehicles
Hydraulic pumps
Hydraulic power units
Heavy machinery
Pressure monitoring
Pressure control
Machine diagnostics
Pressure alarms
Equipment protection
Preventive maintenance
Mobile automation
Machine control
| Specification | Details |
|---|---|
| Model | PU8560 |
| Order code | PU-600-SEG14-C-DVG/US |
| Pressure type | Relative |
| Measuring range | 0…600 bar |
| Equivalent | 0…8700 psi |
| Output | 0.5…4.5 V |
| Process connection | G 1/4 male |
| Electrical connection | M12 |
| Supply | 8…32 V DC |
| Current consumption | <12 mA |
| Load resistance | ≥2000 Ω |
| Measuring cell | Thin-film |
| Cell material | Stainless steel |
| Response | Approx. 2 ms |
| Repeatability | < ±0.05 % span |
| Characteristics deviation | < ±0.8 % span |
| Linearity | < ±0.25 % BFSL / < ±0.5 % LS |
| Hysteresis | < ±0.2 % span |
| Long-term stability | < ±0.1 % span |
| Medium temperature | −40…125 °C |
| Ambient temperature | −40…100 °C |
| Protection | IP67/IP69K |
| Shock resistance | High |
| Vibration resistance | High |
| Application | High-pressure hydraulics |
