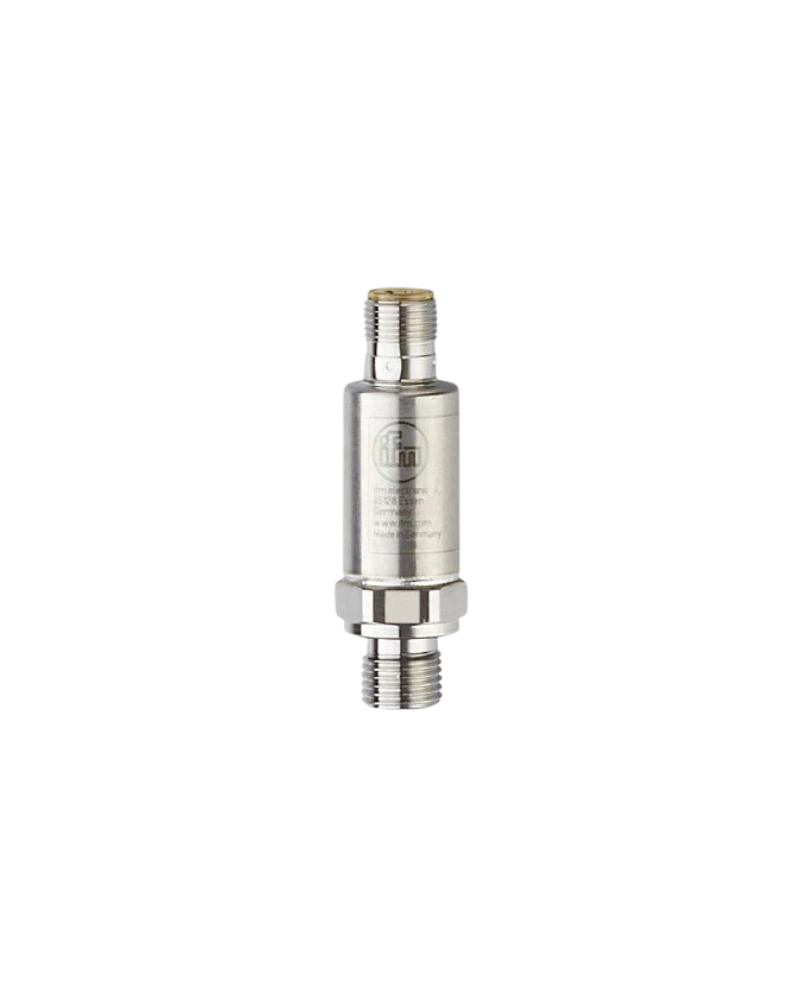

PU8523 is a compact 0–60 bar pressure transmitter designed for mobile machinery. It provides a 0.5–4.5 V analogue output for continuous pressure feedback. The stainless-steel measuring construction provides reliable performance in demanding environments. Its compact design allows installation in restricted machine spaces. The transmitter is suitable for hydraulic and pneumatic pressure monitoring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PU8523 continuously measures relative pressure up to 60 bar. The analogue output provides proportional pressure information to machine controllers. Fast response supports dynamic pressure monitoring. High repeatability helps maintain stable pressure feedback. Its fixed range simplifies application selection.
The transmitter is built around compact stainless-steel pressure measuring technology. It is designed for high vibration and shock environments. IP67/IP69K protection supports mobile-machine installations. Electrical protection helps safeguard the transmitter during common faults. The compact housing supports flexible installation.
PU8523 is suitable for medium-pressure hydraulic circuits and mobile equipment. It can be used in pumps, hydraulic power units and pressure-control systems. Pressure feedback can support machine diagnostics and equipment protection. It is suitable for construction and agricultural machinery. The analogue output enables integration with compatible controllers.
0–60 bar
0.5–4.5 V output
Relative pressure
G 1/4 connection
M12 connector
Stainless-steel measuring cell
Compact design
Fast response
High repeatability
Low hysteresis
Long-term stability
IP67/IP69K
Shock resistance
Vibration resistance
Overload protection
Short-circuit protection
Reverse-polarity protection
Mobile-machine compatible
Analogue control integration
Hydraulic monitoring
Mobile hydraulics
Construction machinery
Agricultural machinery
Off-highway vehicles
Hydraulic pumps
Power units
Pressure monitoring
Pressure control
Machine diagnostics
Pressure alarms
Equipment protection
Preventive maintenance
Mobile automation
Industrial automation
Machine control
| Specification | Details |
|---|---|
| Model | PU8523 |
| Order code | PU-060-SEG14-C-DVG/US |
| Pressure type | Relative |
| Measuring range | 0…60 bar |
| Equivalent | 0…870 psi |
| Output | 0.5…4.5 V |
| Process connection | G 1/4 male |
| Electrical connection | M12 |
| Supply | 8…32 V DC |
| Current consumption | <12 mA |
| Load resistance | ≥2000 Ω |
| Measuring cell | Thin-film |
| Cell material | Stainless steel |
| Response | Approx. 2 ms |
| Repeatability | < ±0.05 % span |
| Characteristics deviation | < ±0.8 % span |
| Linearity | < ±0.25 % BFSL / < ±0.5 % LS |
| Hysteresis | < ±0.2 % span |
| Long-term stability | < ±0.1 % span |
| Medium temperature | −40…125 °C |
| Ambient temperature | −40…100 °C |
| Protection | IP67/IP69K |
| Shock resistance | High |
| Vibration resistance | High |
| Application | Mobile hydraulics |
