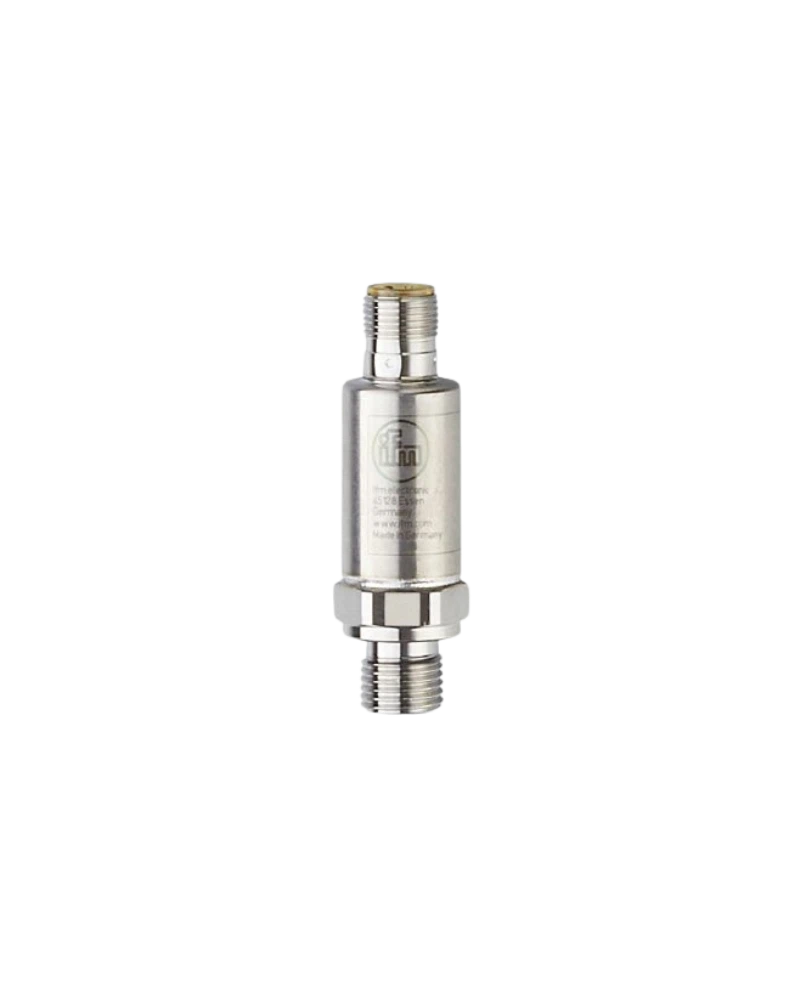

PU5443 is a compact 0–40 bar industrial pressure transmitter. It provides a 0–10 V analogue output for pressure monitoring and machine-control systems. Its stainless-steel measuring cell is designed for reliable operation. The G 1/4 connection supports secure installation in compatible pressure circuits. The compact design makes it suitable for industrial machinery with restricted space.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PU5443 provides continuous relative pressure measurement in hydraulic and industrial systems. The 40 bar range is suitable for low- and medium-pressure applications. The proportional voltage output provides continuous pressure feedback. Fast response supports dynamic machine-control requirements. The transmitter is designed for stable measurement over repeated pressure cycles.
High repeatability supports consistent pressure measurement. Low hysteresis helps maintain measurement stability. Stainless-steel construction provides mechanical strength and durability. The fixed measuring range simplifies application engineering. The analogue output can be processed by compatible PLC systems.
PU5443 is suitable for industrial hydraulics, pumps and process equipment. It can be used in machine-control and pressure-monitoring applications. Pressure feedback can support diagnostics and preventive maintenance. Its compact housing enables flexible mounting. IP-rated protection supports dependable industrial use.
0–40 bar
0–10 V output
Relative pressure
G 1/4 connection
16–36 V DC
Stainless-steel measuring cell
Compact housing
Fast response
High repeatability
Low hysteresis
Low linearity error
Long-term stability
IP67/IP69K
Shock resistance
Vibration resistance
Overload protection
Short-circuit protection
Reverse-polarity protection
PLC integration
Industrial design
Industrial hydraulics
Pumps
Compressors
Process equipment
Hydraulic power units
Machine tools
Pressure monitoring
Pressure control
Machine diagnostics
Pressure alarms
Equipment protection
Preventive maintenance
PLC automation
Industrial automation
Machine control
| Specification | Details |
|---|---|
| Model | PU5443 |
| Order code | PU-040-SEG14-B-DVG/US//W |
| Pressure type | Relative |
| Measuring range | 0…40 bar |
| Equivalent | Approx. 0…580 psi |
| Output | 0…10 V |
| Process connection | G 1/4 |
| Supply | 16…36 V DC |
| Measuring cell | Stainless steel |
| Housing | Compact |
| Wetted material | Stainless steel |
| Response | Approx. 1 ms |
| Repeatability | < ±0.05 % span |
| Linearity error | < ±0.5 % span |
| Hysteresis | < ±0.2 % span |
| Long-term stability | < ±0.1 % span |
| TEMPCO | Low |
| Medium temperature | −40…90 °C family |
| Ambient temperature | −40…90 °C family |
| Protection | IP67/IP69K |
| Shock | High |
| Vibration | High |
| Overload | Yes |
| Application | Industrial |
