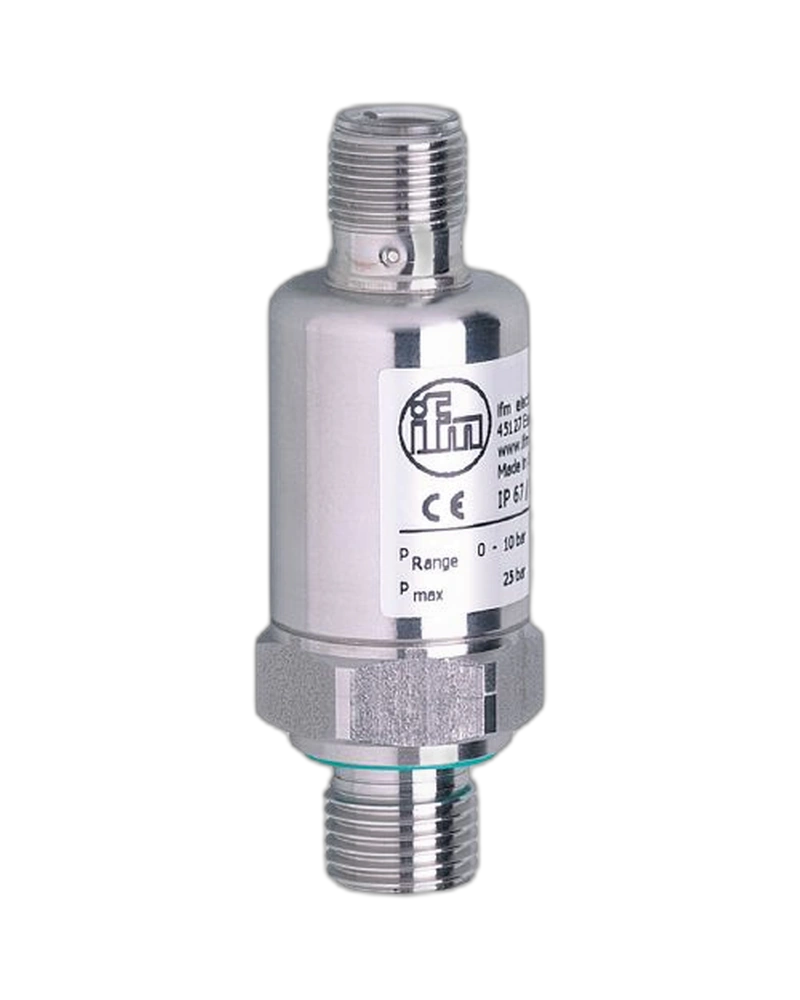

PT9554 is a compact 0–10 bar pressure transmitter designed for low-pressure measurement. It provides a 0–10 V analogue output for industrial and mobile control systems. The stainless-steel housing provides reliable operation in demanding environments. Its G 1/4 connection enables straightforward pressure-port installation. The transmitter is suitable for pumps, compressors, pneumatic circuits and process equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PT9554 continuously measures relative pressure and supplies a proportional voltage signal. The 0–10 bar range is suitable for low-pressure monitoring applications. Its compact design allows installation in restricted spaces. High repeatability supports stable measurement performance. The transmitter can be integrated into PLC and machine-control systems.
0…10 bar
0–10 V output
Relative pressure
G 1/4 process connection
M12 connector
16–36 V DC
Stainless steel
Compact body
High repeatability
Low linearity error
Low hysteresis
Long-term stability
IP67/IP69K
High shock resistance
High vibration resistance
Liquid/gas compatible
Pressure overload capability
PLC integration
Machine diagnostics
Industrial design
Pneumatic systems
Low-pressure hydraulics
Pumps
Compressors
Industrial machinery
Process equipment
Pressure monitoring
Pressure control
Pressure alarms
Machine diagnostics
Equipment protection
Preventive maintenance
PLC automation
Industrial automation
Mobile machinery
| Specification | Details |
|---|---|
| Model | PT9554 |
| Order code | PT-010-RBG14-B-DVG/US//W |
| Pressure type | Relative |
| Measuring range | 0…10 bar |
| Equivalent | 0…145 psi |
| Output | 0…10 V |
| Process connection | G 1/4 |
| Connector | M12 |
| Supply | 16…36 V DC |
| Current consumption | <6 mA |
| Housing | Stainless steel |
| Media | Liquids/gases |
| Medium temperature | −25…90 °C |
| Pressure rating | High |
| Burst capability | High |
| Repeatability | < ±0.1 % |
| Characteristics deviation | < ±1.0 % |
| Linearity | < ±0.25 % BFSL |
| Hysteresis | < ±0.2 % |
| Long-term stability | < ±0.1 % |
| Protection | IP67/IP69K |
| Shock resistance | High |
| Vibration resistance | High |
| Application | Industrial/mobile |
