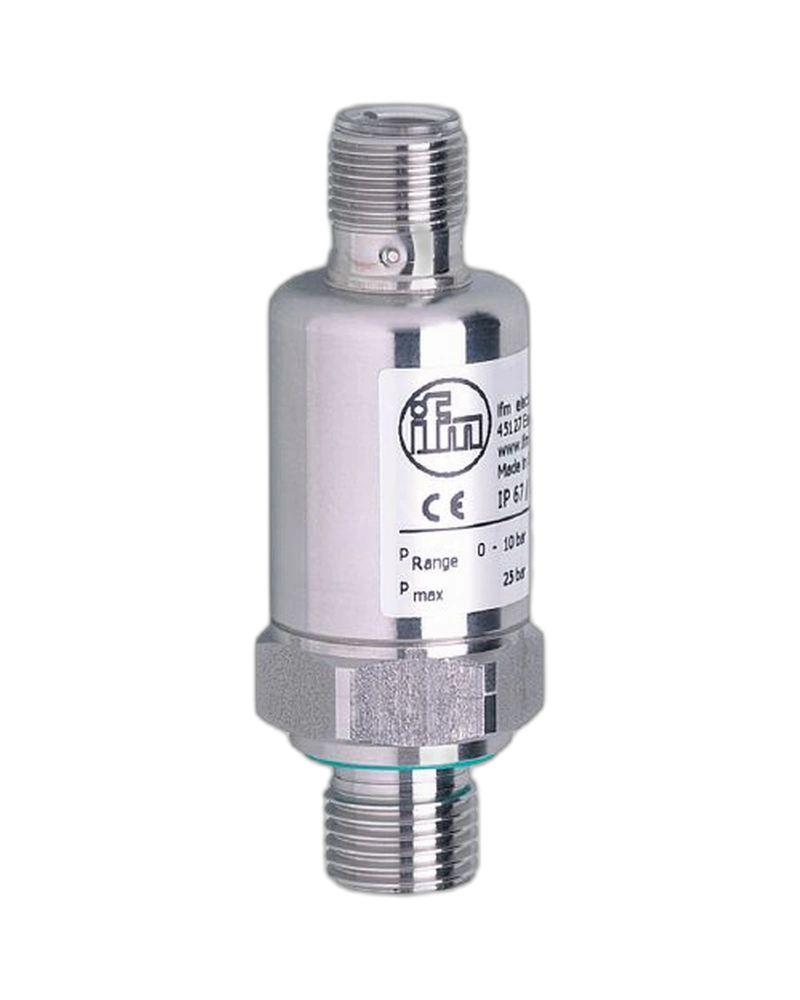

PT9544 is a compact 0–10 bar pressure transmitter designed for low-pressure industrial measurement. It provides a 0–10 V analogue output for automation and monitoring systems. Its stainless-steel housing provides durability in industrial environments. The G 1/4 process connection supports secure installation. It is suitable for pressure monitoring in pumps, compressors and process equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PT9544 continuously measures relative pressure within a 0–10 bar range. Its voltage output provides proportional pressure information to controllers. The compact construction allows installation in restricted spaces. High repeatability supports stable measurement over time. The transmitter can be used for machine protection, process control and preventive maintenance.
0…10 bar
0–10 V output
Relative pressure
G 1/4 connection
16–36 V DC
Stainless-steel housing
Compact design
High repeatability
Low hysteresis
Low linearity error
Long-term stability
High shock resistance
High vibration resistance
IP67/IP69K
Liquid/gas measurement
Pressure monitoring
PLC compatible
Machine diagnostics
Process control
Industrial automation
Pneumatic systems
Low-pressure hydraulics
Pumps
Compressors
Process machinery
Pressure monitoring
Pressure alarms
Machine diagnostics
Equipment protection
Preventive maintenance
PLC automation
Process control
Industrial machinery
Industrial pumps
Automation systems
| Specification | Details |
|---|---|
| Model | PT9544 |
| Order code | PT-010-RBG14-B-DVG/US//W |
| Pressure type | Relative |
| Measuring range | 0…10 bar |
| Equivalent | 0…145 psi |
| Output | 0…10 V |
| Process connection | G 1/4 |
| Supply | 16…36 V DC |
| Current consumption | <6 mA |
| Housing | Stainless steel |
| Media | Liquids/gases |
| Medium temperature | −25…90 °C |
| Pressure rating | High |
| Burst capability | High |
| Repeatability | < ±0.1 % |
| Characteristics deviation | < ±1.0 % |
| Linearity | < ±0.25 % BFSL |
| Hysteresis | < ±0.2 % |
| Long-term stability | < ±0.1 % |
| Temperature coefficient | Low |
| Protection | IP67/IP69K |
| Shock resistance | High |
| Vibration resistance | High |
| Application | Industrial |
