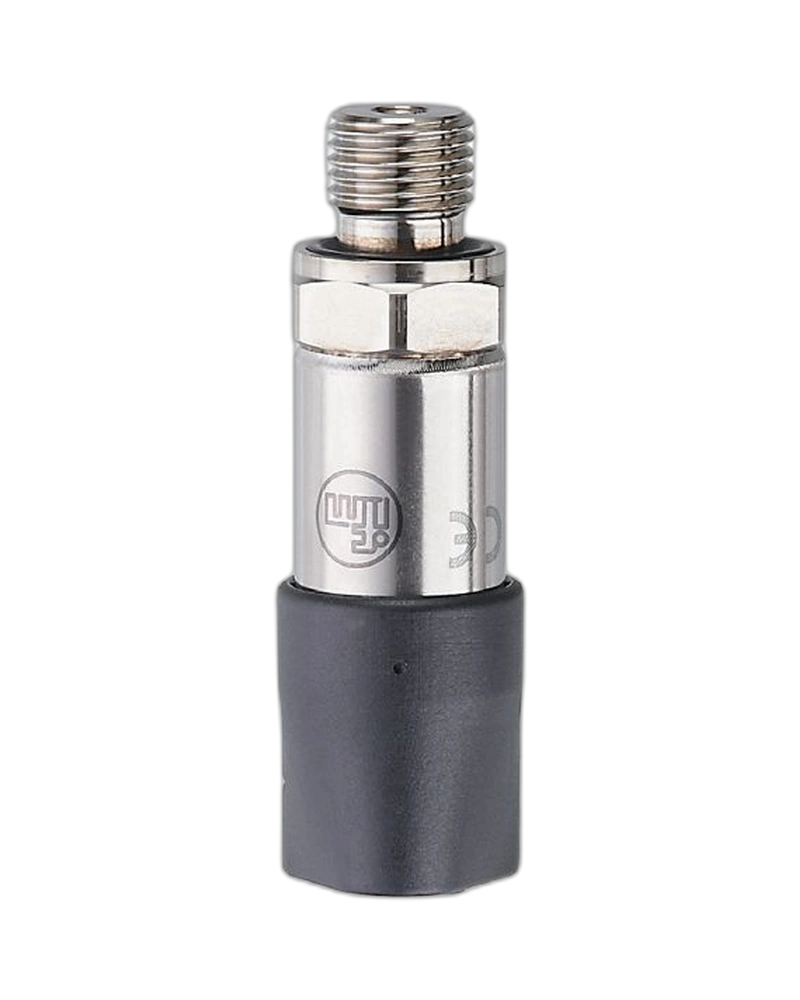

PT700E is a compact pressure transmitter designed for reliable pressure measurement in industrial and mobile equipment. Its 0–400 bar range is suitable for demanding hydraulic applications. The transmitter provides a proportional analogue signal for connection to machine-control systems. Its robust stainless-steel housing supports operation in harsh environments. The compact form factor allows installation where available space is limited.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PT700E continuously measures relative system pressure and provides a stable analogue output. The G 1/4 process connection supports straightforward installation. Its robust construction provides resistance to vibration and mechanical shock. The transmitter can be integrated with PLCs and industrial controllers. It is suitable for continuous pressure monitoring and machine protection.
0…400 bar range
4–20 mA analogue output
Relative pressure
G 1/4 external thread
DEUTSCH connector
Stainless-steel housing
Compact construction
High repeatability
Low linearity error
Low hysteresis
Long-term stability
Fast response
IP67/IP69K
Overload protection
Short-circuit protection
Reverse-polarity protection
High shock resistance
High vibration resistance
Hydraulic compatibility
PLC integration
Hydraulic systems
Mobile machinery
Construction equipment
Agricultural equipment
Industrial hydraulics
Pumps
Compressors
Hydraulic power units
Pressure monitoring
Machine diagnostics
Pressure control
Equipment protection
Preventive maintenance
PLC automation
Mobile control
| Specification | Details |
|---|---|
| Model | PT700E |
| Order code | PT-400-SEG14-A-ZVG/DE |
| Product type | Pressure transmitter |
| Pressure type | Relative |
| Measuring range | 0…400 bar |
| Equivalent | 0…5800 psi |
| Output | Analogue |
| Process connection | G 1/4 |
| Connector | DEUTSCH |
| Housing | Stainless steel |
| Housing design | Compact cylindrical |
| Supply | DC |
| Repeatability | High |
| Linearity | Low error |
| Hysteresis | Low |
| Long-term stability | High |
| Response | Fast |
| Protection | IP67/IP69K |
| Shock resistance | High |
| Vibration resistance | High |
| Overload | Yes |
| Short circuit | Yes |
| Reverse polarity | Yes |
| Application | Mobile/industrial |
