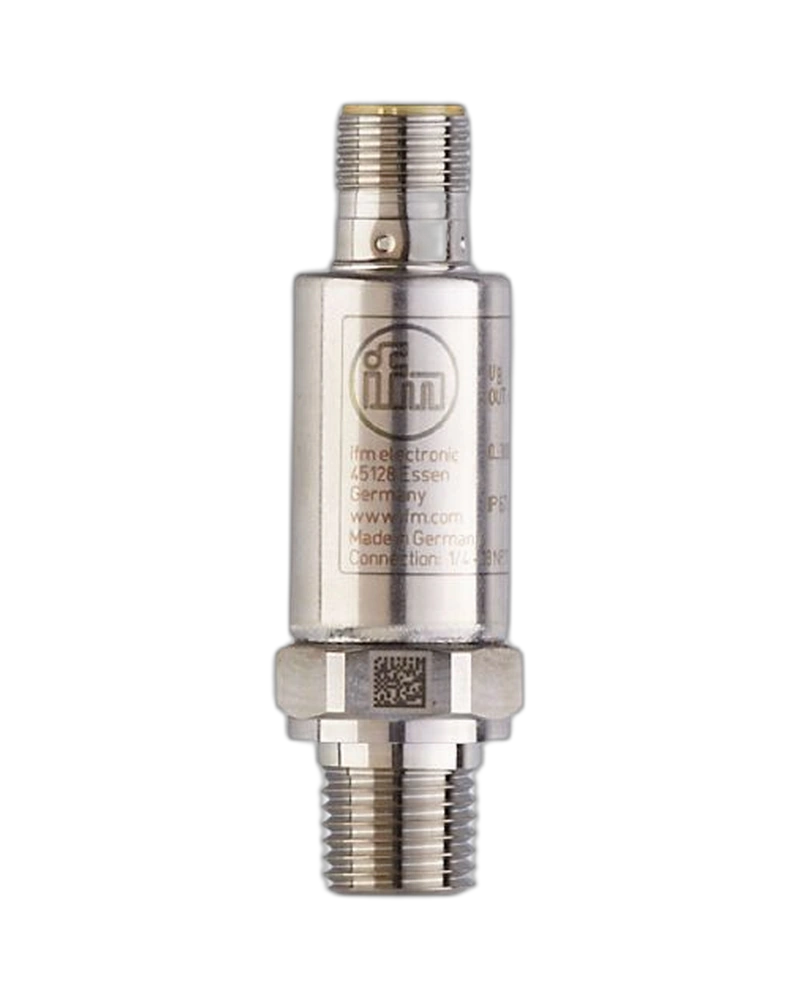

PT5760 is a high-pressure transmitter designed for demanding mobile hydraulic applications. It provides a 0–600 bar measuring range and a proportional 4–20 mA output. The stainless-steel cylindrical housing provides high mechanical strength and resistance to harsh environments. It is designed to withstand 500 g shock and 20 g vibration. The transmitter supports a minimum of 60 million pressure cycles for long service life.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PT5760 provides reliable relative pressure measurement in high-pressure hydraulic systems. The G 1/4 external thread provides secure process installation. Its 2 ms analogue response allows fast detection of pressure changes. High repeatability, low hysteresis and low linearity deviation support measurement stability. IP67 and IP69K protection makes it suitable for demanding machine environments.
The 600 bar range is suitable for high-pressure hydraulic circuits. The transmitter is designed for repeated pressure loading. Its 60-million-cycle rating supports long-term machine operation. The integrated restrictor helps stabilise the pressure measurement. Strong shock and vibration resistance makes it suitable for mobile machinery.
0…600 bar range
4–20 mA output
G 1/4 external thread
DEUTSCH connector
2 ms response
60 million pressure cycles
500 g shock resistance
20 g vibration resistance
IP67/IP69K
Stainless steel
17-4 PH wetted material
High repeatability
Low hysteresis
Low linearity deviation
Long-term stability
Integrated restrictor
Reverse-polarity protection
Overload protection
Short-circuit protection
Mobile hydraulic design
High-pressure hydraulics
Mobile machinery
Construction equipment
Agricultural machinery
Heavy equipment
Hydraulic power units
Hydraulic pumps
Pressure control
Machine diagnostics
Equipment protection
Preventive maintenance
Pressure alarms
PLC automation
Mobile machine control
Industrial hydraulics
| Specification | Details |
|---|---|
| Model | PT5760 |
| Order code | PT-600-SEG14-A-ZVG/DE |
| Pressure type | Relative |
| Measuring range | 0…600 bar |
| Equivalent | 0…8700 psi / 0…60 MPa |
| Output | 4–20 mA |
| Process connection | G 1/4 external |
| Connector | DEUTSCH |
| Housing | Cylindrical |
| Dimensions | Ø19 × 71.5 mm |
| Weight | Approx. 62.5 g |
| Materials | Stainless steel / PPS |
| Wetted material | 17-4 PH stainless steel |
| Repeatability | < ±0.05 % span |
| Characteristics deviation | < ±0.8 % span |
| Linearity | < ±0.25 % BFSL |
| Hysteresis | < ±0.2 % span |
| Long-term stability | < ±0.1 % span |
| Response time | 2 ms |
| Ambient temperature | −40…100 °C |
| Storage temperature | −40…100 °C |
| Protection | IP67/IP69K |
| Shock resistance | 500 g / 1 ms |
| Vibration resistance | 20 g / 10…2000 Hz |
