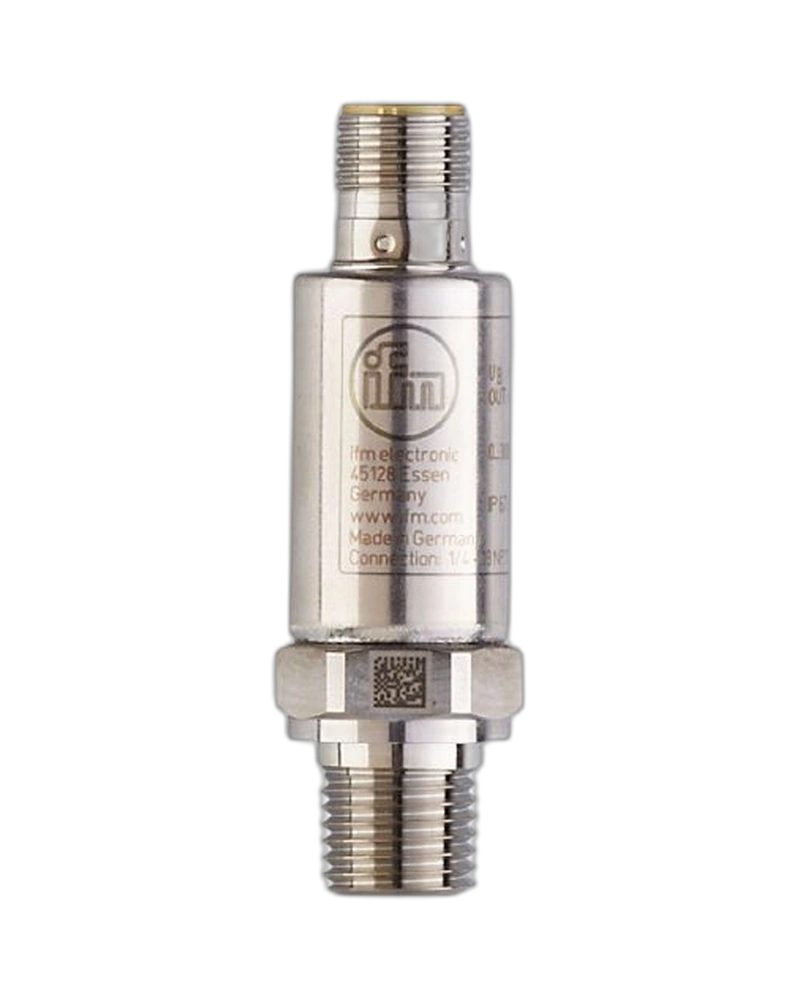

PT5704 is a compact 0–10 bar pressure transmitter designed for low-pressure system monitoring. It is suitable for mobile machinery where reliable pressure information is required in a small installation space. The transmitter provides a 4–20 mA analogue output for controllers and PLC systems. Its robust stainless-steel construction provides high resistance to shock and vibration. The DEUTSCH connector enables quick integration into vehicle and machine wiring.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PT5704 provides continuous relative pressure measurement in hydraulic and pneumatic applications. The 0–10 bar range is suited to low-pressure monitoring requirements. Its G 1/4 external thread enables secure installation into compatible pressure systems. The transmitter is designed for high repeatability and low linearity error. Its compact housing supports installation in restricted spaces.
0…10 bar range
4–20 mA output
Relative pressure
G 1/4 external thread
DEUTSCH connector
Stainless-steel housing
Compact body
High shock resistance
High vibration resistance
High repeatability
Low linearity error
Low hysteresis
Long-term stability
Fast response
IP67/IP69K
Integrated restrictor
Overload protection
Short-circuit protection
Reverse-polarity protection
Mobile-machine compatible
Low-pressure hydraulics
Pneumatic systems
Mobile machinery
Construction machinery
Agricultural machinery
Industrial machines
Pumps
Compressors
Pressure control
Pressure alarms
Machine diagnostics
Equipment protection
Preventive maintenance
PLC automation
Mobile control systems
| Specification | Details |
|---|---|
| Model | PT5704 |
| Order code | PT-010-SEG14-A-ZVG/DE |
| Measuring range | 0…10 bar |
| Equivalent | 0…145 psi |
| Pressure type | Relative |
| Output | 4–20 mA |
| Process connection | G 1/4 |
| Connector | DEUTSCH |
| Housing | Stainless steel |
| Design | Cylindrical |
| Supply | DC |
| Response | Fast |
| Repeatability | High |
| Linearity | Low deviation |
| Hysteresis | Low |
| Long-term stability | High |
| Protection | IP67/IP69K |
| Shock resistance | High |
| Vibration resistance | High |
| Restrictor | Integrated |
| Overload | Yes |
| Short circuit | Yes |
| Reverse polarity | Yes |
| Application | Mobile machinery |
