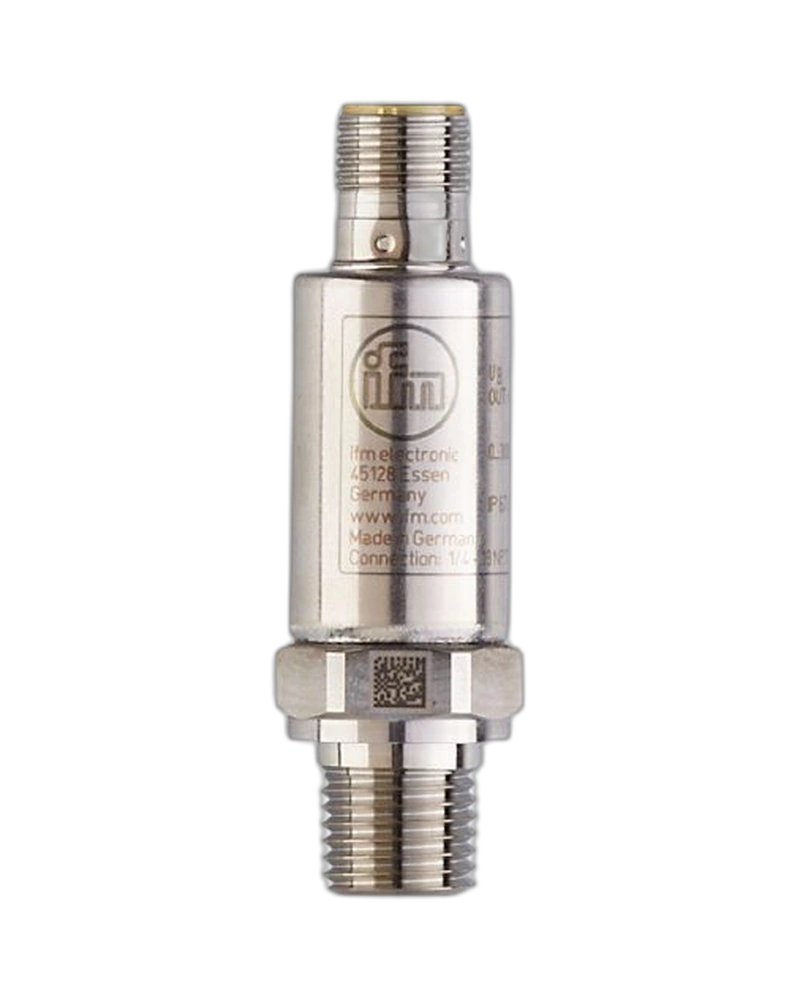

PT5703 is a compact 0–25 bar pressure transmitter designed for low- and medium-pressure applications. It provides a 4–20 mA analogue output for industrial and mobile automation systems. The stainless-steel body offers excellent resistance to vibration and mechanical stress. Its small dimensions simplify installation in restricted machine areas. The transmitter provides dependable pressure monitoring for hydraulic and pneumatic equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PT5703 continuously measures relative pressure and generates a proportional analogue output. The 0–25 bar range is suitable for low-pressure hydraulic and pneumatic systems. The G 1/4 external thread provides secure mechanical installation. Its DEUTSCH connector is suitable for mobile-machine electrical systems. High repeatability supports reliable measurement over long operating periods.
0…25 bar range
4–20 mA
Relative pressure
G 1/4 connection
DEUTSCH connector
Stainless steel
Compact housing
Fast response
High repeatability
Low hysteresis
Low linearity error
Long-term stability
IP67/IP69K
High shock resistance
High vibration resistance
Integrated restrictor
Overload protection
Short-circuit protection
Reverse polarity protection
Mobile-machine design
Low-pressure hydraulics
Pneumatic systems
Mobile machinery
Industrial machines
Pumps
Compressors
Pressure monitoring
Pressure alarms
Machine diagnostics
Equipment protection
Preventive maintenance
PLC automation
Machine control
Hydraulic circuits
Process equipment
| Specification | Details |
|---|---|
| Model | PT5703 |
| Order code | PT-025-SEG14-A-ZVG/DE |
| Pressure type | Relative |
| Measuring range | 0…25 bar |
| Equivalent | 0…362 psi |
| Output | 4–20 mA |
| Process connection | G 1/4 |
| Electrical connection | DEUTSCH |
| Housing | Stainless steel |
| Housing shape | Cylindrical |
| Supply | DC |
| Response | Fast |
| Repeatability | High |
| Linearity | Low deviation |
| Hysteresis | Low |
| Long-term stability | High |
| Protection | IP67/IP69K |
| Shock resistance | High |
| Vibration resistance | High |
| Restrictor | Integrated |
| Overload | Yes |
| Short circuit | Yes |
| Reverse polarity | Yes |
| Application | Mobile/industrial |
