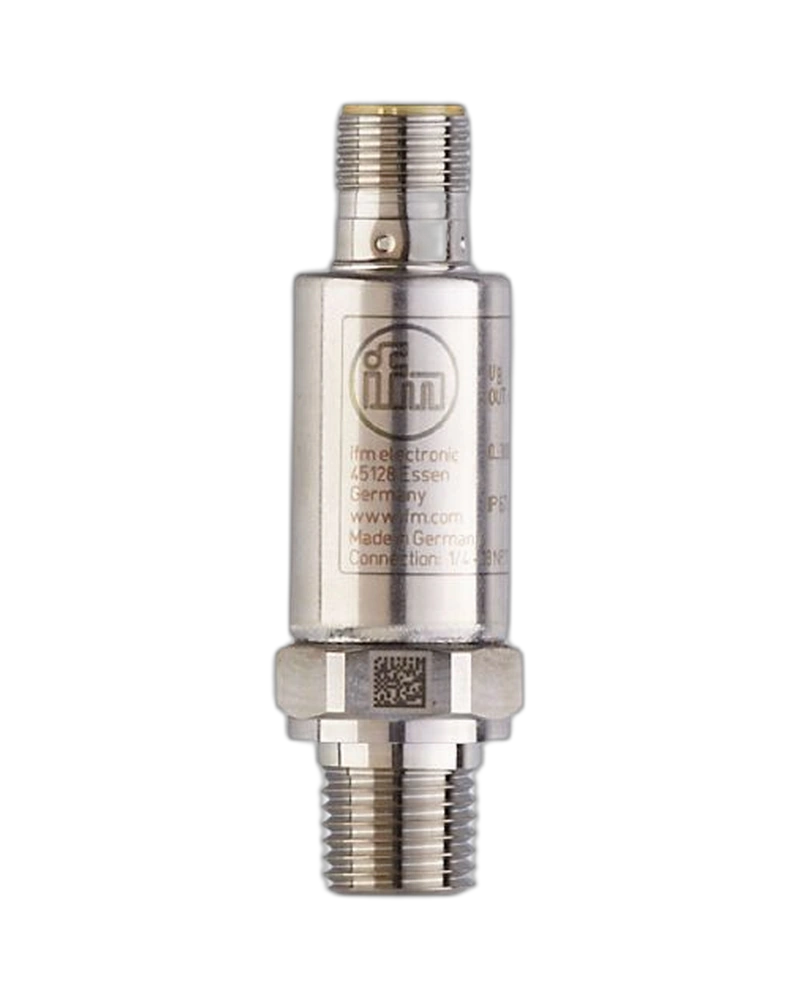

PT5702 is a compact 100 bar pressure transmitter for hydraulic and industrial pressure monitoring. It provides a 4–20 mA analogue signal for direct integration with machine controllers. The stainless-steel housing is designed to withstand mechanical shock and vibration. Its compact size makes it suitable for restricted installation spaces. The transmitter provides stable pressure measurement for continuous machine operation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PT5702 measures relative system pressure continuously across a 0–100 bar range. Pressure information is converted into a proportional current output for automation systems. The G 1/4 process connection allows secure installation into compatible pressure circuits. The DEUTSCH connector provides dependable electrical connection. The transmitter is suitable for mobile machinery and industrial hydraulic applications.
The 4–20 mA output is compatible with standard industrial control equipment. Pressure values can be used for alarms, control loops and machine diagnostics. The fast response helps identify pressure fluctuations. High repeatability supports consistent machine operation. The transmitter can be integrated into PLC-based monitoring systems.
0…100 bar range
4–20 mA output
Relative pressure measurement
G 1/4 external thread
DEUTSCH connector
Stainless-steel housing
Compact construction
High shock resistance
High vibration resistance
High repeatability
Low linearity deviation
Low hysteresis
Long-term stability
Fast pressure response
Integrated restrictor
IP67/IP69K
Overload protection
Short-circuit protection
Reverse-polarity protection
PLC compatible
Hydraulic systems
Mobile machinery
Construction equipment
Agricultural machinery
Pumps
Compressors
Hydraulic power units
Industrial machinery
Pressure monitoring
Machine diagnostics
Pressure alarms
Equipment protection
Preventive maintenance
PLC automation
Mobile control systems
| Specification | Details |
|---|---|
| Model | PT5702 |
| Order code | PT-100-SEG14-A-ZVG/DE |
| Measuring range | 0…100 bar |
| Equivalent | 0…1450 psi |
| Pressure type | Relative |
| Output | 4–20 mA |
| Process connection | G 1/4 |
| Connector | DEUTSCH |
| Housing | Stainless steel |
| Housing design | Cylindrical |
| Supply | DC |
| Response | Fast |
| Repeatability | High |
| Linearity | Low error |
| Hysteresis | Low |
| Long-term stability | High |
| Protection | IP67/IP69K |
| Shock resistance | High |
| Vibration resistance | High |
| Restrictor | Integrated |
| Overload protection | Yes |
| Short-circuit protection | Yes |
| Reverse polarity | Yes |
| Application | Mobile hydraulics |
