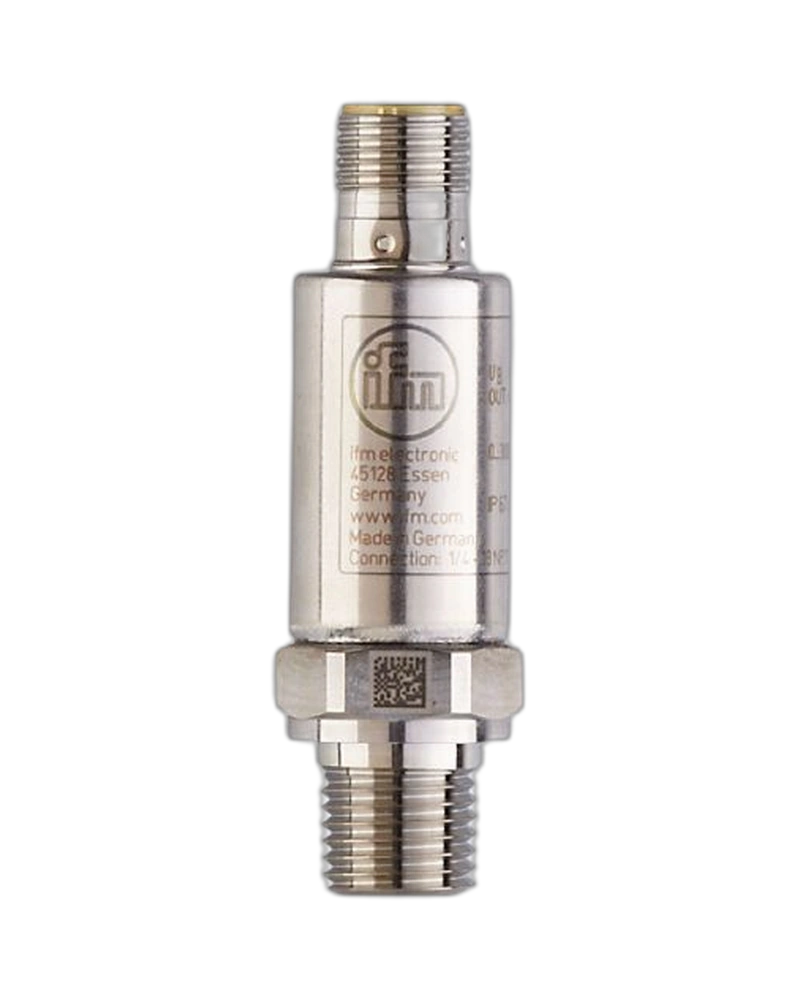

PT5701 is a compact pressure transmitter designed for pressure monitoring in mobile hydraulic machinery. Its 0–250 bar measuring range is suitable for medium- and high-pressure hydraulic circuits. The transmitter provides a proportional 4–20 mA output for machine controllers and automation systems. Its stainless-steel body provides excellent mechanical durability. The DEUTSCH connector supports reliable electrical integration in mobile equipment.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PT5701 continuously measures relative system pressure and converts it into a standard analogue signal. The compact design allows installation where available space is limited. Its G 1/4 threaded process connection provides secure mechanical mounting. The transmitter is designed for high repeatability and stable measurement performance. It is suitable for construction, agricultural and industrial mobile machinery.
The transmitter provides continuous information about hydraulic pressure conditions. The 0–250 bar range covers many hydraulic and machine-control applications. Its fast analogue response helps detect pressure changes quickly. The 4–20 mA signal can be processed by PLCs, controllers and monitoring systems. Continuous pressure measurement supports machine protection and preventive maintenance.
0…250 bar measuring range
4–20 mA analogue output
Relative pressure measurement
G 1/4 external thread
DEUTSCH connector
Stainless-steel housing
Compact cylindrical design
High shock resistance
High vibration resistance
High repeatability
Low linearity error
Low hysteresis
Long-term stability
Fast analogue response
Integrated pressure restrictor
IP67/IP69K protection
Overload protection
Short-circuit protection
Reverse-polarity protection
Mobile-machine compatible
Hydraulic machinery
Construction equipment
Agricultural machinery
Mobile vehicles
Hydraulic power units
Pumps
Compressors
Pressure monitoring
Pressure alarms
Machine diagnostics
Equipment protection
Preventive maintenance
PLC control
Mobile automation
Industrial hydraulics
| Specification | Details |
|---|---|
| Model | PT5701 |
| Order code | PT-250-SEG14-A-ZVG/DE |
| Product type | Pressure transmitter |
| Pressure type | Relative |
| Measuring range | 0…250 bar |
| Equivalent range | 0…3625 psi |
| Output | 4–20 mA |
| Process connection | G 1/4 external |
| Electrical connection | DEUTSCH |
| Housing | Cylindrical |
| Housing material | Stainless steel |
| Wetted material | Stainless steel |
| Supply | DC industrial supply |
| Response | Fast analogue response |
| Repeatability | High |
| Linearity | Low deviation |
| Hysteresis | Low |
| Long-term stability | High |
| Protection | IP67/IP69K |
| Shock resistance | High |
| Vibration resistance | High |
| Pressure cycling | High cycle capability |
| Restrictor | Integrated |
| Application | Mobile hydraulics |
