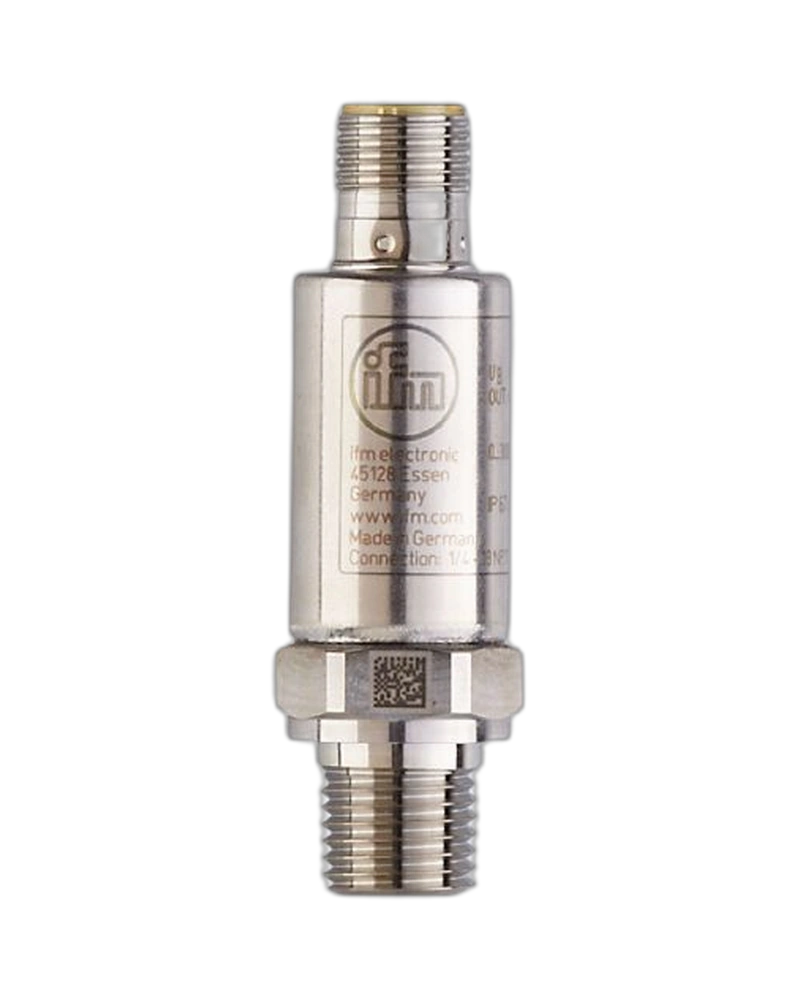

PT560E is a high-pressure transmitter designed for reliable system-pressure measurement in mobile machinery. It provides a 0–600 bar measuring range and a compact stainless-steel housing. The transmitter is designed for high shock and vibration resistance. Its compact construction allows use where installation space is restricted. Long-term stability, repeatability and a service life exceeding 60 million pressure cycles support demanding machine applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
PT560E is designed for high-pressure hydraulic systems and mobile equipment. The 0–600 bar range supports demanding hydraulic applications. Its analogue output provides pressure information to machine controllers. The robust stainless-steel construction supports harsh environments. Its compact design allows installation close to pressure sources.
The transmitter provides high repeatability and low characteristic deviation. Fast response allows monitoring of dynamic pressure changes. The pressure sensor is designed for long-term stability. The device can withstand extensive pressure cycling. This makes PT560E suitable for demanding mobile hydraulic systems.
0–600 bar
4–20 mA
Relative pressure
G 1/4 process connection
Stainless steel
Compact housing
60-million pressure-cycle life
High shock resistance
High vibration resistance
Low linearity error
High repeatability
IP67/IP69K
Overload protection
Short-circuit protection
Fast response
Mobile-machine design
Long-term stability
Pressure monitoring
PLC integration
Hydraulic compatibility
Mobile hydraulics
Construction machinery
Agricultural machinery
Hydraulic power units
Heavy machinery
Industrial hydraulics
Pumps
Compressors
Pressure control
Machine diagnostics
Equipment protection
Preventive maintenance
Hydraulic monitoring
PLC automation
Mobile control systems
| Specification | Details |
|---|---|
| Model | PT560E |
| Order code | PT-600-SEG14-A-ZVG/US |
| Pressure type | Relative |
| Measuring range | 0…600 bar |
| Equivalent | 0…8700 psi |
| Output | 4–20 mA |
| Supply | Model dependent |
| Process connection | G 1/4 |
| Housing | Stainless steel |
| Wetted material | Stainless steel |
| Protection | IP67/IP69K |
| Repeatability | High |
| Linearity | Low error |
| Long-term stability | High |
| Pressure cycles | >60 million |
| Response | Fast |
| Shock resistance | High |
| Vibration resistance | High |
| Overload protection | Yes |
| Short-circuit protection | Yes |
| Compact design | Yes |
| Mobile-machine use | Yes |
| Installation | Threaded |
| Integration | Machine controller |
| Application | High-pressure hydraulics |
